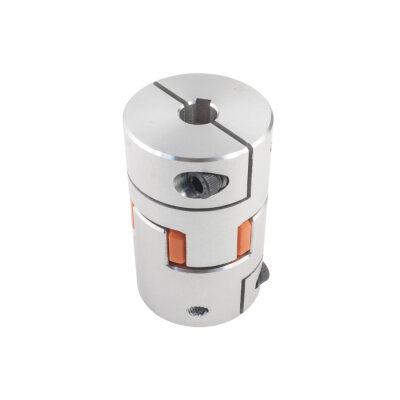

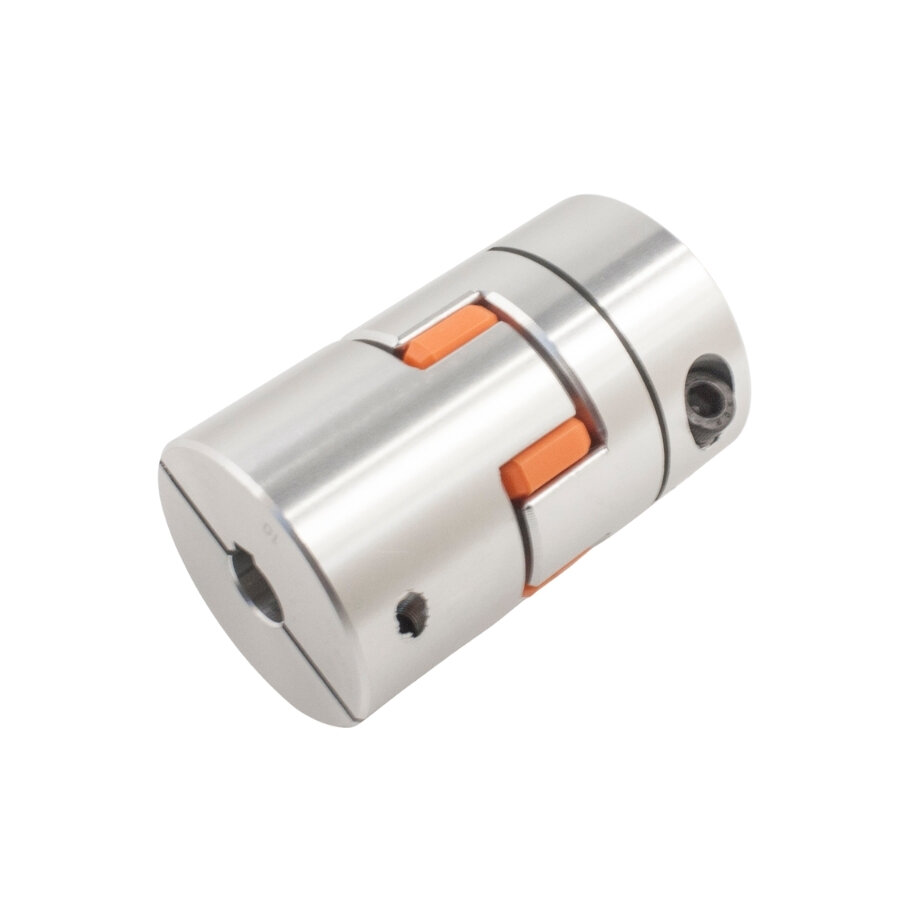

D40L66 Aluminum Coupling 10mmx10mm

They are also called Elastomer Couplings because they contain plastic or rubber material between the aluminum couple. Elastomeric couplings offer shock absorption. This Flexible Coupling, with a 40mm outer diameter and a length of 66mm, is a machined aluminum coupling.

This type of compression coupling does not damage the shafts. It offers very easy connection and disconnection. They are useful in reducing angular and axial misalignment errors.

Avoid using elastomeric couplings in environments where they will be exposed to high temperatures or UV light, as operating in these environments will significantly reduce the coupling's life.

Application Areas

Stepper Motors
Servo Motors
3D Printer Systems
CNC Projects

Technical Specifications

Material: Aluminum
Length: 66mm
Outer Diameter: 40mm
Inner Diameter 1: 10mm
Inner Diameter 2: 10mm
