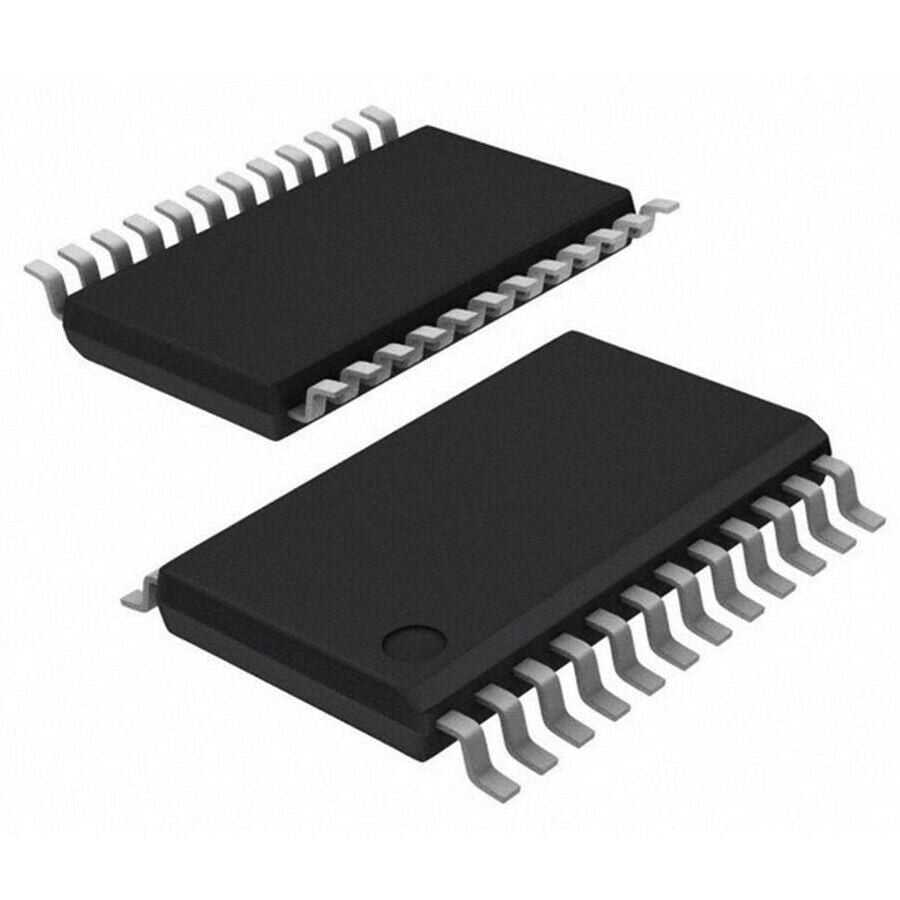

DAC7760IPWPR HTSSOP-24 Smd Programmable D/A Converter

DACx760 are precision, fully integrated, 12-bit digital-to-analog converters (DACs) designed to meet the requirements of industrial process control applications. These devices

Can be programmed as a current output ranging from 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA; or as a 10% overrange voltage output in the range of 0 V to 5 V, 0 V to 10 V, ±5 V, or ±10 V (0 V to 5.5 V, 0 V to 11 V, ±5.5 V), or ±11V). Both current and voltage outputs can be activated simultaneously while being controlled by a single data register.

Usage Areas

Analog output module

CPU (PLC controller)

HVAC valve and actuator control

Stream transmitter

Other sensor transmitter

Actuator

Series	DAC7760IPWPR
Supply Voltage	2.7V - 5.5V
Interface Type	SPI
Number of Channels	1 Channel
Resolution	12 Bit

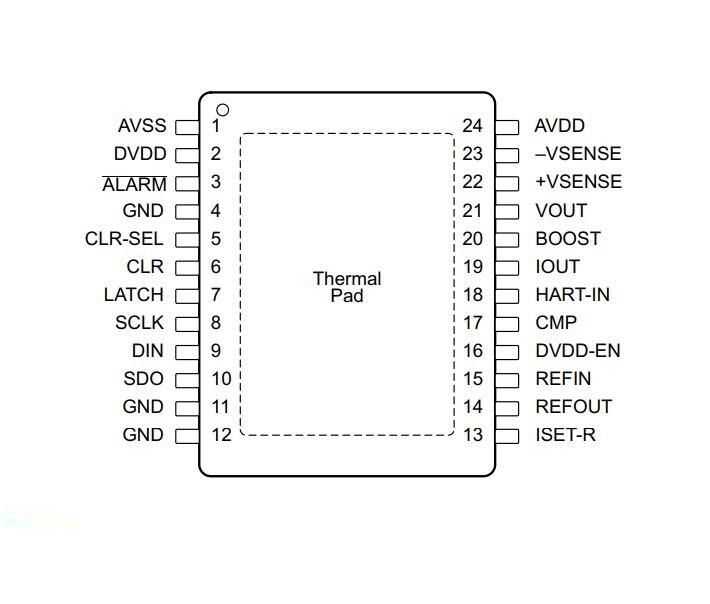

Number of pins	24 Pin
Package Type	HTSSOP-24

DAC7760IPWPR Datasheet
