DB-43 2-Way Car Audio Power Distribution Block

DB-43 2-Way Car Audio Power Distribution Block

The DB-43 2-Way Car Audio Power Distribution Block is designed to efficiently and conveniently distribute power from a single heavy-gauge power cable to two separate outputs. It is particularly suitable for use in car audio systems, amplifier installations, and applications requiring a shared power line for multiple devices.

The single input terminal on the distribution block accommodates 0, 2, and 4 AWG cables, while the two output terminals accommodate 4, 8, and 10 AWG cables. This makes it easy to split a large-gauge main power cable into multiple smaller-gauge power lines.

Applications

• Car audio system power distribution
• Car amplifier connections
• Powering multiple amplifiers from a single power cable
• Automotive electrical and electronic applications
• Truck and commercial vehicle electrical systems
• Power distribution in boats and marine vessels
• Distributing battery power to multiple points
• Custom vehicle electrical projects
• DC power distribution for RVs and similar vehicles

Specifications

• Number of Inputs: 1
• Number of Outputs: 2
• Input Cable Compatibility: 0 / 2 / 4 AWG
• Output Cable Compatibility: 4 / 8 / 10 AWG

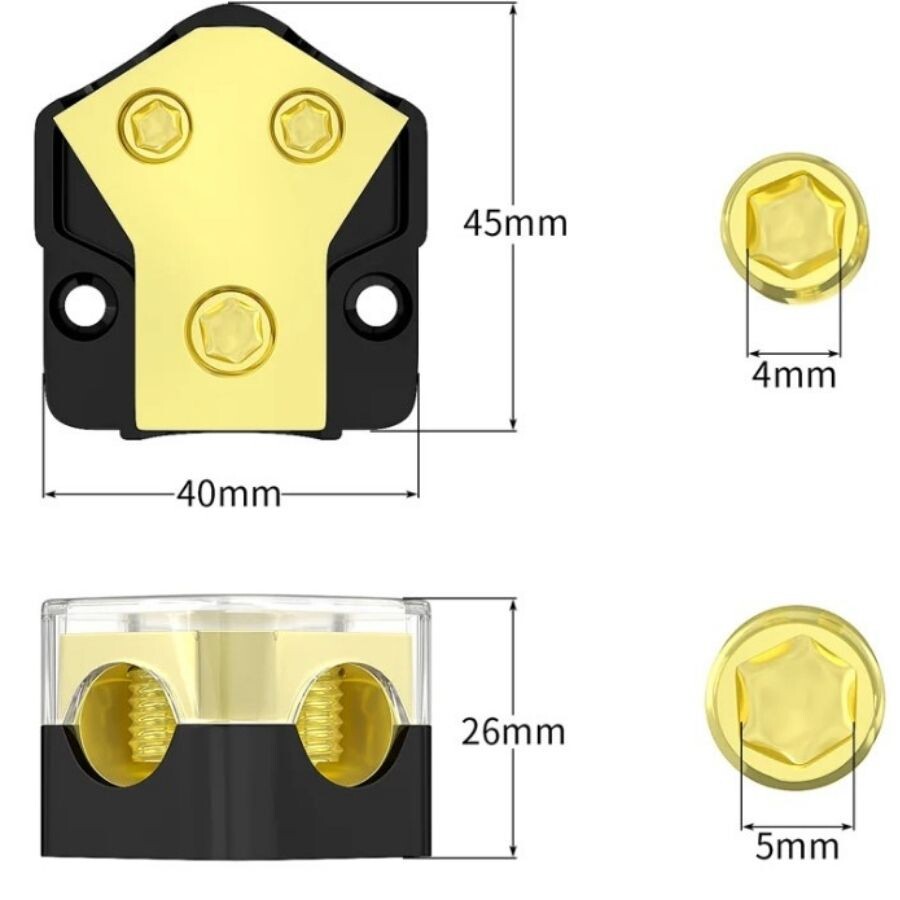

• Dimensions: 45mm x 40mm x 26mm
