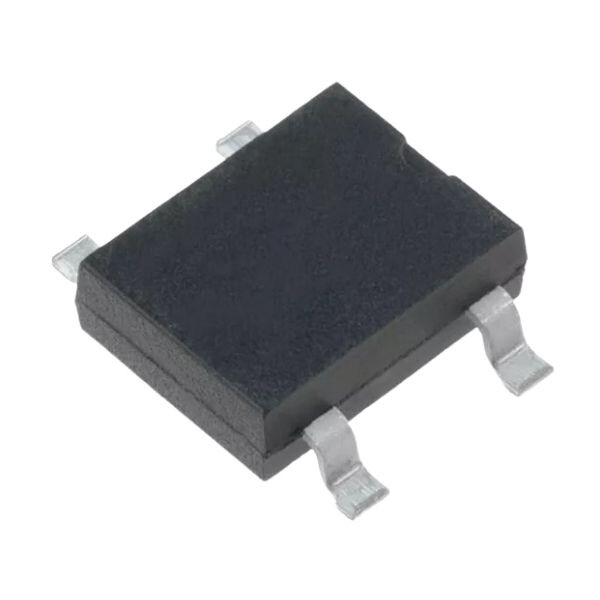

DB106S 1A 800V Bridge Diode

DB106S 1A 800V Bridge Diode

DB106S is a glass passivated bridge rectifier with 1000V repetitive peak reverse voltage and 1A continuous forward current capacity. It is an efficient and reliable diode with 40A high surge current capacity and 1.1V low forward voltage value. Ideal for surface mount (SMD) applications.

Technical Specifications

• Continuous forward current (IF): 1A
• Maximum forward voltage drop (VF): 1.1V (@1A)
• Maximum inrush current (IFSM): 40A (8.3ms half sine wave)
• Operating temperature range: -55°C ~ +150°C
