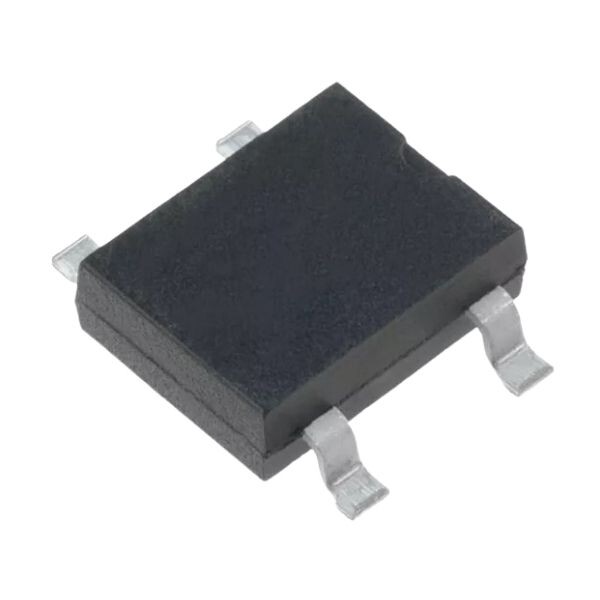

DB107S 1A 1000V Bridge Diode

DB107S 1A 1000V Bridge Diode

DB107S is a glass-passivated bridge rectifier with 1000V repetitive peak reverse voltage and 1A continuous forward current capacity. It is an efficient and reliable diode with a high surge current capacity of 50A and a low forward voltage value of 1.1V. It is ideal for surface mount (SMD) applications.

Technical Specifications

• Continuous forward current (IF): 1A
• Maximum forward voltage drop (VF): 1.1V (@1A)
• Maximum inrush current (IFSM): 50A
• Operating temperature range: -55°C ~ +150°C
