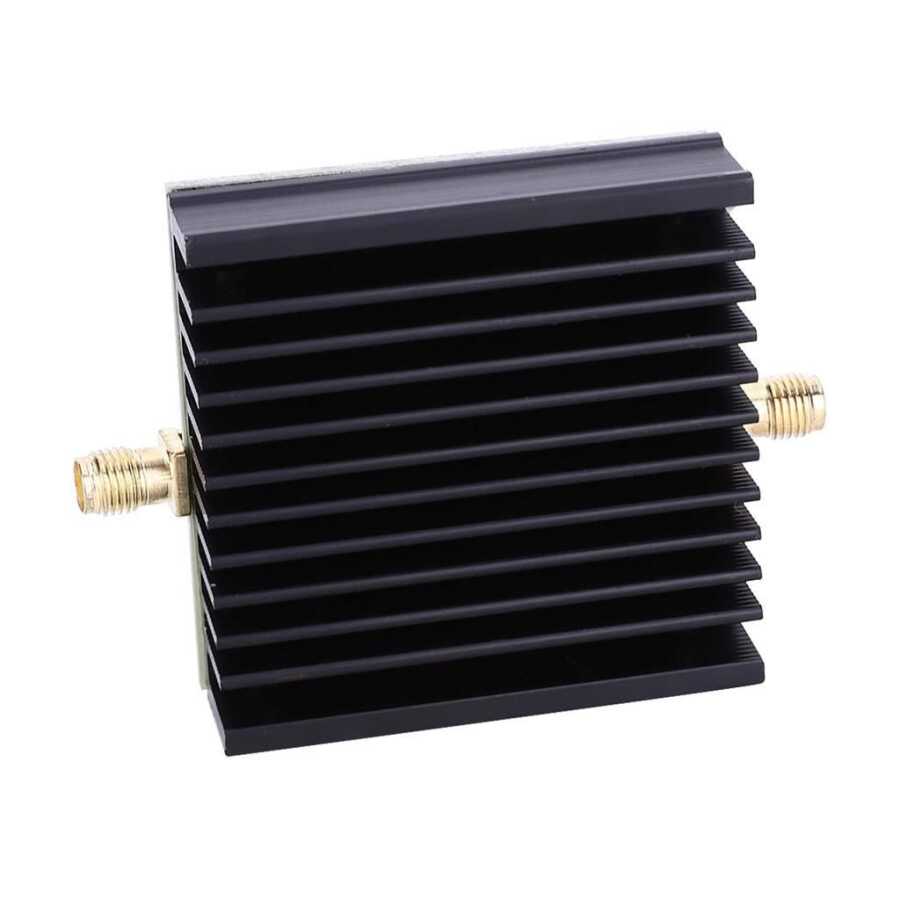

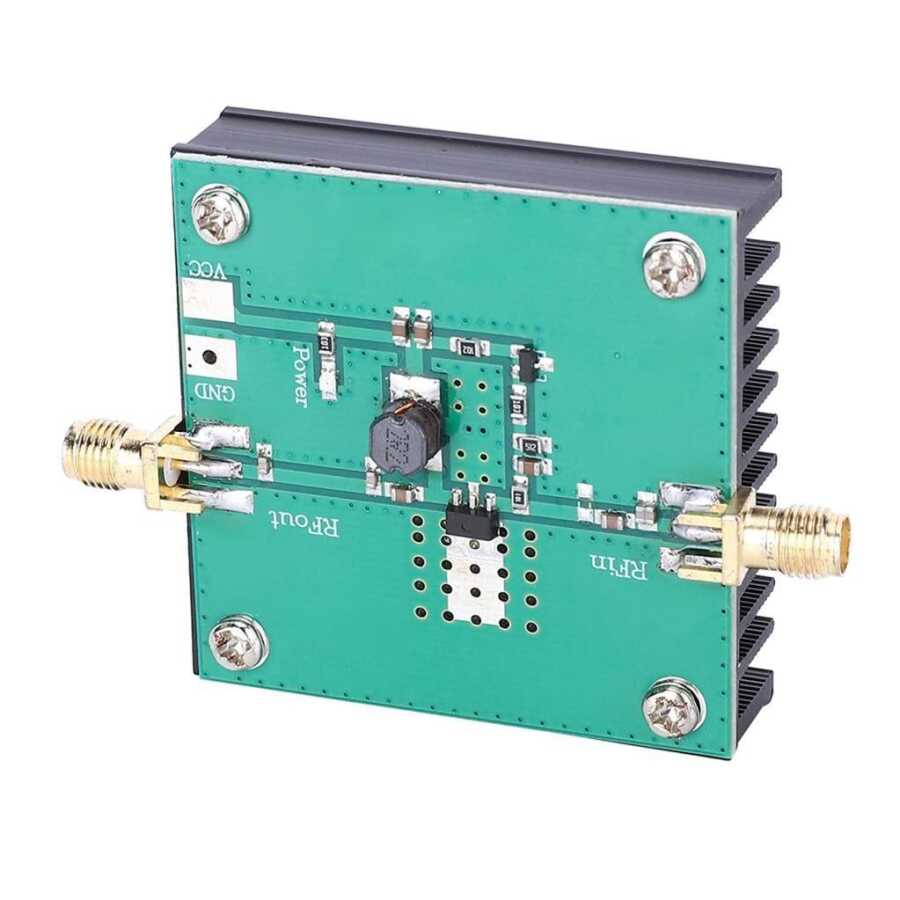

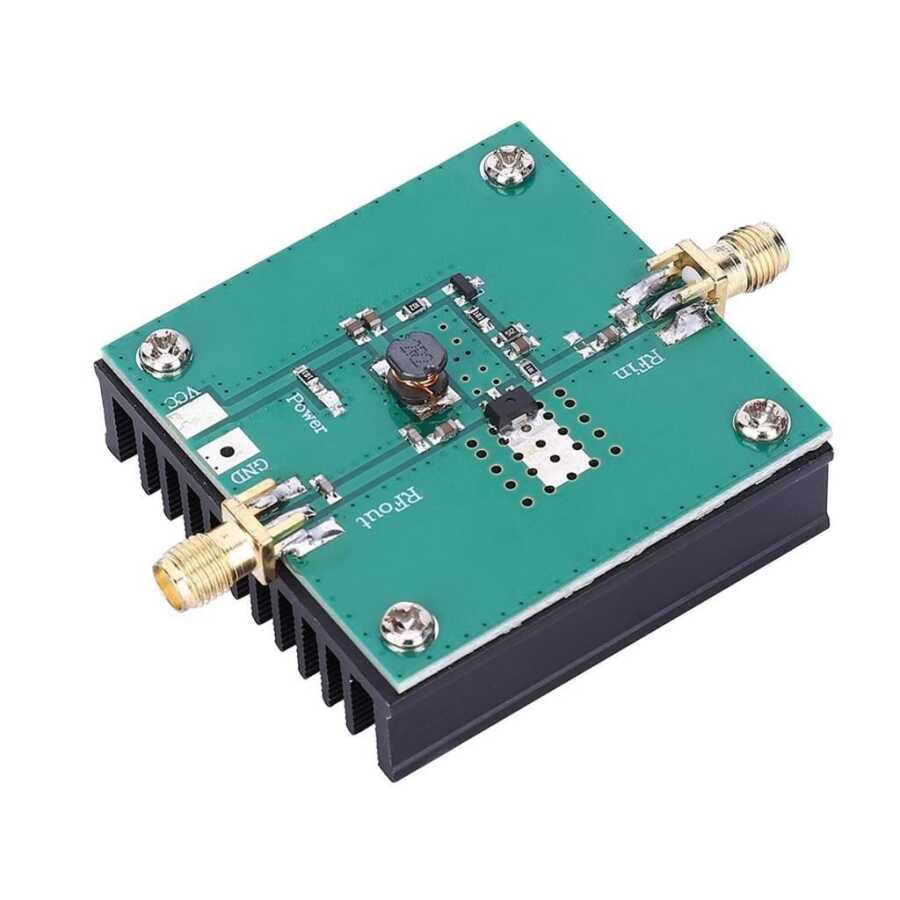

DC 5-7.2V 433MHz 5W RF Power Amplifier

Broadband RF small power Suitable for all kinds of 380-450MHz pickup uses, such as amplifier, wireless remote control, walkie-talkie and other pickup uses. The input can output 0.1W, 5.0W@7.2V power, the amplifier is equipped with heat sink, long-term stable operation.

Specifications

Input power: 0.1 W (20 dBm)

Maximum output:

2.5 W (34 dBm) 5.0V

5.0 W (37 dBm) 7.2V

8.0 W (39 dBm) 10, 0V (not recommended)

Operating voltage: 5 - 7.2V (DC)

Operating current: 1 - 2A (determined by output power)

RF connector : standard SMA female

Dimensions: 50 x 50 x 15 mm
