Name: DC 7-32V WiFi 2 Channel Relay Module - APP Controlled
Brand: Motorobit
SKU: RLK.DGR.01.000017
Price: 645.00 TRY
Availability: InStock

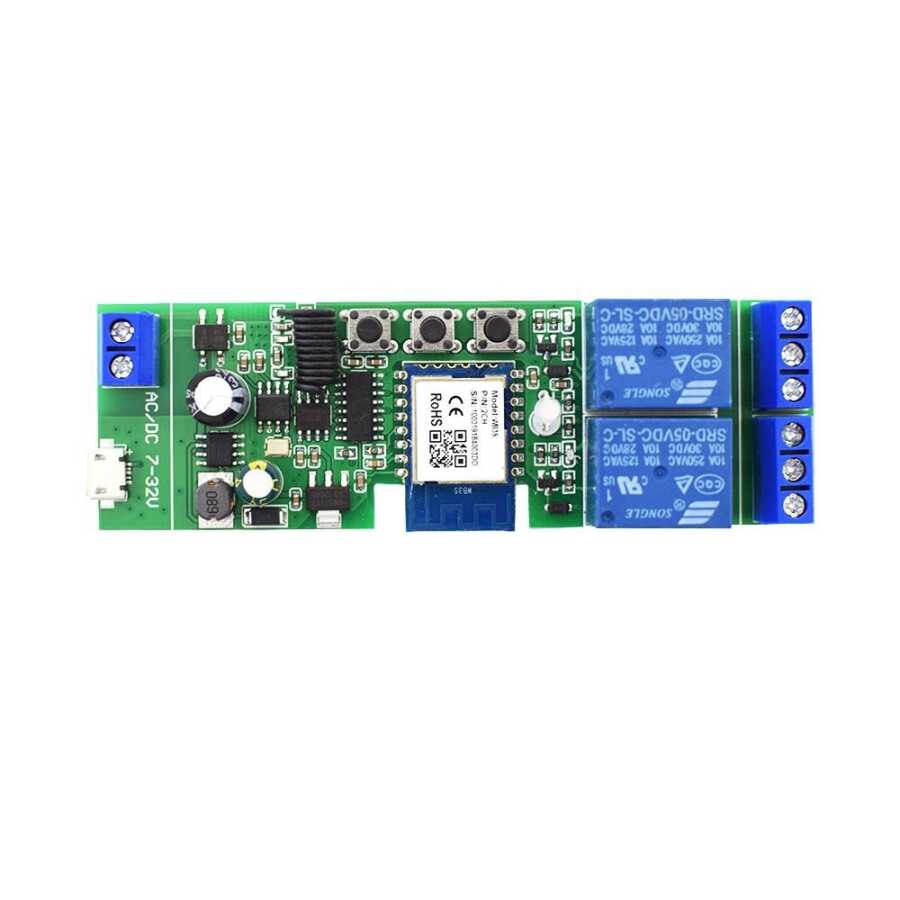

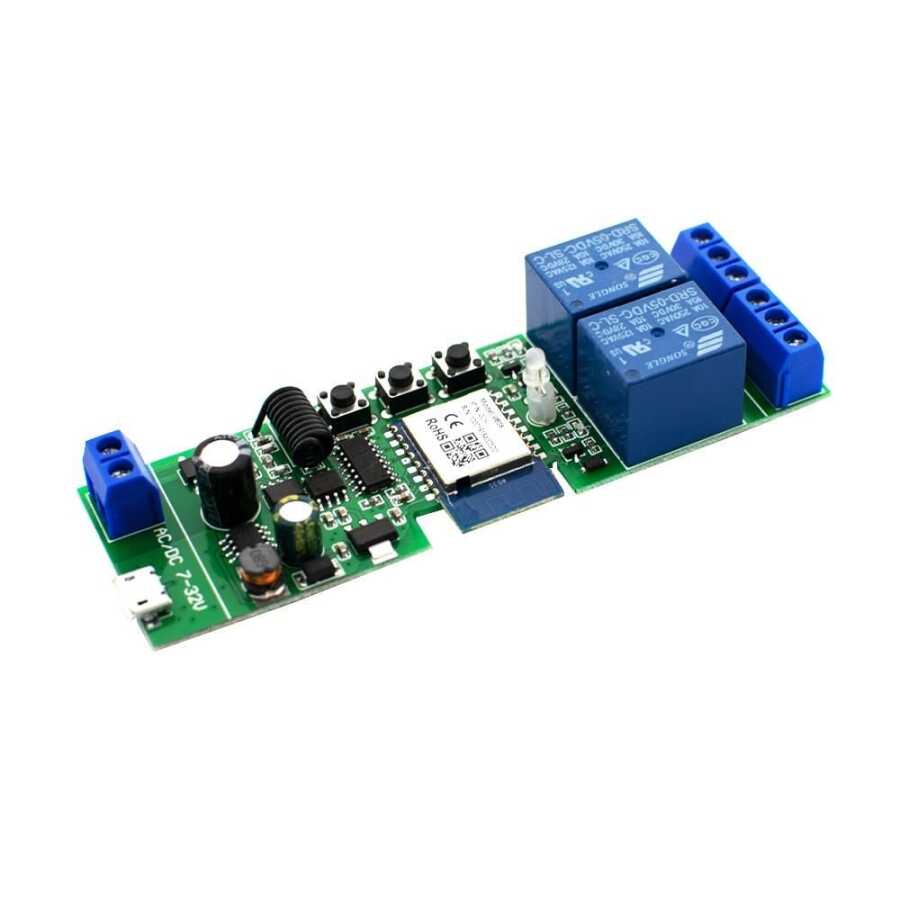

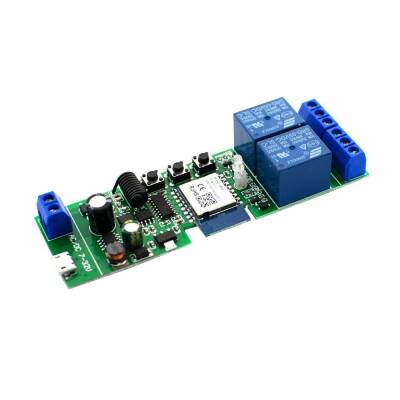

DC 7-32V WiFi 2 Channel Relay Module - APP Controlled

WiFi 2 Channel Relay Module is a low-cost, low-cost, It is an affordable device. You can control it via phone via wifi by downloading the Tuya Smart application on Android and IOS devices.

Supports inching/self-locking modes. In self-locking mode, customers can instantly remotely turn on/off connected devices. When in inching mode, customers can choose two wiring ways: 1s on and then auto off, 1s off and then auto on.

Features:

Operating voltage: 5V or 7-32V DC/AC
Product Size: 105x33x20mm
LED: 1 LED (respectively shows working mode, wifi status, relay on/off status shows)
Two input interfaces Supports controlling different voltage ranges
Card consumption: <1W
Standby current: 80mA
Maximum input current: 10A
Maximum Watt: 2200W
Relay maximum turn-on time: 15ms
Relay maximum release time: 5ms
Mobile Application: E-Welink
Application: access control, opening computer, garage door etc.
