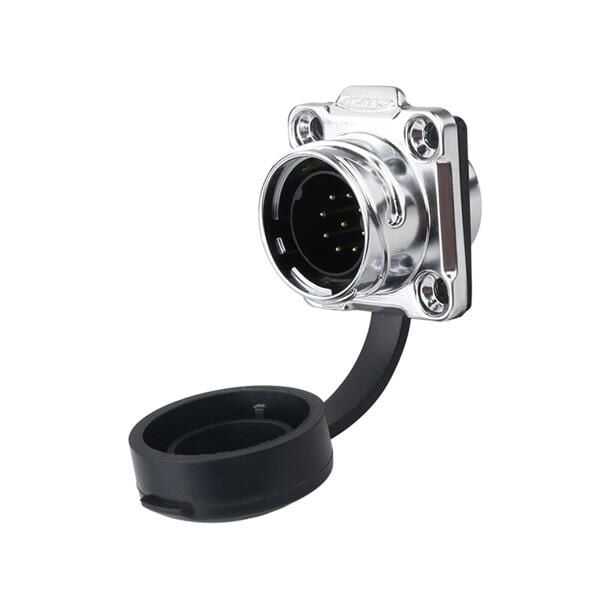

DH-20-C09SX-03-401 9-Pin Waterproof Connector - Male - 1

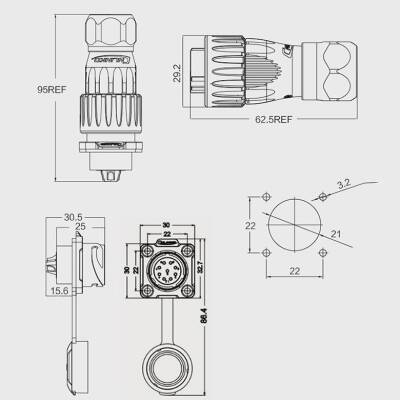

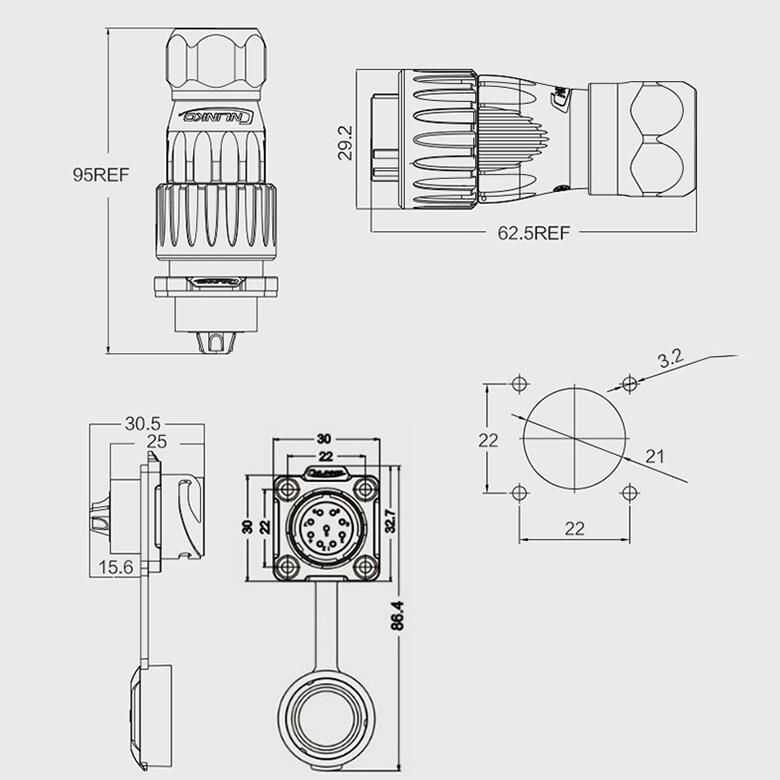

DH-20-C09SX-03-401 9-Pin Waterproof Connector - Male - 2
0 Comment

DH-20-C09SX-03-401 9-Pin Waterproof Connector - Male

Category: DH-20 Series Waterproof ConnectorBrand: CNLINKOProduct code : KOM.KNN.05.000252
330,60 TL + VAT
396,72 TL
330,60 TL + VAT
396,72 TL
Add to Favorite
 10+ Product
RecommendCommentAlarm Price

DH-20-C09SX-03-401 9-Pin Waterproof Connector - Male


DH-20 series waterproof connectors, unique wave spring design to meet customer's demand It offers standard card slot, rotary locking type and stylish design. Widely used in LED display, industrial equipment, stage lighting equipment and other fields.


Usage Areas

  • LED tri-proof lighting/outdoor lighting
  • LED display
  • Test measurement
  • Industrial control system
  • Control system
  • Power equipment

Technical Specifications

  • Alloy external protective material
  • Military standard three-point spiral locking
  • IP65/67 rating when connected
  • Cable specifications: 24-26 AWG
  • Diameter range: Φ5.5mm～Φ7mm
  • Contact diameter × number: Φ1.0×9
  • Rated Current (A): 5A
  • Operating voltage (AC.V.rms): 400V
  • Contact resistance: <5mΩ
  • Withstand Voltage (AC.V) 1 minute: 2500V
  • Insulation resistance: ＞500MΩ
  • Protection level: IP65/IP67
  • Operating temperature: -40℃～80℃
  • Connection mode: 1/4 Bayonet Connection Type
  • Mounting Cable: Soldering / Crimping
  • Copper pins: Copper alloy (gold-plated 4U)
  • Flammability rating: UL94-V0

DH-20 Series Waterproof Connector Datasheet
