DH-20-C12PE-03-001 12-Pin Waterproof Connector - Male
742,50
TL
+
VAT
891,00
TL
Notify Me When It Arrives
742,50
TL
+
VAT
891,00
TL
Add to Favorite
RecommendCommentAlarm Price

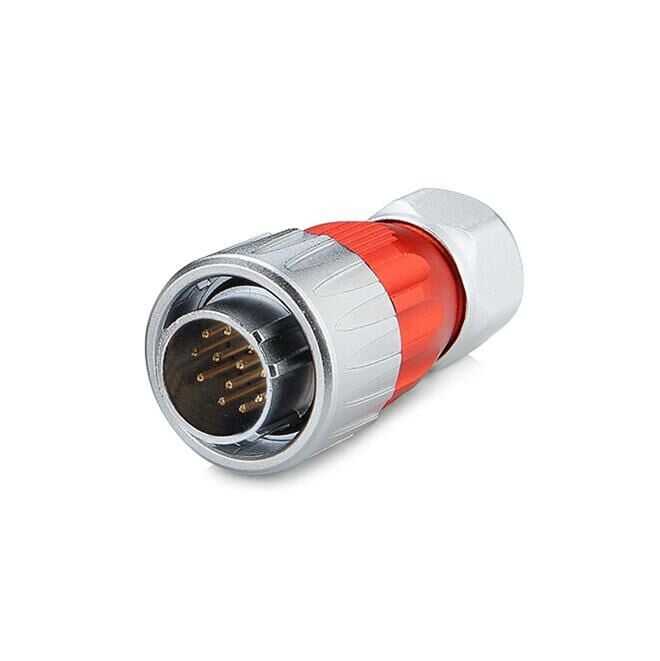

DH-20-C12PE-03-001 12-Pin Waterproof Connector - Male
DH-20 series waterproof connectors, unique waveform to meet customer's demand It features spring design, standard card slot, rotary locking type and stylish design. Widely used in LED display, industrial equipment, stage lighting equipment and other fields.
Usage Areas
- LED tri-proof lighting/outdoor lighting
- LED display
- Test measurement
- Industrial control system
- Control system
- Power equipment
Technical Specifications
- Alloy external protective material
- Military standard three-point spiral locking
- IP65/67 rating when connected
- Cable specifications: 24-26 AWG
- Diameter range: Φ5.5mm～Φ7mm
- Contact diameter × number: Φ1.0×12
- Rated Current (A): 5A
- Operating voltage (AC.V.rms): 400V
- Contact resistance: <5mΩ
- Withstand Voltage (AC.V) 1 minute: 2500V
- Insulation resistance: ＞500MΩ
- Protection level: IP65/IP67
- Operating temperature: -40℃～80℃
- Connection mode: 1 /4 Bayonet Connection Type
- Mounting Cable: Soldering / Crimping
- Copper pins: Copper alloy (gold coated 4U)
- Flammability rating: UL94-V0
