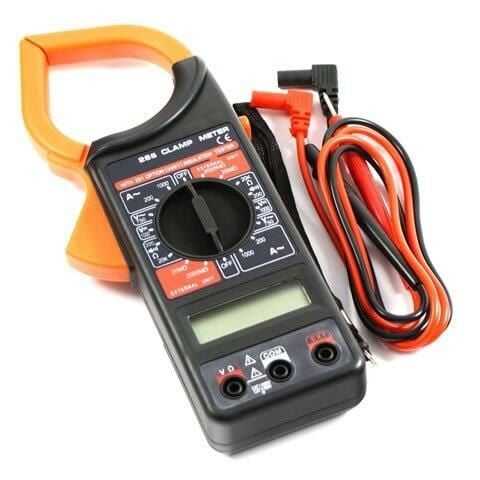

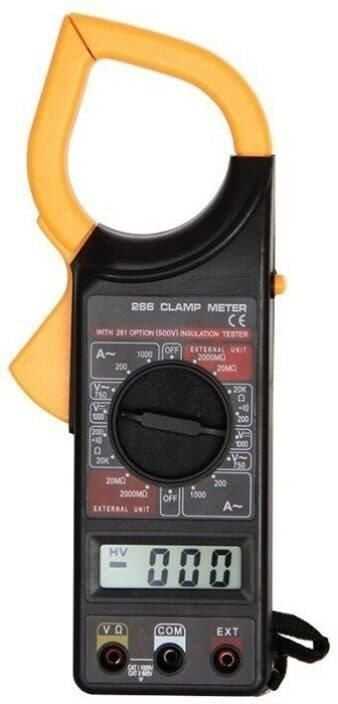

DT-266C DIGITAL CLAMP AMMETER CURRENT METER
Product Features
Display Type:
Only Digital< /DIV>
description
1999 3 1/2 digit large LCD display with maxium reading
Versatility of use with AC/DC voltage and resistance measurement
Hold for easy data reading / Clamp Multimeter
Plug-in insulation tester adapter 500VDC (optional)
Temperature measurement
Low power indicator
Technical Specifications
Function Level Accuracy
DC Voltage 200m-2-20-200-1000V ± (0.5% +1) SAFETY STANDARDS
AC Voltage 200-750V ± (1.2% +4) SAFETY STANDARDS
AC 20-200-1000A ± (2.5% +5) SAFETY STANDARDS
Resistance 200-20K-2M? (20M-2KM? if use DT-261) ± (1% +2) SAFETY STANDARDS
Temperature -40 ~ 750 oC with tablets ± (3% +2) SAFETY STANDARDS
< DIV>Diode Test Yes
Data hold Yes
Power Supply Popular 9V 6F22 Battery
Maximum Display 1999
Size 14×47mm Display
Product Net Weight about 350g
Products Size 230×70×37mm
