Digital I2C SHT30 Temperature and Humidity Sensor

Digital I2C SHT30 Temperature and Humidity Sensor

The Digital I2C SHT30 Temperature and Humidity Sensor is a precision measurement module based on the SHT30 sensor, designed to digitally measure ambient temperature and relative humidity.

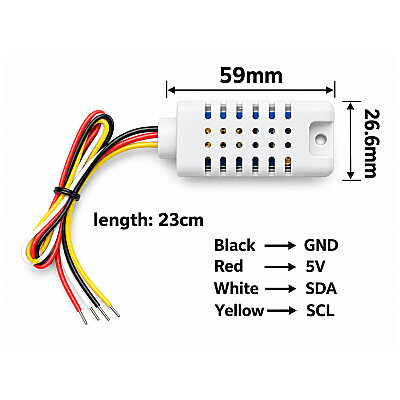

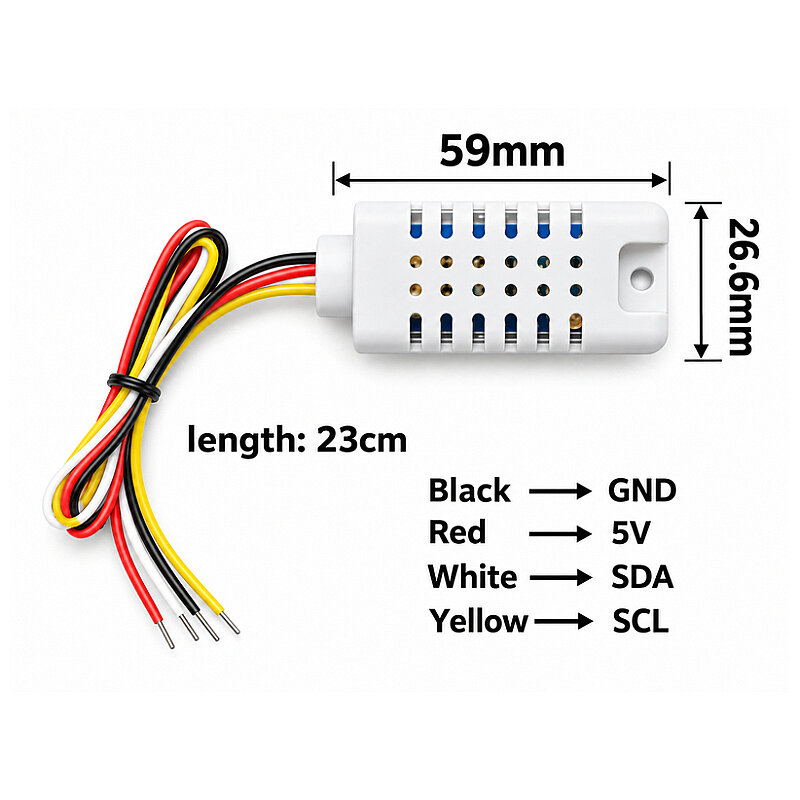

The sensor utilizes the I²C digital communication interface to communicate with a microcontroller. There are a total of four connections on the cable for power supply and communication.

Thanks to its wide supply voltage range of 2.15V to 5.5V, it is compatible with both 3.3V and 5V microcontroller systems.

It can easily communicate with Arduino, Raspberry Pi, ESP32, ESP8266, STM32, and other development boards featuring an I²C interface.

Specifications

• Supply Voltage: 2.15V - 5.5V DC
• Sensor Model: SHT30
• Measured Parameters: Temperature and relative humidity
• Output Type: Digital
• Communication Interface: I²C / IIC
• Humidity Measurement Range: 0% - 100% RH
• Typical Humidity Accuracy: ±2% RH
• Temperature Measurement Range: -40°C to +125°C
• SHT30 Typical Temperature Accuracy: Approx. ±0.2°C
• Cable Length: 23cm

Communication Interface: I²C / IIC Humidity Measurement Range: 0% - 100% RH Typical Humidity Accuracy: ±2% RH Temperature Measurement Range: -40°C to +125°C SHT30 Typical Temperature Accuracy: Approx. ±0.2°C Cable Length: 22.8cm
