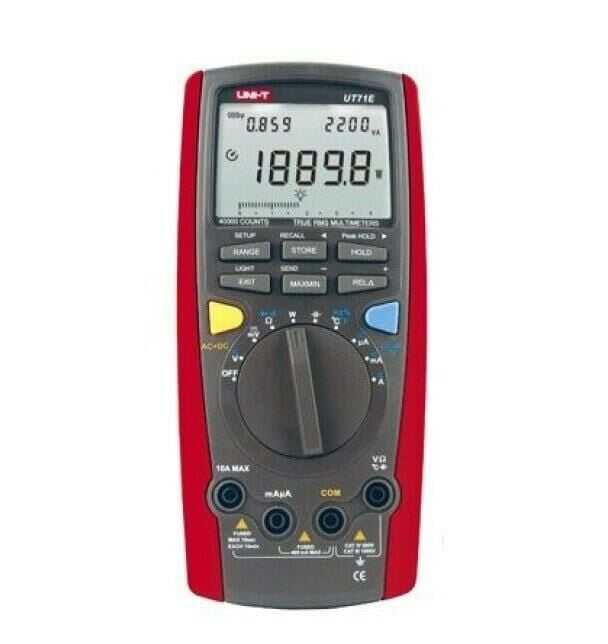

Digital Multimeter True RMS UT71E - Measuring Instrument

Digital Multimeter UT71E Features





< TD class=xl65>40NF / 400NF / 4ΜF / 40ΜF / 400ΜF / 4MF / 40MF< TD>CONTINUITY BUZZER< TD class=xl65>√< /TR>< TD class=xl65>

FEATURES	RANGE< /TD>	BEST ACCURACY
MODEL		UT71E
DC VOLTAGE (V)	400MV / 4V / 40V / 400V / 1000V	± (0.025 +% 5)
AC VOLTAGE (V)	4V / 40V / 400V / 1000V	± (0.4% + 30)
DC CURRENT (A)	400ΜA / 4000ΜA / / 40MA 400MA / 10A	± (0.1 + 15%)
AC CURRENT (A)	400ΜA / 4000ΜA / / 40MA 400MA / 10A	± (0.7% + 15)
RESISTANCE (Ω)	400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ	± (0.3% + 8)
CAPACItance (F)	± (1 +% 20)
FREQUENCY (HZ)	40HZ-400MHZ	± (% 0.01 + 8)
TEMPERATURE (° C)	-40 ° C ~ 1000 ° C	± (1 +% 30)
TEMPERATURE (° C)	-40 ° F ~ 1832 ° F	± (1.5% + 50)
POWER (W)	2500W	± (% 2 + 5)
FEATURES
IMAGE COUNT		39999
AUTO RANGE		√
TRUE RMS< /TD>		√
BANDWIDTH (HZ)	100KHZ	√
DUTY CYCLE	~ 90% 10%	± (1 +% 30)
DIODE		√< /TD>
AUTOMATIC SHUT OFF		√
	√
LOW BATTERY INDICATOR		√
DATA HOLD
RELATIVE MODE		√
MAX / MIN		√
DATA LOG		100
USB INTERFACE		√
DUAL BACKLIGHT		√
ANALOG BAR GRAPH		√
ICON FULL SCREEN		√
SETUP		√
INPUT IMPEDANCE FOR DCV	DC 400MV: SURROUNDINGS 2.5GΩ, ALL OTHER RANGE: 10 MQ	√
4 - 20MA LOOP	0 ~ 100%	± (1 +% 50)
INSURED 10 A	√
CURRENT MEASUREMENT ALARM		√
VOLTAGE AND CURRENT AC + DC MEASUREMENT		√
POWER	9V BATTERY (6F22)
LCD SIZE	73MM X 50MM,
PRODUCT COLOR	RED AND GRAY
PRODUCT NET WEIGHT	384G
PRODUCT DIMENSION	200MM X 93MM X 40 MM
