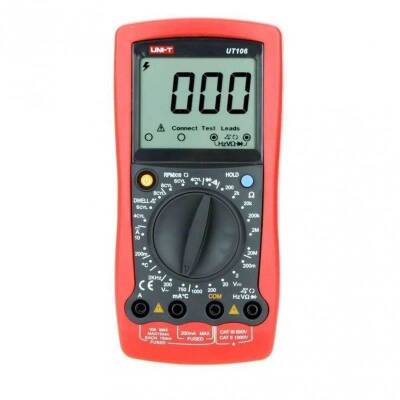

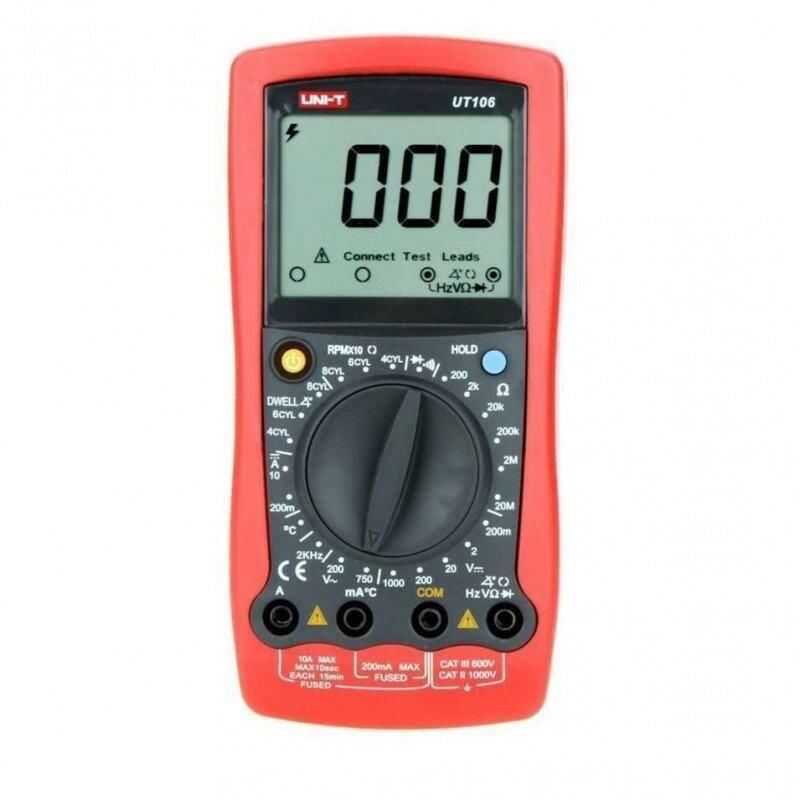

Digital Multimeter UT106 - Measuring Instrument

Digital Multimeter UT106 Features





< td class="xl65">200W/2kW/20kW/200kW/2MW/20MW< td class="xl65" height="20" colspan="3">Special Functions< td class="xl65"> < td>

Basic Functions	Range	Accuracy
DC Voltage	200mV/2V/20V/200V/1000V< /td>	(0.5%+2)
AC Voltage	200V/750V	(0.8%+5)
DC Current	200mA/10A	(0.8%+5)
Resistance	(0.8%+5)
Temperature (° C)	-40°C~1000°C	(2%+8)
Frequency	2kHz	(2%+5)< /td>
Fused 10A		+
living	4Cyl /6Cyl/8Cyl	(3%+5)
tach	4Cyl/6Cyl/8Cyl	(3%+5)
diode		+
continuity Buzzer	+
hold data		+
Low Battery Indicator		+
DC Input Impedance	Around 10MW	+
Voltage Measurement	1999	+
GENERAL FEATURES
Power	9V Battery (6F22)
LCD Size	60 x 54mm
Product Color	Red Meter and Gray Case
Product Net Weight	352g (Including Case )
Product Size	179 x 88 x 39mm
Standard Accessories	Test Lead, Battery, English Manual, Case, Contact Temperature Probe
