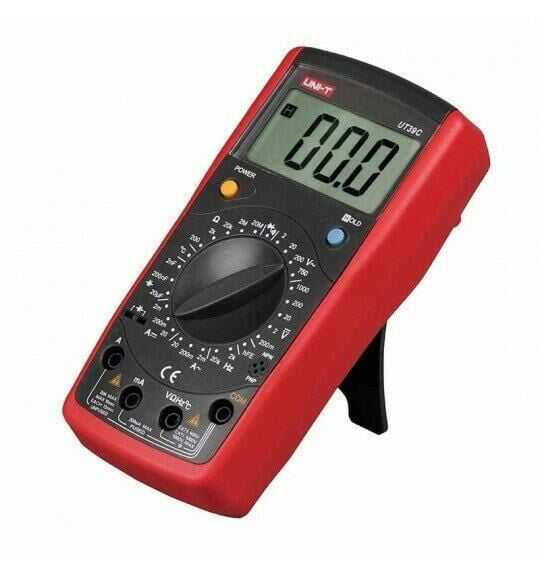

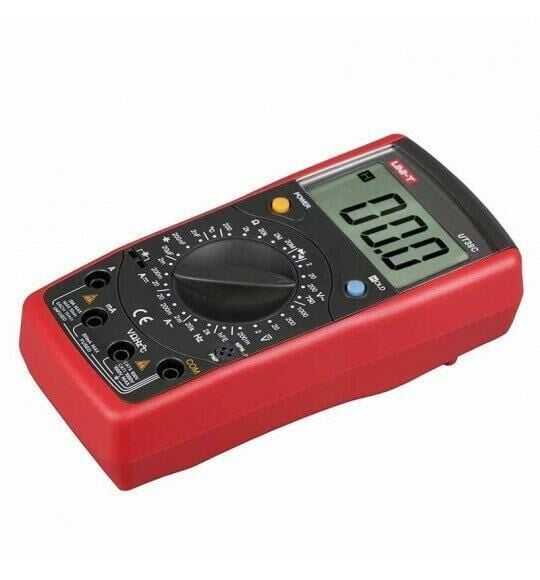

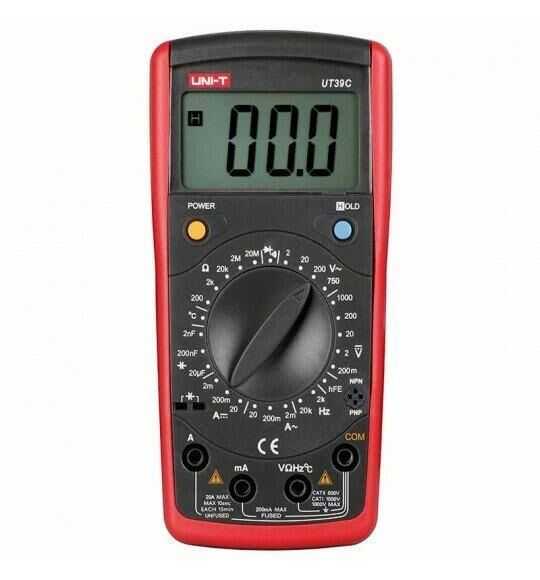

Digital Multimeter UT39C

Digital Multimeter UT39C Features



< TD class=xl67 colSpan=2>310G (INCLUDING HOLSTER)

BASIC FUNCTIONS	RANGE	BEST ACCURACY
DC VOLTAGE	200MV/2V/20V/200V/1000V	(0.5%+1)
AC VOLTAGE	2V/ 20V/200V/750V	(0.8%+3)
DC CURRENT	2MA/200MA/20A	(0.8%+1)
AC CURRENT	2MA/200MA/20A	(1%+3)
RESISTANCE	200W/2KW/20KW/2MW/20MW	(0.8%+10)
CAPACITANCE	2NF/200NF/20ΜF	(4%+3)
TEMPERATURE (°C)	-40°C ~ 1000°C	(2%+8)
FREQUENCY	2KHZ/20KHZ	(1.5%+5)
SPECIAL FUNCTIONS
DIODE
CONTINUITY BUZZER
TRANSISTOR
DATA HOLD
SLEEP MODE
LOW BATTERY DISPLAY
INPUT IMPEDANCE FOR	AROUND 10MW
DC VOLTAGE MEASUREMENT
MAX. DISPLAY		1999
GENERAL CHARACTERISTICS
POWER	9V BATTERY (6F22)
LCD SIZE	61 X 32MM
PRODUCT COLOUR	RED AND GRAY
PRODUCT NET WEİGHT
PRODUCT SIZE	172 83
	POINT CONTACT TEMPERATURE PROBE, HOLSTER
OPTIONAL ACCESSORIES*	CLIP-ON TEST LEAD LIGHT (UT-TL), BUİLT-IN TEST LEAD LIGHT (UT-L1), BUİLT-IN TEST LEAD LIGHT PLUS (UT-L2)
