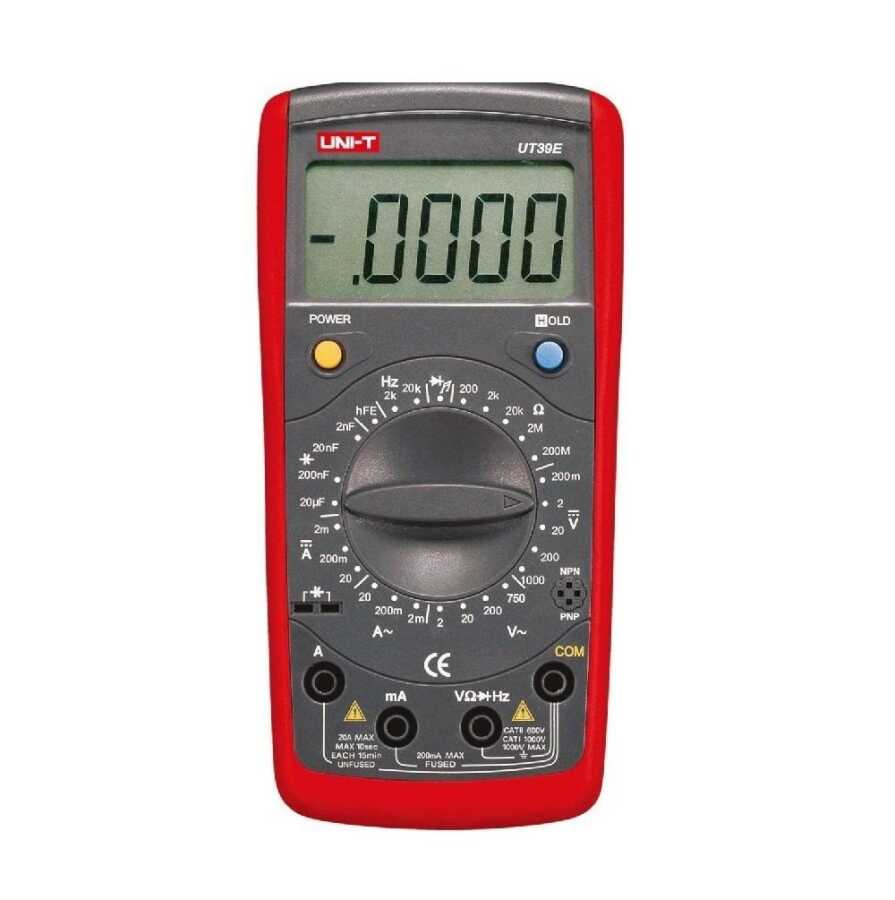

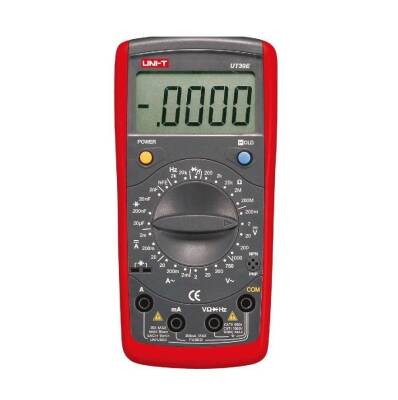

Digital Multimeter UT39E

Digital Multimeter UT39E Features



< TR>< TD class=xl67>       < TD class=xl66 height=20>INPUT IMPEDANCE FOR

BASIC FUNCTIONS	RANGE	BEST ACCURACY
DC VOLTAGE	200MV/2V/20V/200V/1000V	(0.5%+1)
AC VOLTAGE	2V/20V/200V/750V	(0.8%+3)
DC CURRENT	2MA/200MA/20A	(0.8%+1)
AC CURRENT	2MA/200MA/20A	(1%+3)
RESISTANCE	200W/2KW/20KW/2MW/20MW	(0.8%+10)
CAPACITANCE	2NF/200NF/20ΜF	(4%+3)
TEMPERATURE (°C)	-40°C ~ 1000°C	(2%+8)
FREQUENCY	2KHZ/20KHZ	(1.5%+5)
SPECIAL FUNCTIONS
DIODE
CONTINUITY BUZZER
TRANSISTOR	;
DATA HOLD
SLEEP MODE	< /SPAN>
LOW BATTERY DISPLAY
AROUND 10MW	< /TD>
DC VOLTAGE MEASUREMENT
MAX. DISPLAY		1999
GENERAL CHARACTERISTICS
POWER	9V BATTERY (6F22)
LCD SIZE	61 X 32MM
PRODUCT COLOUR	RED AND GREY
PRODUCT NET WEİGHT	310G (INCLUDING HOLSTER)
PRODUCT SIZE	172 X 83 X 38MM
STANDARD ACCESSORIES	TEST LEAD, BATTERY, ENGLISH MANUAL ,
	POINT CONTACT TEMPERATURE PROBE, HOLSTER
OPTIONAL ACCESSORIES*	CLIP-ON TEST LEAD LIGHT (UT -TL), BUİLT-IN TEST LEAD LIGHT (UT-L1), BUİLT-IN TEST LEAD LIGHT PLUS (UT-L2)
