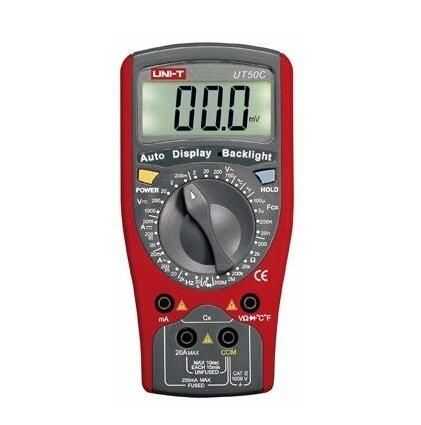

Digital Multimeter UT50C

Digital Multimeter UT50C Features



< TD class=xl66> < TD class=xl66 height=20>Power

Basic Functions	Range	Best Accuracy
DC Voltage	200mV/2V/20V/200V/1000V	(0.5%+1)
AC Voltage	2V/20V/200V/750V	(0.8%+3)
DC Current	20mA/200mA/20A	(0.8%+1)
AC Current	20mA/200mA/20A	(1%+3)
Resistance	200W/2kW/20kW/200kW/2MW/200MW	(0.8%+1)
Capacitance	20nF/200nF/2mF/100mF	(4%+3)
Frequency	2kHz/20kHz	(1.5%+5)
Special Functions	;
Diode
Continuity Buzzer
Data Hold
Display Backlight< /SPAN>	Auto Sensor
Full Icon Display
Sleep Mode	;
< SPAN>Low Battery Display
Input Impedance for DC	Around 10MW< /SPAN>
Voltage Measurement	< /TD>
Max. Display	1999
GENERAL CHARACTERISTICS
9V Battery (6F22)
LCD Size	59 x 25mm< /TD>
Product Color	Red and Gray
Product Net Weight	275g
Product Size	165 x 80 x 38.3mm
Standard Accessories	Test Lead, Battery, English Manual, Point Contact Temperature Probe, Test Clip
