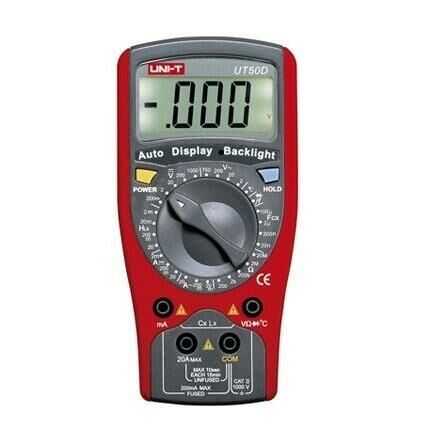

Digital Multimeter UT50D

Digital Multimeter UT50D Features



< /TR>< TD class=xl66>(0.8%+1)< TD class=xl66> < /TR>< /TR>< TD class=xl66>

Basic Functions	Range	Accuratek
DC Voltage	200mV/2V/20V/200V/1000V	(0.5%+1)
AC Voltage	2V/20V/200V/750V	(0.8 %+3)
DC Current	2mA/200mA/20A
AC Current	20mA/200mA /20A	(1%+3)
Resistance	200W/2kW/200kW/2MW/20MW	(0.8%+1)
Capacitance< /SPAN>	20nF/200nF/2mF/100mF	(2.5%+5)
Temperature (° C)	-40°C ~ 1000°C	(1%+3)< /TD>
Inductance	2mH/20mH/200mH/20H	(2%+10)
special Functions
Diode		+
Continuity Buzzer		+
Hold data		+
Rear Screen	Auto Sensor	+
Full Icon Display		+
Sleep Mode		+
Low Battery Indicator		+
DC Input Impedance	Around 10MW	+
Voltage Measurement	1999	+
GENERAL FEATURES
Power	9V Battery (6F22 )
LCD Size	59 x 25mm< /TD>
Product Color	Red and Gray
Product Net Weight	275g
Product Dimension	165 x 80 x 38.3mm
Standard Accessories	Test Lead, Battery , English Manual, Point Contact Temperature Probe, Test Clip
