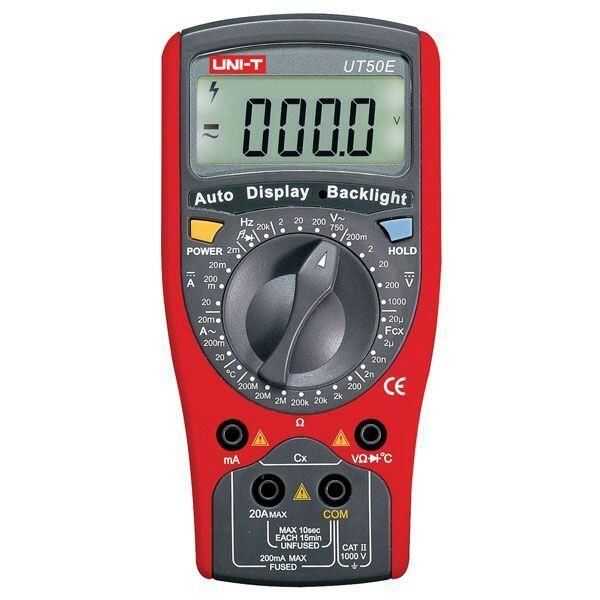

Digital Multimeter UT50E

Digital Multimeter UT50E Features



< TD class=xl66>(0.8%+10)< TD class=xl66>(2.5%+5)< /TR>< TD class=xl66>

Basic Functions	Range	Accuracy
DC Voltage	200mV/2V/20V/200V/1000V	(0.05%+3)
AC Voltage	2V/20V/200V/750V	(0.5%+10)
DC Current	2mA/20mA/200mA/20A	(0.5%+5)
AC Current	20mA/200mA/20A
Resistance	200W/2kW/20kW/200kW/2MW/20MW/200MW	(0.3%+1)
Capacitance	2nF/20nF/2mF/20mF
Temperature (°C)	-40°C ~ 1000°C	(1%+30)
Frequency	20kHz	(1.5%+5)
Special Functions
Diode		+
Continuity Buzzer		+
Hold data		+
Rear Screen	Auto Sensor	+
Full Icon Display		+
Sleep Mode		+
Low Battery Indicator		+
DC Input Impedance	Around 10MW	+
Voltage Measurement	1999	+< /TD>
GENERAL FEATURES
Power	9V Battery (6F22)
LCD Size	59 x 25mm
Product Color	Red and Gray
Product Net Weight	275g
Product Size	165 x 80 x 38.3mm
Standard Accessories	Test Lead, Battery, English Manual, Point Contact Temperature Probe, Test Clip
