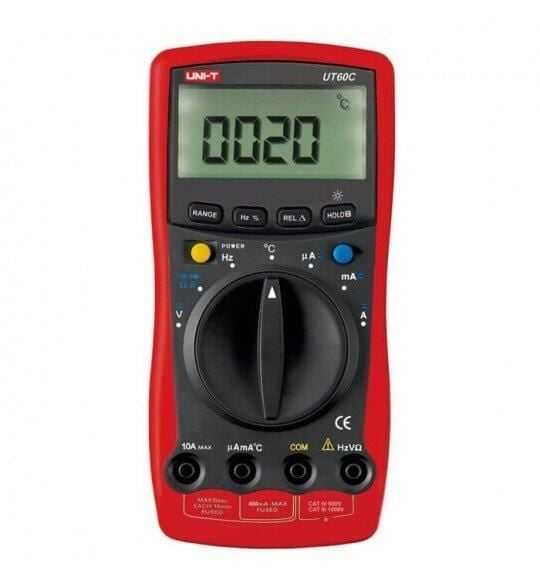

Digital Multimeter UT60C

Digital Multimeter UT60C Features



< TR>< TR>< TR>< TD height=20>Continuity Buzzer< TD>

Features	Range< /TD>	Best Accuracy
Model		UT60C	UT60E
DC Voltage (V)	400mV / 4V / 40V / 400V / 1000V	± (0.8% + 1)	± (0.8% + 1)
AC Voltage (V)	4V / 40V / 400V / 750V	± (1% + 5)	± (1% + 5)
Communication Bandwidth	40Hz ~ 400Hz	√	√< /TD>
DC Current (A)	400mA / 4000mA / / 40mA 400mA / 4A / 10A	± (1 +% 2)	± (1 +% 2)
AC Current (A)	400mA / 4000mA / / 40mA 400mA / 4A / 10A	± (1.5% + 5)	± (1.5% + 5)
Resistance (Ω)	400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ	± (1 + 2%)	± (1 + 2%)
Capacitance (F)	40nF / 400nF / 4μF / 40μF / 100μF	± (3% + 5)	± (3% + 5)
Frequency (Hz)	10Hz ~ 10MHz	± (0.1% + 3)	± (0.1% + 3)
Duty Cycle	~ 99.9% 0.1%	√	√
Temperature (° C)	-40 ℃ ~ 1000 ℃	± (1 + 3%)	± (1 +% 3)
Features			< /TD>
Fused 10A Range	Ceramic fuse	√	√
Relative Mode		√	√
Icon Full Screen		√	√
Diode		√	√
	√	√
Low Battery Display		√	√
Input Impedance for DC Voltage Measurement	10 MQ	√	√
Data Hold		√	√
Range Auto		√	√
Auto / Manual Range< /TD>		√	√
Screen Light		√	√
Max Screen	3999	√	√
Auto Power Off	;	√	√
Sleep Mode
RS-232			√
True RMS	AC	√
		< /TD>
General Characteristic
Power	9V Battery (6F22)
LCD Size	63mm × 31mm
Product Color	Red and Gray
Product Net Weight	UT60C- 340g, UT60E- 312g
Product Size	177mm × 85mm × 40mm		;
