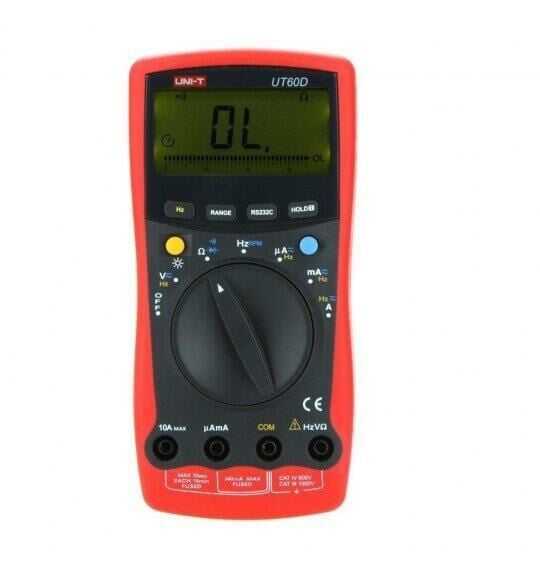

Digital Multimeter UT60D

Name: Digital Multimeter UT60D
Brand: UNI-T
SKU: OTA.MLT.01.000034
Price: 2160.00 TRY
Availability: OutOfStock

1.800,00 TL + VAT

2.160,00 TL

Notify Me When It Arrives

Digital Multimeter UT60D Features

< TR>< TD>√

Features	Range	Best Accuracy
Model		UT60C	UT60E
DC Voltage (V)	400mV / 4V / 40V / 400V / 1000V	± (0.8% + 1)	± (0.8% + 1)
AC Voltage (V)	4V / 40V / 400V / 750V	± (% 1 + 5)	± (1% + 5)
Communication Bandwidth	40Hz ~ 400Hz	√< /TD>	√
DC Current (A)	400mA / 4000mA / / 40mA 400mA / 4A / 10A	± (1 +% 2)	± (1 +% 2)
AC Current (A)	400mA / 4000mA / / 40mA 400mA / 4A / 10A	± (1.5% + 5)	± (1.5% + 5)< /TD>
Resistance (Ω)	400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ	± ( 1 +% 2)	± (1 +% 2)
Capacitance (F)	40nF / 400nF / 4μF / 40μF / 100μF	± (3% + 5)	± (3% +5)
Frequency (Hz)	10Hz ~ 10MHz	± (0.1% + 3)	± (0.1% + 3)< /TD>
Duty Cycle	~ 99.9% 0.1%	√	√< /TD>
Temperature (° C)	-40 ℃ ~ 1000 ℃	± (1 + 3%) )	± (1 +% 3)
Features
10A Range with Fuse	Ceramic fuse	√	√
Relative Mode		√	√
Icon Full Screen		√< /TD>	√
Diode		√
Continuity Buzzer		√	√
Low Battery Display		√	√
Input Impedance for DC Voltage Measurement	10 MQ	√	√< /TD>
Data Hold		√	√
Range Auto		√	√
Automatic / Manual Range		√	√
Screen Light		√	√
Max Screen	3999	√	√
Automatic Shutdown		√	√
Sleep Mode
RS- 232			√
True RMS< /TD>	AC		√

General Characteristic
Power	9V Battery (6F22)
LCD Size	63mm × 31mm
Product Color	Red and Gray
TD>
Product Net Weight	UT60C- 340g, ;UT60E- 312g
Product Size	177mm × 85mm × 40mm
Standard Accessories	UT60C -Test Lead, Battery, Test Clip, RS232C Interface Cable, PC Software CD		< /TD>
Standard Accessories	UT60E- Test Lead, Battery, Point Contact Temperature Probe, Test Clip, RS232C Interface Cable, Software
