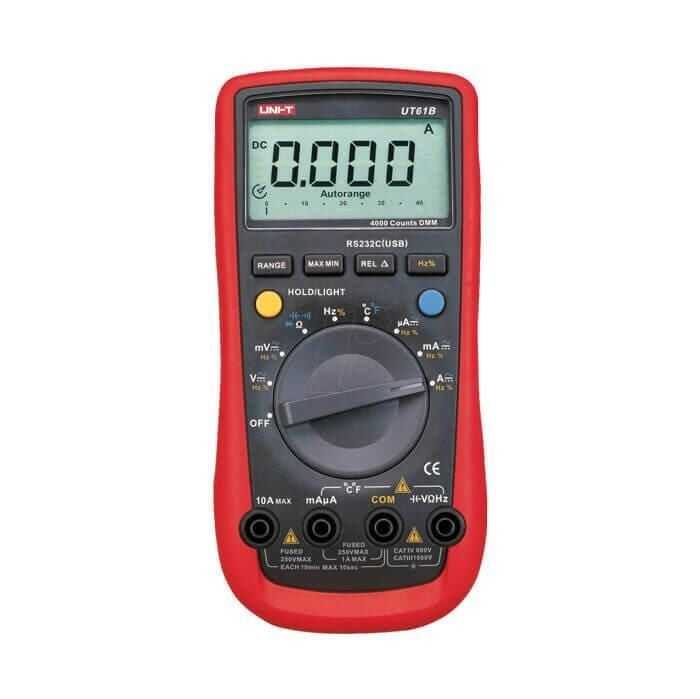

Digital Multimeter UT61B

Digital Multimeter UT61B Features





< /TR>< /TR>< TD class=xl65>+< TD class=xl65>+< TD>180 x 87 x 47mm< TD class=xl67 width=289>Battery, Test Lead, English Manual, Multi-Purpose Socket

Basic Functions< /SPAN>	Range	Accuracy
< SPAN>DC Voltage	40mV/400mV/4V/40V/400V/1000V	(0.5%+1)
AC Voltage	40mV/400mV/4V/40V/400V/750V	(1.0%+3)
AC Current	400mA/4000mA/40mA/ 400mA/4A/10A	(1.2%+5)
DC Current	400mA/4000mA/40mA/400mA/4A/10A	(1.0%+2)
Resistance	400W/4kW/40kW/400kW/4MW/40MW	(1.0%+2)
Capacitance	40nF/400nF/4mF/40mF/400mF/4000mF	(3.0%+5)
Frequency	10Hz-10MHz	(0.1%+4)
Frequency Response	0< /TD>	45~400Hz
Duty Cycle	0.1% ~99.9%	+
Temperature (° C)	-40°C~1000°C	(1.2%+3)
Temperature (° C)	-40°F~1832°F	(1.2%+4)
Special Functions
Automatic / changing Manual		+
Diode		+
Continuity Buzzer	< /TD>	+
hold data		+
Max / Min Mode	< /TD>	+
Rear Screen		+
REL		+
sleep Mode	Around 15 Minutes	+
Analog Bar Graph	41
RS232		+
Ingress Protection		+
Input Impedance for DC Voltage Measurement	Around 10MW
Low Battery Indicator	≤7.5V	+
Max Screen	4000	+
GENERAL FEATURES
Power	9V Battery (6F22)
LCD Size	65 x 43mm
Product Color	Red and Gray
Product Net Weight	370g
Product Size
Standard Accessories
