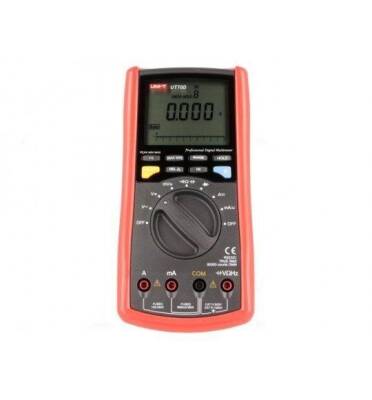

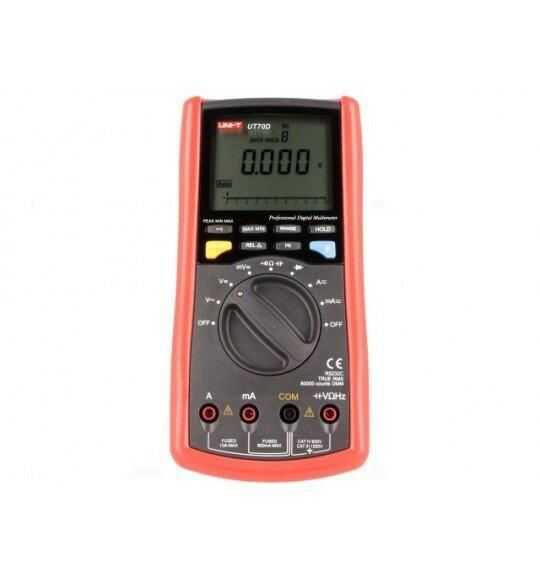

Digital Multimeter UT70D
5.984,25
TL
+
VAT
7.181,10
TL
Notify Me When It Arrives
Notify Me When It Arrives
Digital Multimeter UT70D Features
| FEATURES | RANGE | BEST ACCURACY | |
| MODEL | UT70C | UT70D | |
| DC VOLTAGE (V) | 800MV / 800MV / 8V / 80V / 800V / 1000V | ± (0.1 +% 1) | ± ( 0.05% + 10) |
| AC VOLTAGE (V) | 800MV / 8V / 80V / 800V / 1000V | ± (1 +% 3) | ± (0.8% + 20) |
| DC CURRENT (A) | 80MA / 800MA / 8A / 10A | ± (0.3% + 2) | ± (0.2% + 40) |
| AC CURRENT (A) | 80MA / 800MA / 8A / 10A | ± (0.8% + 2) | ± (0.5% + 40)< /TD> |
| RESISTANCE (Ω) | 800Ω / 8KΩ / 80KΩ / 800KΩ / 8MΩ / 80MΩ | ± (0.5% + 1) | ± (0.3% + 40) |
| CONDUCTIVITY | 80NS | ± (2% + 10) | ± (2% + 120) |
| CAPACITANCE (F) | 1NF / 10NF / 100NF / 1ΜF / 10ΜF / 100ΜF | ± (2% + 3) | ± (2% + 3%) |
| 1KHZ / 10KHZ / 100KHZ / 1MHZ | ± (0.02% + 1) | ± (0.02% + 1) | |
| FEATURES | |||
| FUSED 10A RANGE | < TD>√√ | ||
| DIODE | √ | √ | < /TR>|
| CONTINUITY BUZZER | √ | √ | |
| TRUE RMS< /TD> | √ | ||
| RELATIVE MEASUREMENT | √ | √ | |
| WORK CYCLE | √ | √ | |
| ICON FULL SCREEN | √ | √ | |
| SLEEP MODE | √ | √ | |
| LOW BATTERY DISPLAY | √ | √ | |
| INPUT IMPEDANCE FOR DC VOLTAGE MEASUREMENT | 10 MQ | √ | √ |
| PEAK / MIN / MAX | √ | √ | |
| DATA HOLD | √ | √ | |
| AUTOMATIC DATA HOLD | √ | √ | |
| ANALOG DISPLAY | √ | √ | |
| DISPLAY LIGHT | √ | √ | |
| RS232 | √ | √ | |
| RANGE AUTO | √ | √ | |
| MAX DISPLAY | 7999 (FREQUENCY MEASUREMENT COUNTS 99.999) | √ | √ |
| LCD SIZE | 62×53MM | √ | √ |
| ANALOG BAR GRAPH | 41 | √ | √ |
| POWER | 9V BATTERY (6F22 ) | ||
| LCD SIZE | 62MM × 53MM | ||
| PRODUCT COLOR< /TD> | RED AND GRAY | ||
| PRODUCT NET WEIGHT | 600G (INCLUDED CASE) | PRODUCT SIZE | 195MM X 90MM × 40MM |
