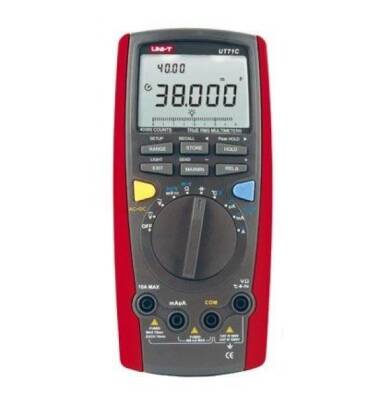

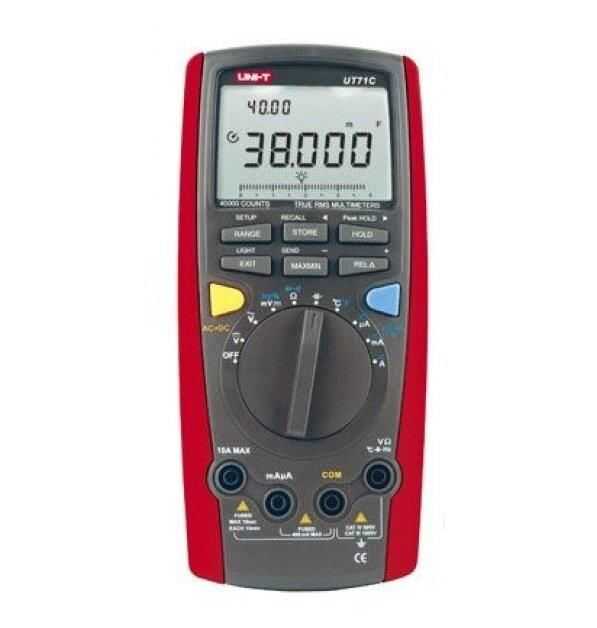

Digital Multimeter UT71C

Digital Multimeter UT71C Features



< TD class=xl65>± (1 + 30%) < TD class=xl65> < TD class=xl65>± (1 +% 50) < TR>< /TR>

FEATURES	RANGE	BEST ACCURACY
MODEL		UT71C
DC VOLTAGE (V)	400MV / 4V / 40V / 400V / 1000V	± (0.025 +% 5)
AC VOLTAGE (V)	4V / 40V / 400V / 1000V	± (0.4% + 30)
DC CURRENT (A)	400ΜA / 4000ΜA / / 40MA 400MA / 10A	± (0.1 +% 15)
AC CURRENT (A)	400ΜA / 4000ΜA / / 40MA 400MA / 10A	± (0.7% + 15)
RESISTANCE (Ω )	400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ	± (0.3% + 8)
CAPACITANCE (F)	40NF / 400NF / 4ΜF / 40ΜF / 400ΜF / 4MF / 40MF	± (1 + 20%)
FREQUENCY (HZ)	40HZ-400MHZ	± ( 0.01% + 8)
TEMPERATURE (° C)	-40 ° C ~ 1000 ° C
TEMPERATURE (° C)	-40 ° F ~ 1832 ° F	± (1.5% + 50)
POWER (W)	2500W
FEATURES
IMAGE COUNT		39999
AUTO RANGE		√
TRUE RMS		√
BANDWIDTH (HZ)	100KHZ	√
DUTY CYCLE	~ 90% 10%	± (1 + % 30)
DIODE		√
AUTOMATIC SHUT OFF		√
CONTINUITY BUZZER		√
LOW BATTERY INDICATOR		√
DATA HOLD		√
RELATIVE MODE		√
MAX / MIN		√
DATALOG		100
USB INTERFACE		√
DUAL BACKLIGHT		√
ANALOG BAR GRAPH	√
ICON FULL SCREEN		√
INSTALLATION		√
INPUT IMPEDANCE FOR DCV	DC 400MV: CIRCUS 2.5GΩ, ALL OTHER RANGE: 10 MQ< /TD>	√
4 - 20MA LOOP	0 ~ 100%
INSURED 10 A		√
CURRENT MEASUREMENT ALARM		√
VOLTAGE AND CURRENT AC + DC MEASUREMENT		√
GENERAL CHARACTERISTIC
POWER	9V BATTERY (6F22)   ;
LCD SIZE	73MM X 50 MM,
PRODUCT COLOR	RED AND GRAY
PRODUCT NET WEIGHT	384G
