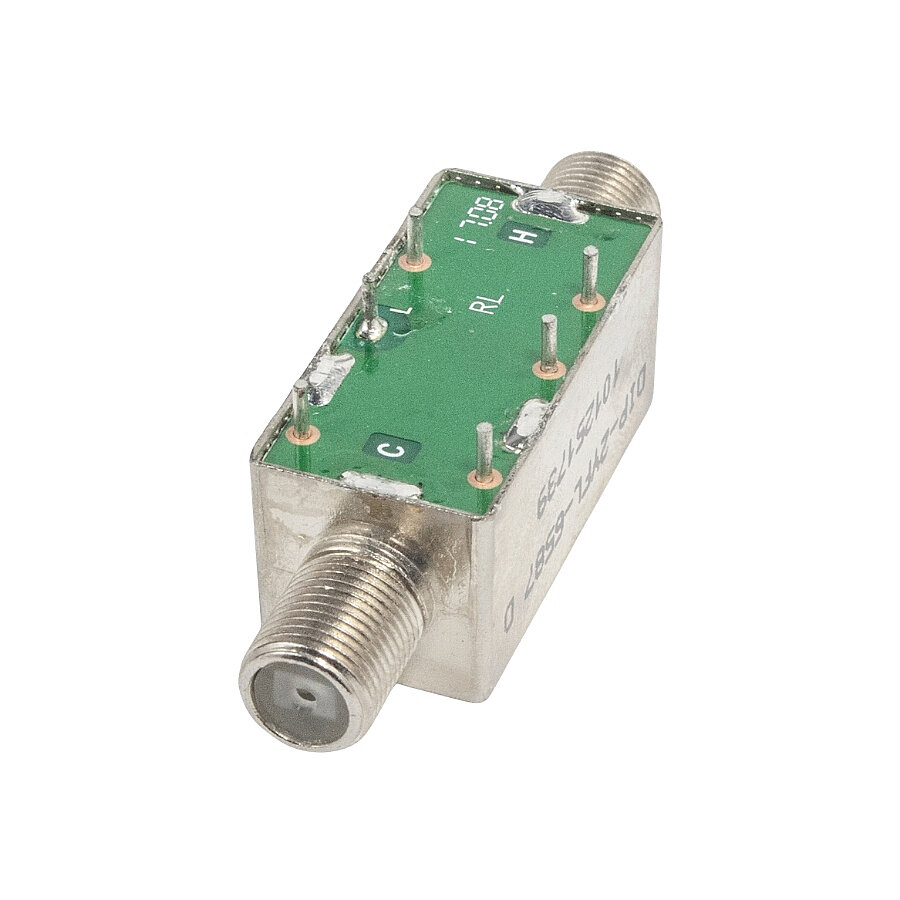

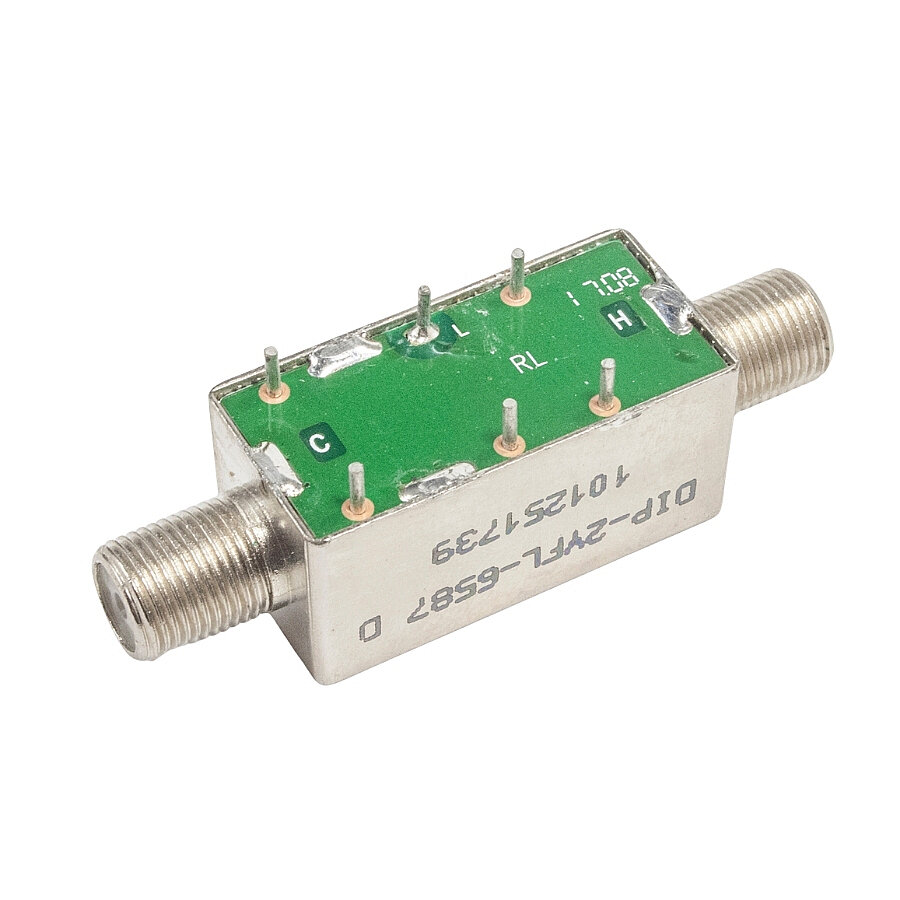

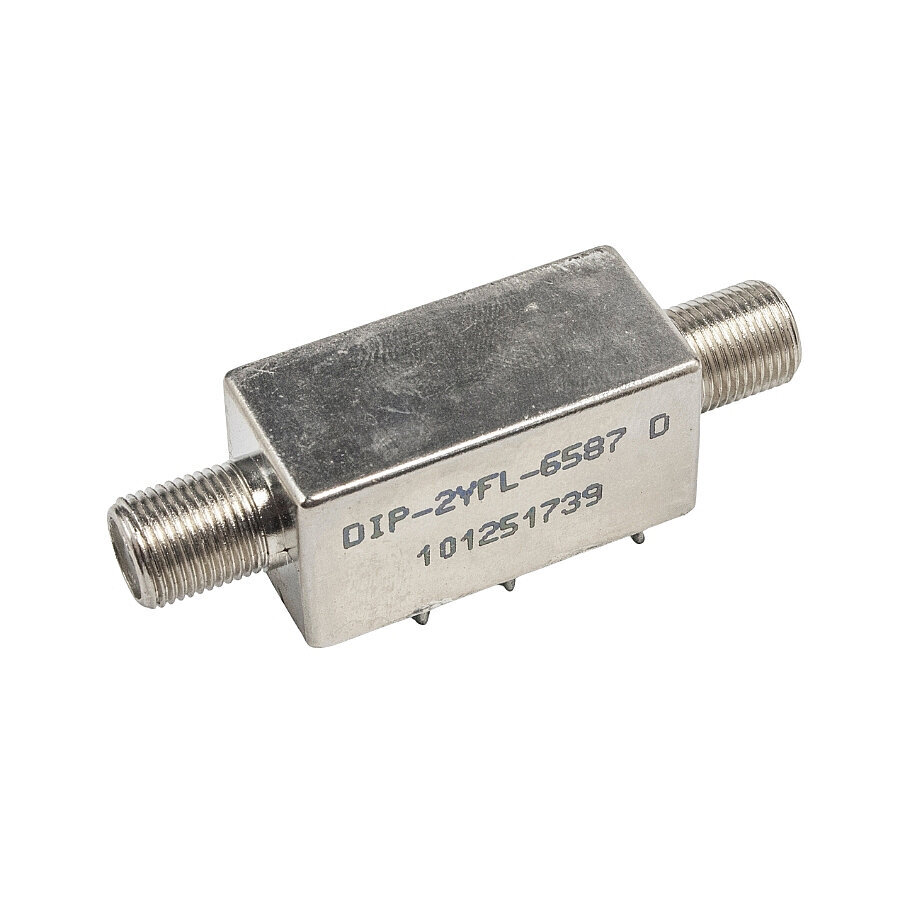

DIP-2YFL-6587 F-Type EOC Diplexer Filter

DIP-2YFL-6587 F-Type EOC Diplexer Filter

The DIP-2YFL-6587 F-Type EOC Diplexer Filter separates frequencies to transmit both television broadcast signals and broadband internet data (EOC data solutions) simultaneously over a single coaxial cable without interfering with each other.

Specifications

• Low-Pass Frequency 7.5~65 MHz
• High-Pass Frequency 87~1000 MHz
• Insert Loss ≤1.0 dB
• Return Loss ≥18 dB
• Stop Band Attenuation ≥55 dB and ≥50 dB
• Insulation ≥50 dB
• Port withstand voltage ≤1 kV
• Input/Output Impedance 75Ω
• Socket: F-Type
• Case Size: 35x16.5x16.9mm
