DS1232 WSOIC-16 SMD Power Controller and Monitor Serial Protocol IC

DS1232 monitors three vital conditions for a microprocessor: power supply, software execution and external override. First, a precise temperature-compensated reference and comparator circuit monitors the status of the VCC. When an out-of-tolerance condition occurs, an internal power failure signal is generated, forcing a reset to the active state. When VCC returns to a tolerance state, reset signals are kept active for a minimum of 250 ms to allow the power supply and processor to stabilize.

The second function that the DS1232 performs is pushbutton reset control. The DS1232 removes the push button input and guarantees a minimum active reset pulse width of 250 ms. The DS1232 has an internal timer that forces the reset signals into an active state if the flash input is not driven low before timeout. The watchdog timer function can be set to run at timeout settings of approximately 150 ms, 600 ms, and 1.2 seconds.

Series	DS1232
Supply Voltage	5V
Threshold Voltage	3.3 V to 5.5 V
Number of Entries	1 Entry
Output Type	Active High, Active Low, Open Drain

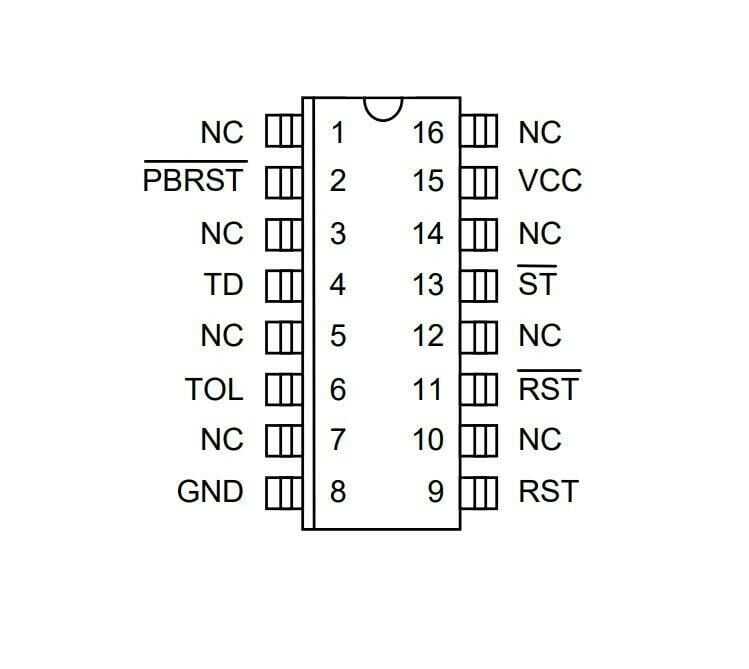

Number of Pins	16 Pin

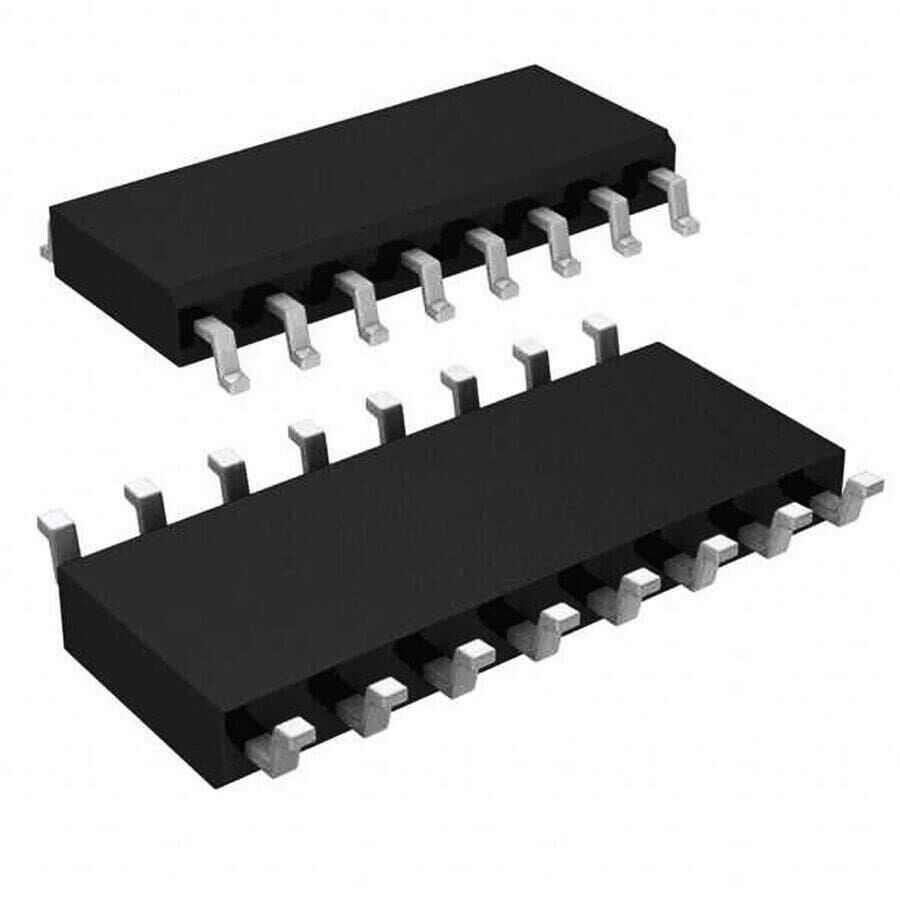

Package Type	WSOIC-16

DS1232 Datasheet
