DS2013-P21 12-24V PD3.0 Type-C + QC3.0 USB Charging Socket - With Switch and Voltmeter

DS2013-P21 12-24V PD3.0 Type-C + QC3.0 USB Charging Socket - With Switch and Voltmeter

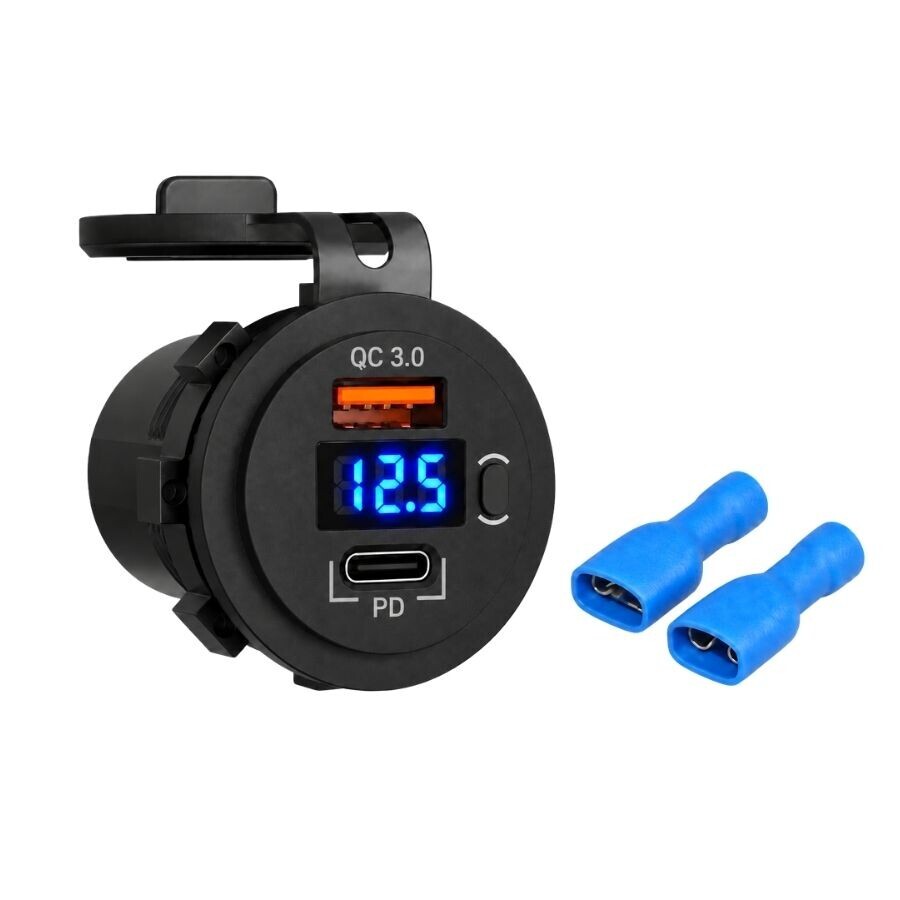

The DS2013-P21 12-24V PD3.0 Type-C + QC3.0 USB Charging Socket—featuring a switch and voltmeter—is a compact, convenient solution designed to consolidate power output, USB charging, voltage monitoring, and auxiliary electrical connections onto a single panel. It is suitable for use in cars, caravans, boats, trucks, off-road vehicles, and various DC electrical systems.

The unit features one QC 3.0 USB-A port and one PD Type-C port. It includes an on/off button and a display that allows you to monitor the battery voltage. The LED indicator is blue.

Specifications

• Supply Voltage: 12-24V DC
• Number of Ports: 1x USB-A QC3.0 / 1x PD Type-C
• LED Color: Blue
• USB-C Output Voltage: 5V 3A, 9V 2A-3A, 12V 1.5-2.5A, 15(20V) 1-1.5A
• USB-A Output Voltage: 5V 3A, 9V 2A, 12V 1.5A
• Maximum Output: 48W

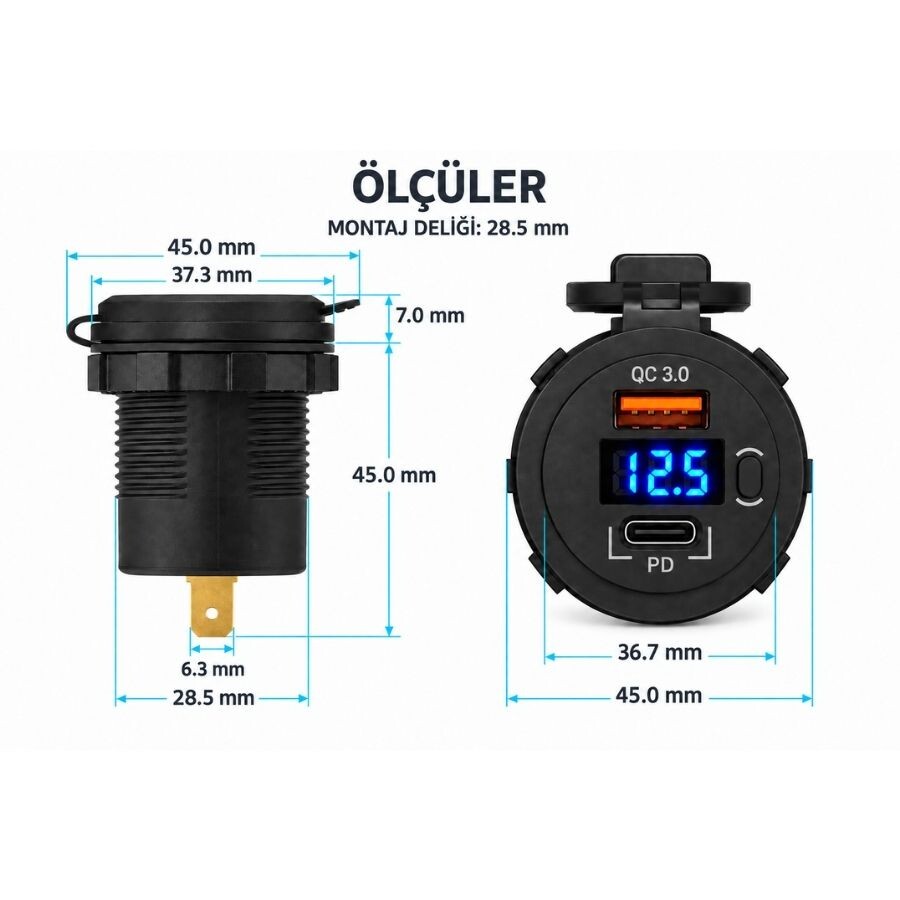

• Mounting Diameter: 28.5mm
