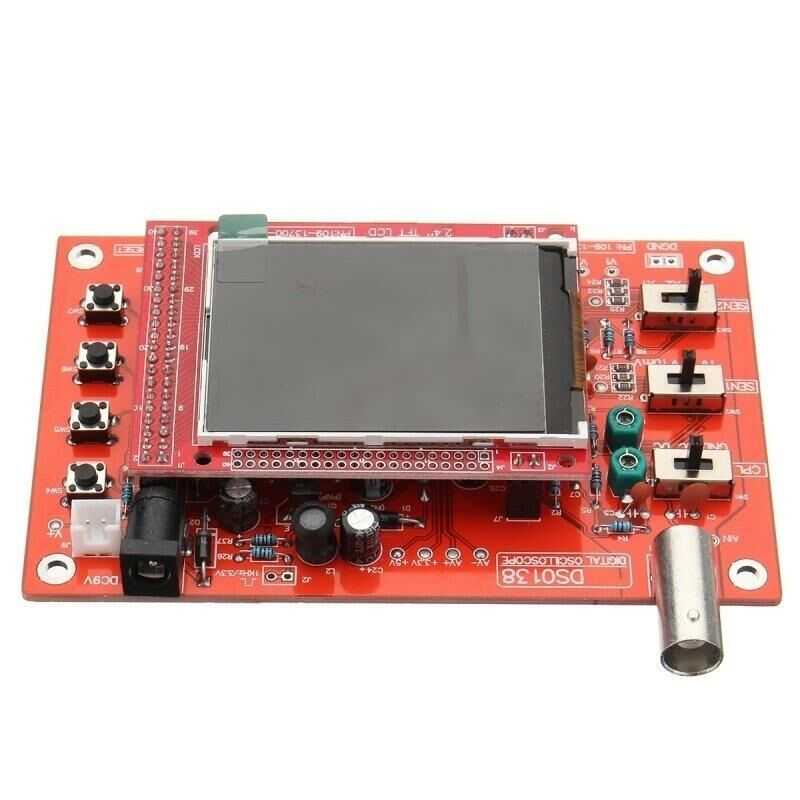

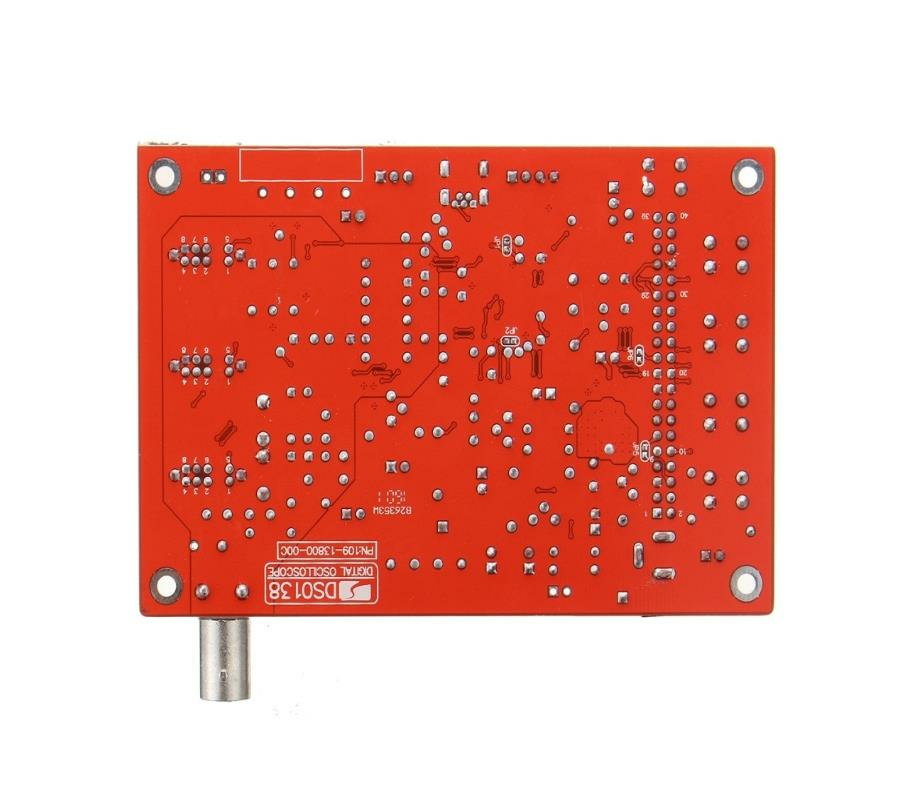

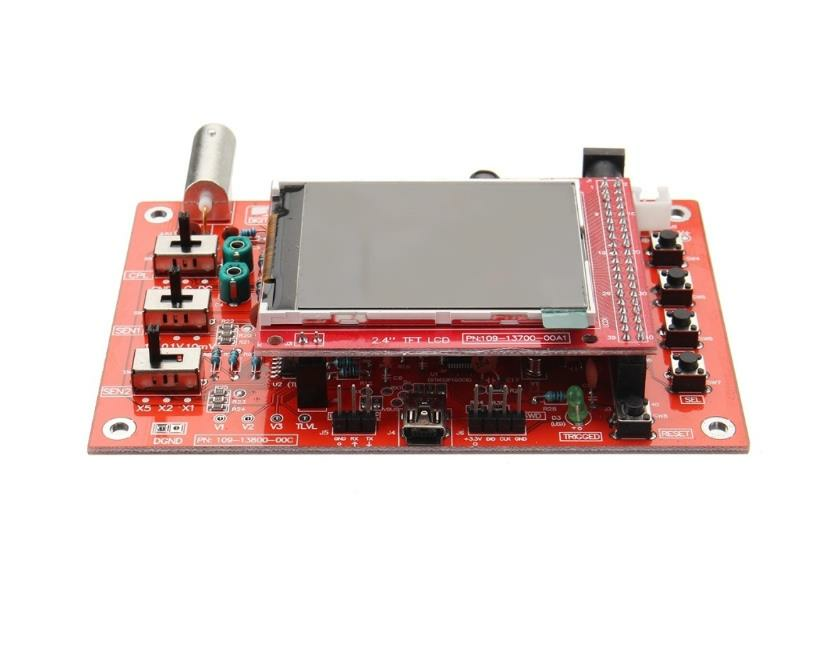

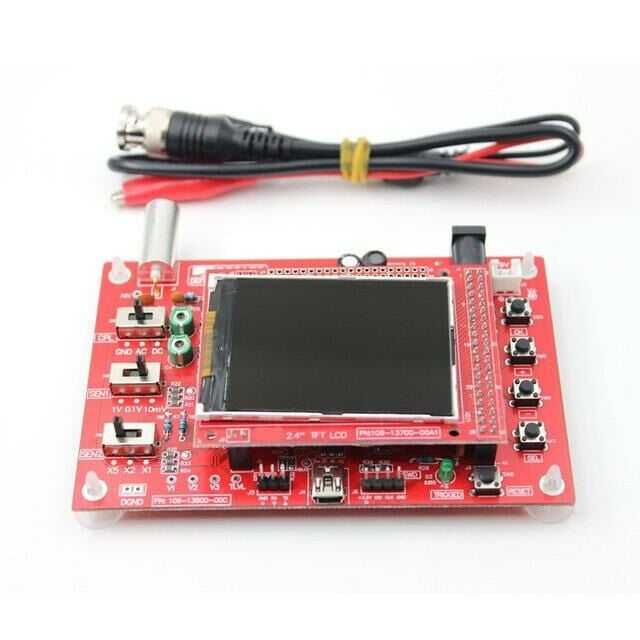

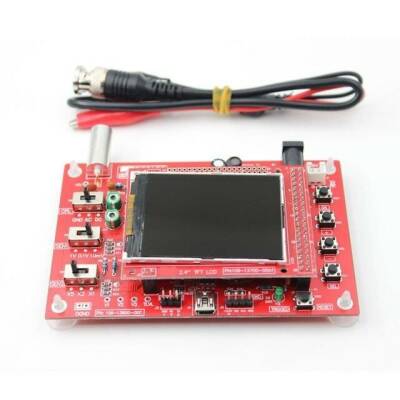

DSO138 Oscilloscope Kit Assembled

DS138 Oscilloscope kit has an ARM Cortex-M3 processor (STM32F103C8) and a 2.4 inch color screen. With this product, vertical data flow can be adjusted, and waveforms can be viewed on the screen with automatic, periodic and single measurement modes. The display of wavelengths can be stopped at any time. There is a 1Hz / 3.3V carded wave test signal.

Data about wavelengths such as frequency, period information, signal width can be displayed digitally.

Contained in the product. Thanks to the waveform storage function, the signal is not lost when the power is cut off. Soldering errors can be detected with this product.

The product comes assembled.

Technical Specifications of Dso138 Oscilloscope:

• Max Real-Time Sampling Rate: 1Msps
• Accuracy: 12Bit
• Sampling Buffer Memory: 1024 bytes
• Analog Bandwidth: 0 -200KHz
• Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5steps)
• Input impedance: 1MΩ
• Maximum Input Voltage: 50Vpp ( 1: 1 probe), 400Vpp (10: 1 probe)
• Coupling Modes: DC / AC / GND
• Horizontal Time Base Range: 10μs / Div - 50s / Div (1- 2-5 steps)
• Supply Voltage: DC 9V
• PCB Dimensions: 117 * 76mm / 4.6 * 3in
• Screen Dimensions: 52 * 40mm / 2 * 1.57 in
• Package Dimensions: 18 * 12.5 * 3cm / 7.08 * 4.92 * 1.18in
• Package Weight: 119g / 4.21oz
