ESP32 Module Adapter - Development Board Test Kit

ESP32 Module Adapter - Development Board Test Kit

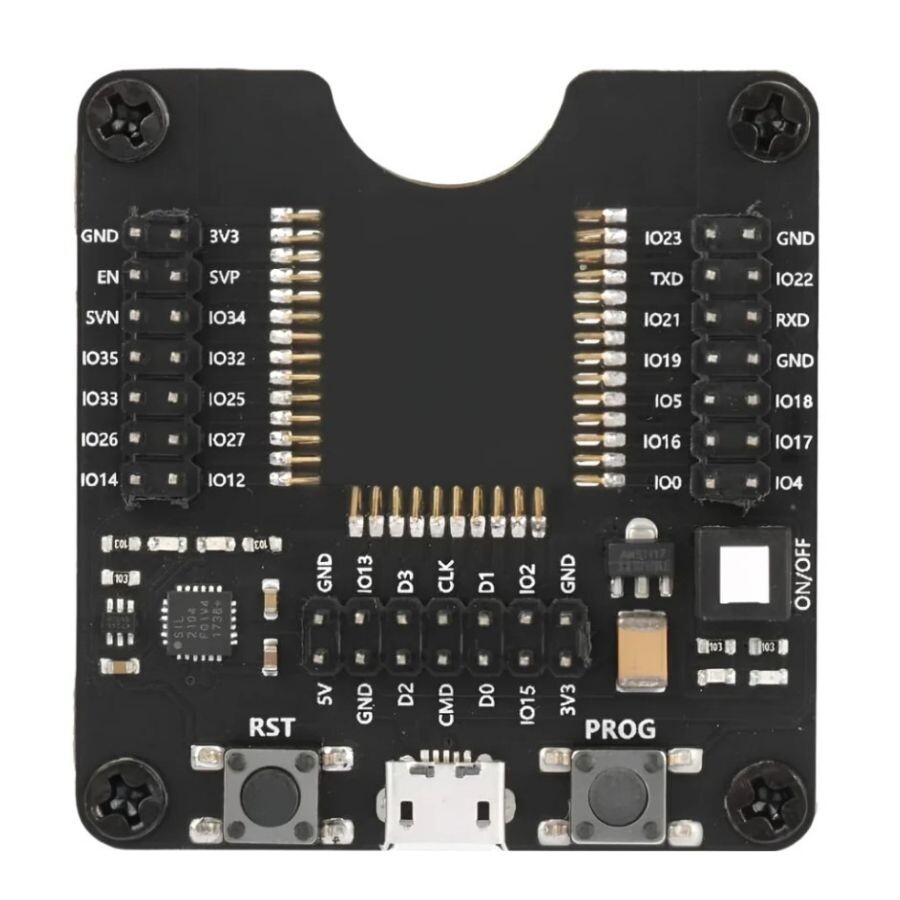

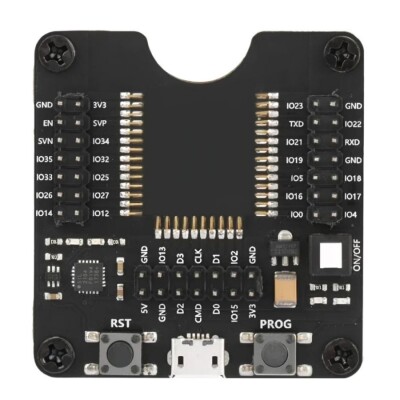

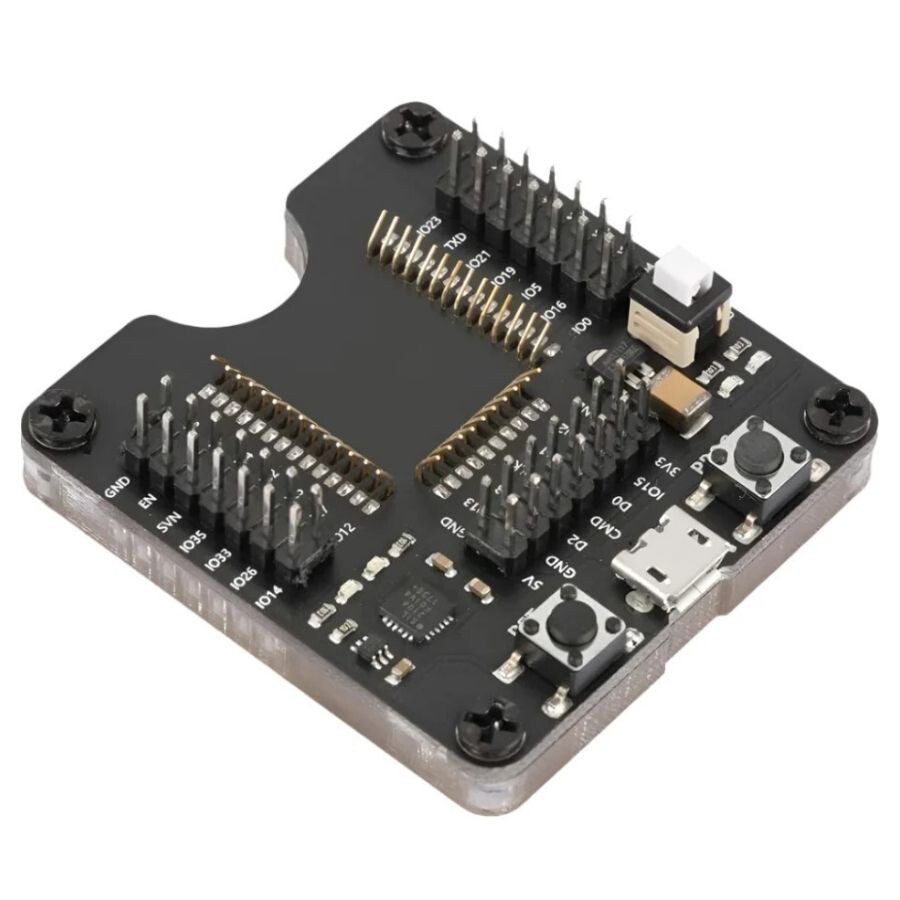

ESP32 Module Adapter - Development Board Test Kit can be used to program ESP32 chips. The development board has an onboard CP2104 USB-TTL chip and an AMS1117 3.3 version controller to drive and program the ESP module via USB.

Dimensions: 50x47x6mm.

Usage Steps

• Download and install the corresponding CP2104 serial chip driver according to the operating system.
• Download the flash download tool ESPFlashDownloadTool
• Automatically download the firmware: press the module, turn on the power switch
• Open the firmware, configure the corresponding burning parameters, long press the burning button and then short press; press the reset button and then click START to download, you can start burning the firmware.
• When the programming button is pressed, the blue programming indicator will light up and the module will wait for it.
