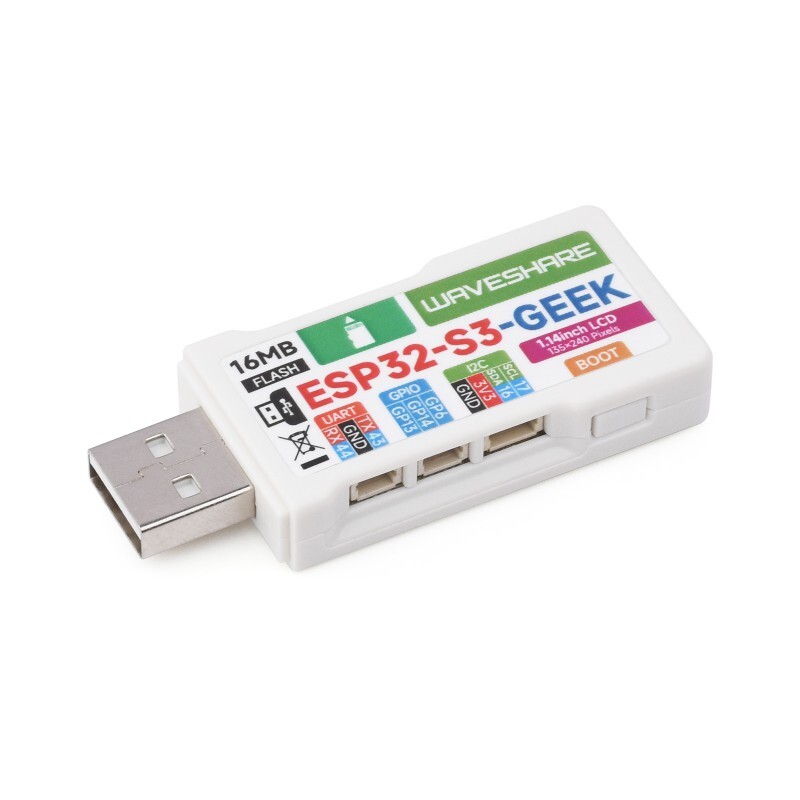

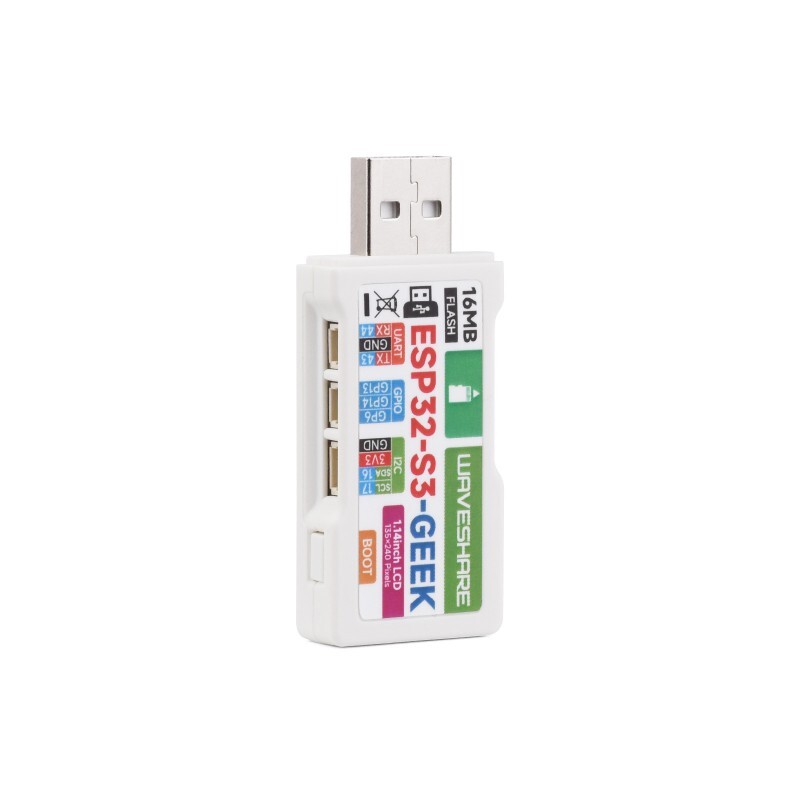

ESP32-S3-GEEK 1.14 Inch 240x135 Screen Development Board

ESP32-S3-GEEK 1.14 Inch 240x135 Screen Development Board

The ESP32-S3-GEEK 1.14 Inch 240x135 Screen Development Board, designed by Waveshare, is a board developed for technology enthusiasts, featuring a USB-A port, a 1.14-inch LCD screen, a TF card slot, and other peripherals. Offering 2.4GHz WiFi and BLE 5 support, the board provides more possibilities for your project with its integrated 16MB Flash and 2MB PSRAM, as well as I2C port, UART port and GPIO header.

User Manual

Features

• SKU: 26405
• Uses the ESP32-S3R2 chip with an Xtensa® 32-bit LX7 dual-core processor and can operate at 240 MHz.
• 512 KB SRAM, 384 KB ROM, 2 MB on-chip PSRAM and 16 MB internal Flash memory Includes: 1.14-inch 240×135 pixel 65K color IPS LCD screen. Integrated 2.4 GHz WiFi and Bluetooth LE wireless communication. WiFi supports Infrastructure BSS in Station, SoftAP, and Station + SoftAP modes. WiFi supports 1T1R mode with data speeds up to 150 Mbps. Bluetooth supports high power mode (20 dBm). Built-in co-operation mechanism for sharing the same antenna between Wi-Fi and Bluetooth. Built-in 3 PIN UART port, 3 PIN GPIO header, and 4 PIN I2C port. Plastic case and cables included. income.
• Provides online support.
Open-source demos and resources are more suitable for learning and development.

Screen Specifications

• Operating Voltage: 3.3V / 5V
• Resolution: 240 × 135 pixels
• Communication Interface: 4-wire SPI
• Screen Size: 24.91 × 14.86 (mm)
• Screen Panel: IPS
• Pixel Size: 0.1101 × 0.1035 (mm)
• Chip: ST7789
• Product Size: 61.00 × 24.50 (mm)

Usage For example;

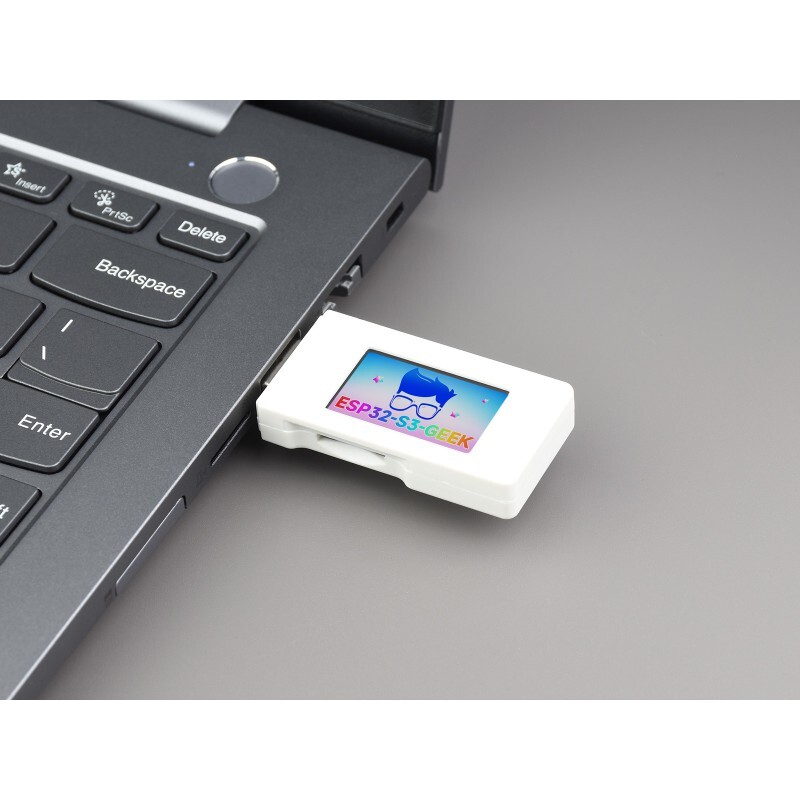

Creative applications such as wireless USB flash drives, USB WiFi/Bluetooth, ESP32-S3 based USB dongles, as well as introductory programming lessons, etc.

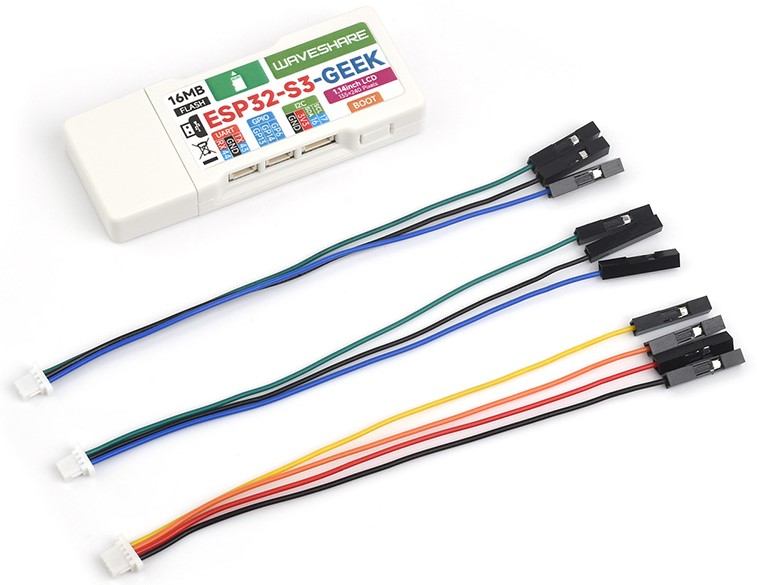

Package Content

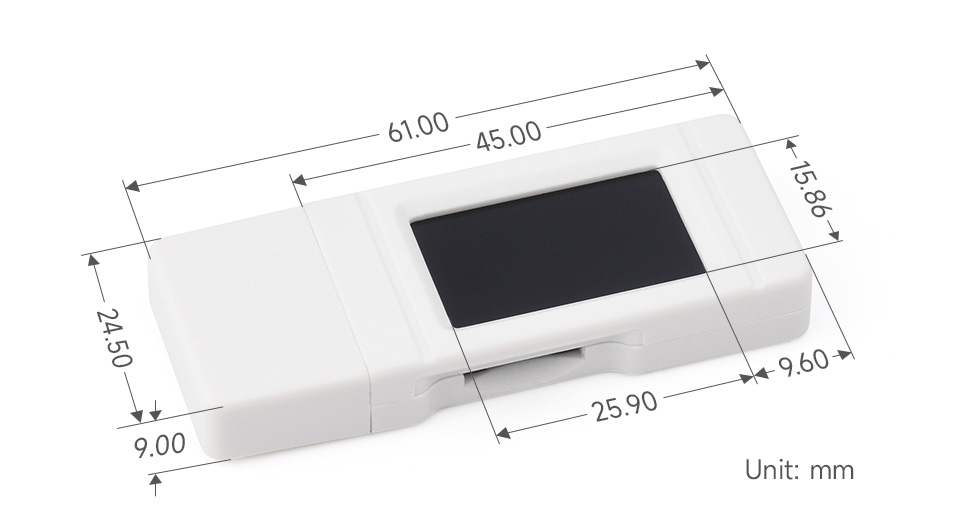

Size
