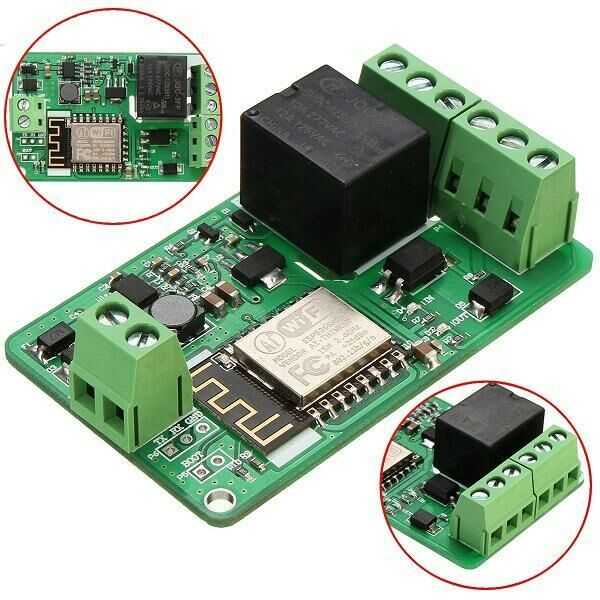

ESP8266 Wifi Relay Module 10A DC 7-30V

Relay module with ESP8266 wifi module on it and lasting up to 10A. It can be connected from the server side via TCP Client and can also be controlled by HTTP. With this module, you can make perfect IOT projects.

This product, which has a 7-30V input voltage, also has protection against excessive input voltage and TVS protection. Similarly, automatic protection will be activated when the input current exceeds a certain value.

Features:

4 layers panel with ESP8266 Wifi module design.
When the voltage exceeds 33V, input overvoltage protection, TVS input, Protection
Input overcurrent protection.
220V 10A relay, one normally open , one normally closed.
One-way optocoupler isolation input, TVS input protection.
High current terminals.
One output status indicator, one input status indicator.
Safer PCB pin anti-climb design with relays.
Access control server via TCP CLIENT mode
With HTTP protocol control

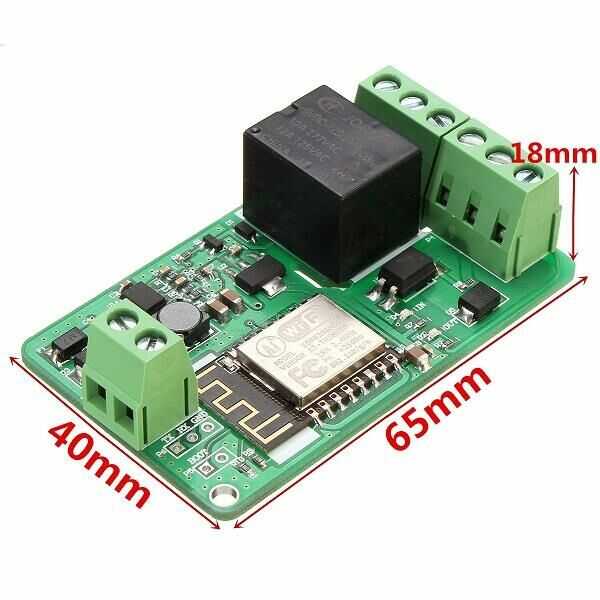

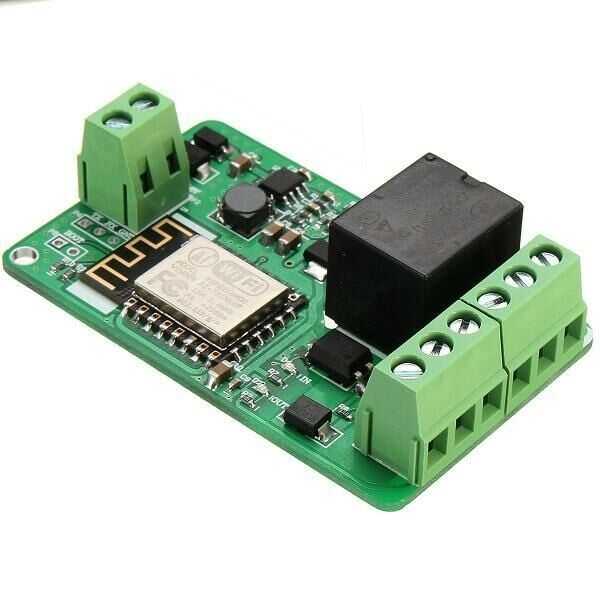

Dimension: 65 x 40 x 18 mm
ISM: 2.4 GHz
PA: + 25 dBm
Relay voltage: 220 V
Relay Current: 10 A
Input voltage: DC 7 V ~ 30 V
Input overvoltage protection: Yes
Input overcurrent protection: Yes

Wifi Relay Module Usage Example

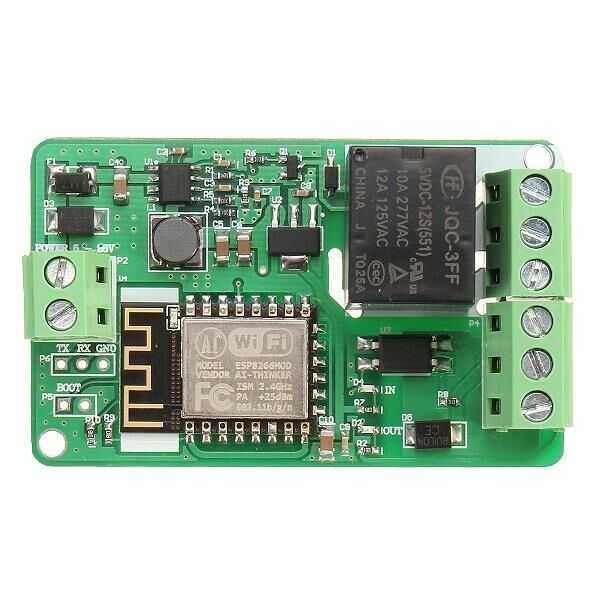

1 - Power input terminals.
2 - Relay output terminals.
3 - IO input terminal.
4 - Input status indicator, high, blue light when IO input is lit.
5 - Relay output status indicator, relay open, red light.
6 - TTL serial output.
7 - Boot mode selection jumper.
