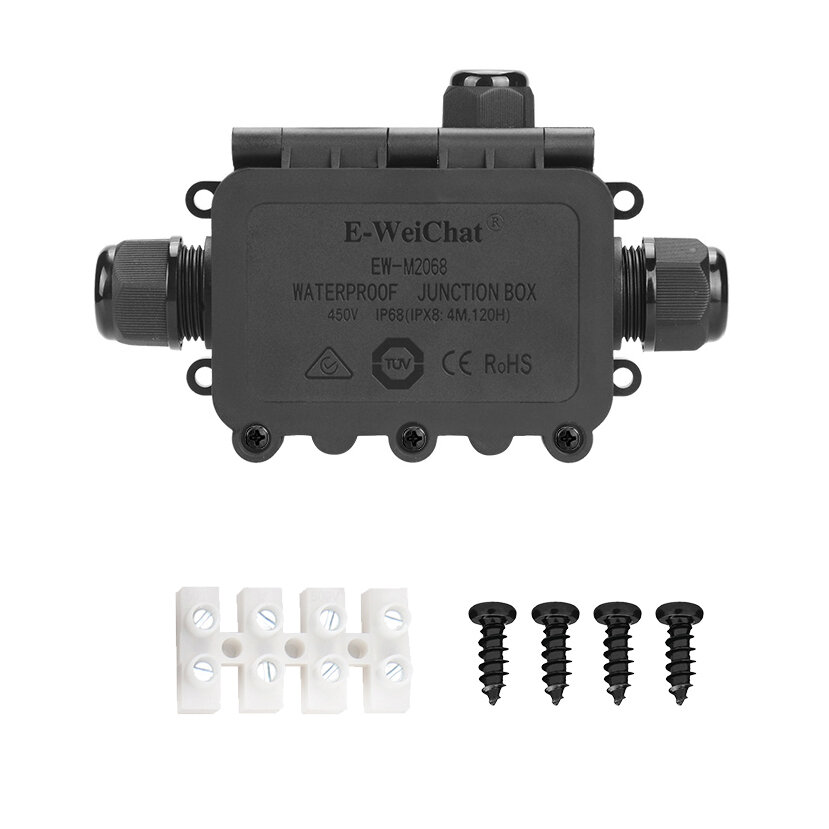

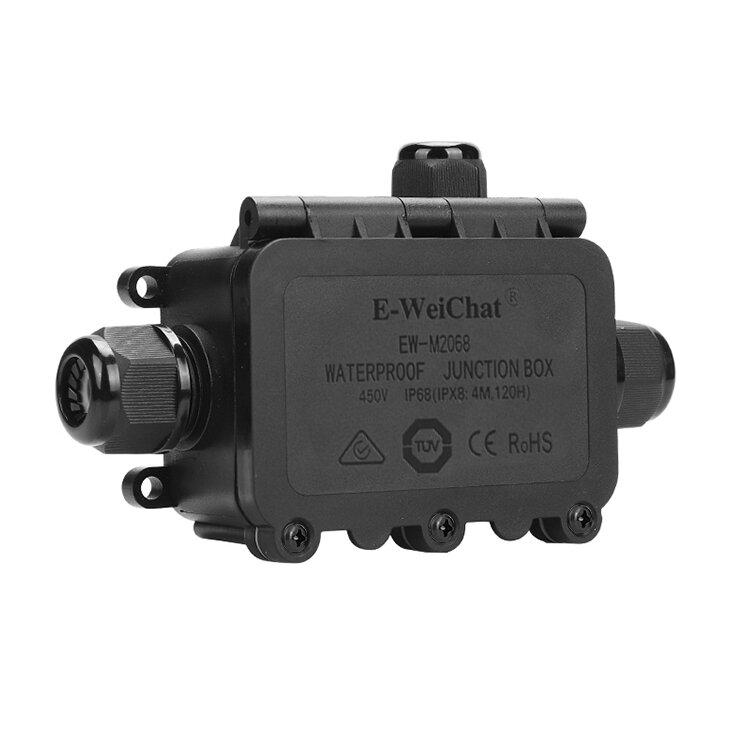

EEW-M2068-3T 3-Way Waterproof Cable Junction Box

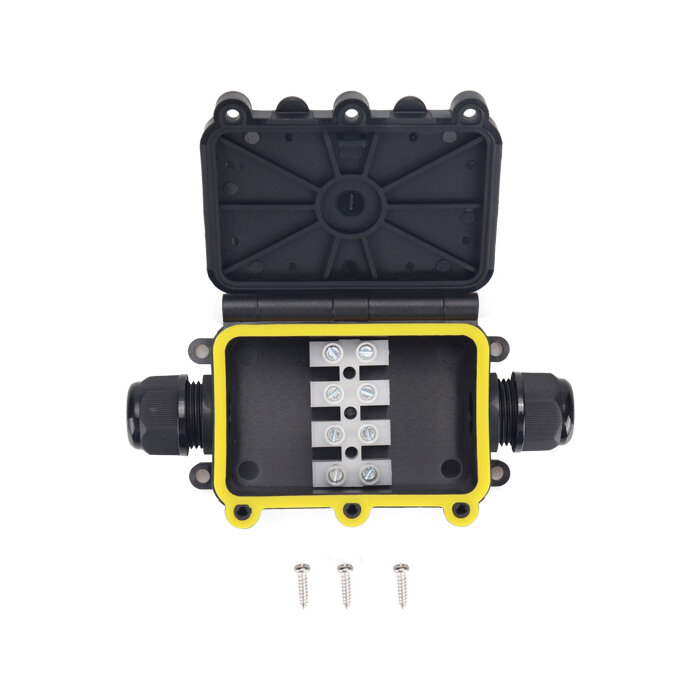

The EW-M2068-3T 3-Way Waterproof Cable Junction Box ensures error-free installation. Glands at the box's connection points simplify installation. Integrated, milled cable glands allow for the installation of small-section cables.
These junction boxes, certified up to IP68, provide waterproof and dust-proof connections without the use of resin or gel. Their compact dimensions make them accessible and particularly suitable for connections in small spaces or those containing electronic and electromechanical components.

The junction boxes are suitable for gas stations, mines, processing plants, irrigation, agriculture and cultivation, greenhouses, water treatment, monitoring, submersible pumps, and power distribution. Made of high-quality plastic, it won't crack or fade in sunlight and is durable for years of use.

Features

Voltage: 450V
Current: 40A
Shell Material: PA66
Cable Diameter: 5-9mm 9-12mm
Cable Cross-Section: 0.5 ~ 6mm2
Operating Temperature: -40 ~ 105°C
