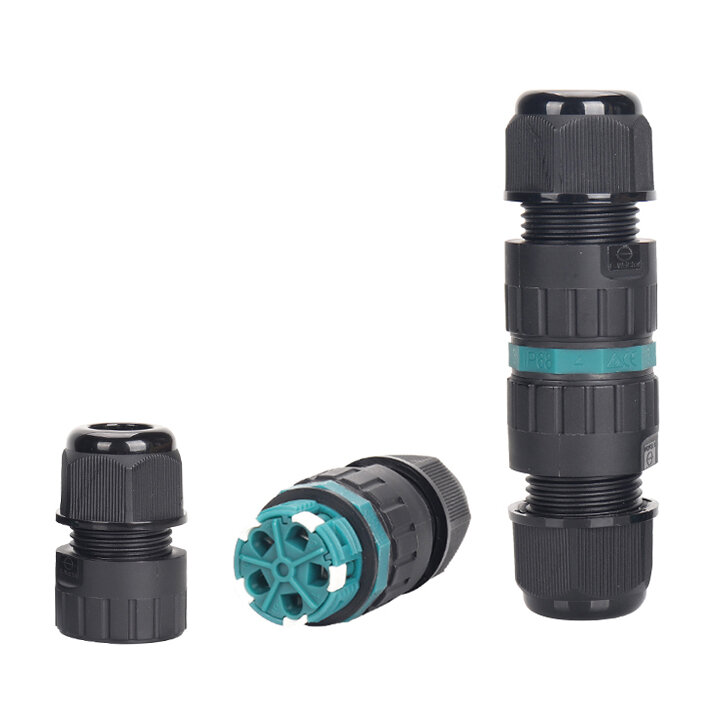

EW-P25-5P 5-Pin Waterproof Connector

EW-P25-5P 5-Pin Waterproof Connector

EW-P25-5P 5-Pin Waterproof Connector, E-Weichat waterproof connectors are designed to protect electrical connections in humid, dusty, and harsh environments. These connectors feature a special sealing structure and waterproof materials that effectively prevent water, dust, and other contaminants from entering the connector, ensuring reliable and safe electrical connections.

They have a high waterproof rating of IP68, allowing them to operate underwater for extended periods without damage. They are widely used in outdoor equipment, lighting devices, industrial equipment, marine electronics, transportation rails, and other applications.

E-Weichat waterproof connectors are designed for easy installation and maintenance with their plug-and-play design. They also feature a self-locking mechanism to ensure secure connections. Additionally, these connectors offer properties such as high-temperature resistance, low-temperature resistance, and chemical resistance, making them suitable for a variety of harsh environmental conditions.

Features

• Number of Pins: 5
• Voltage: 450V
• Current: 16A
• Shell Material: PA66
• Cable Diameter: 10-14mm
• Cable Cross-Section: 0.5 ~ 2.5mm2
• Operating Temperature: -40 ~ 105°C
