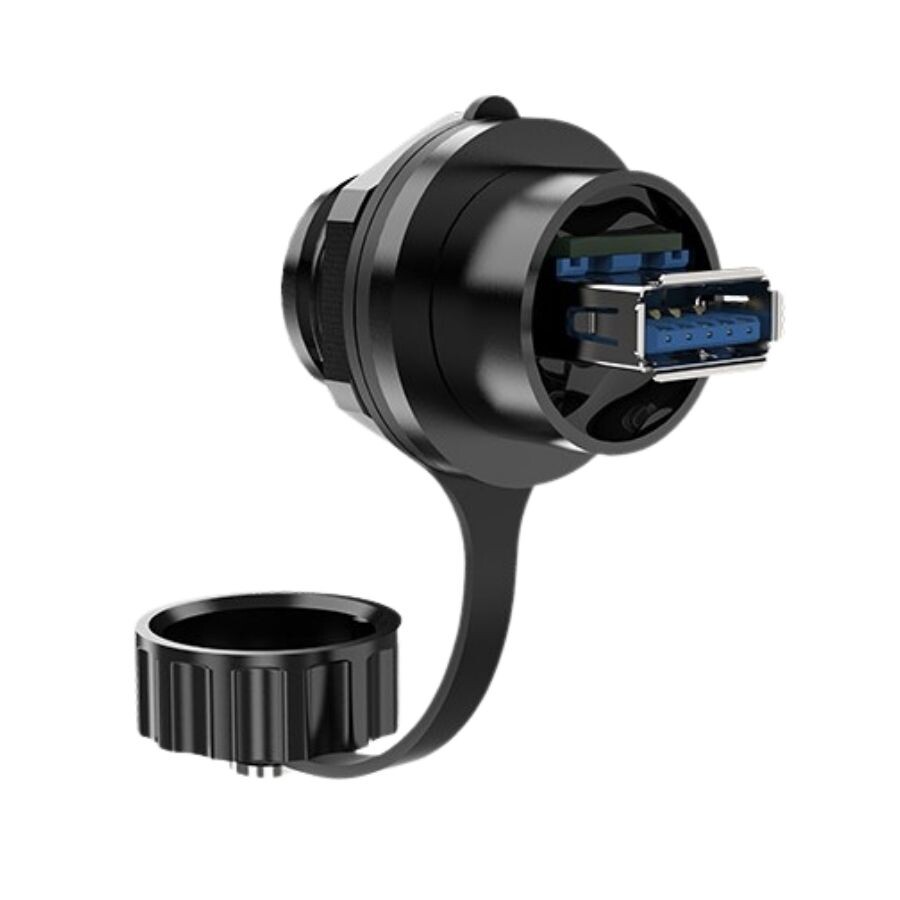

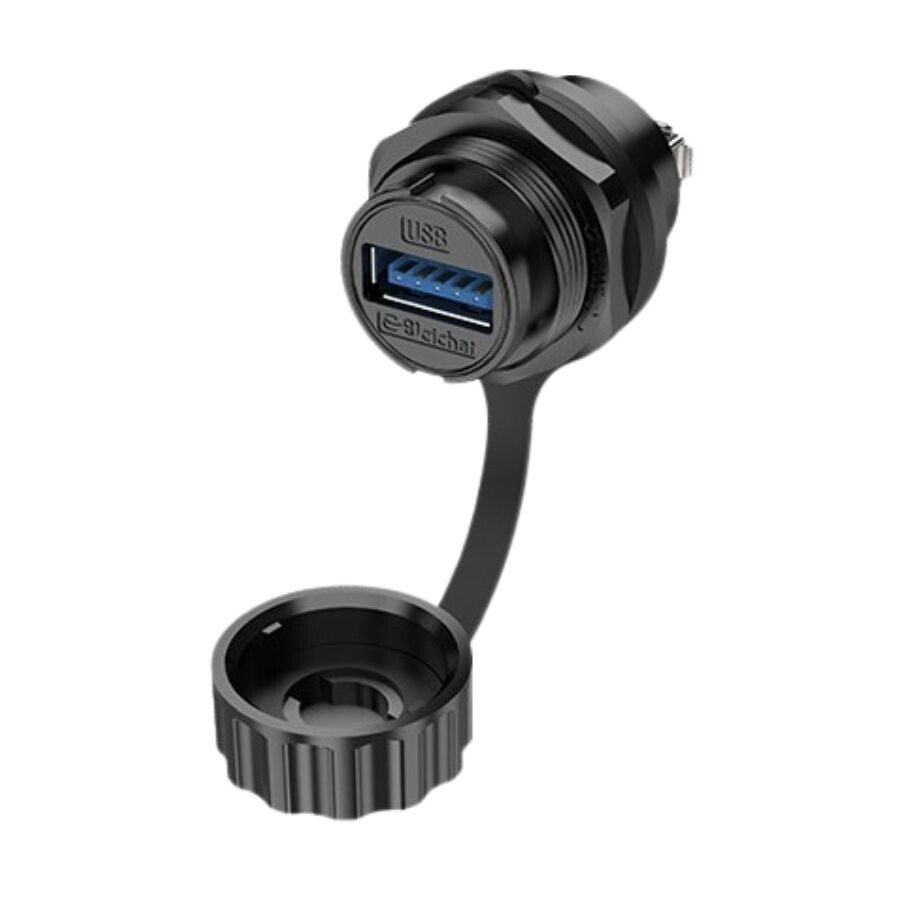

EW-USB3.0 Waterproof USB Connector - Female
EW-USB3.0 Waterproof USB Connector - Female, shell protection device design of USB industrial protection, has good insulation properties, while supporting USB3.0 using internal external work, plug and play, quick can be replaced, no need to open the chassis directly, use the electrical junction box connection more convenient and reliable, fully meet the demand for junction box. These connectors meet the different needs of the industry and meet the International environmental protection of industrial equipment.
Technical Specifications
- USB 3.0 - USB2.0
- IP67 rating when connected
- Material: Plastic
- Transmission Speed: 10.0Gb/s
- Rated Current: 2 Amps
- Rated Voltage: 30VDC
- Insulation Resistance: 500Mohm
- Withstand Voltage: 100VDC
- Ingress Protection: 67
- Working Temperature:-40 C - 80 C
