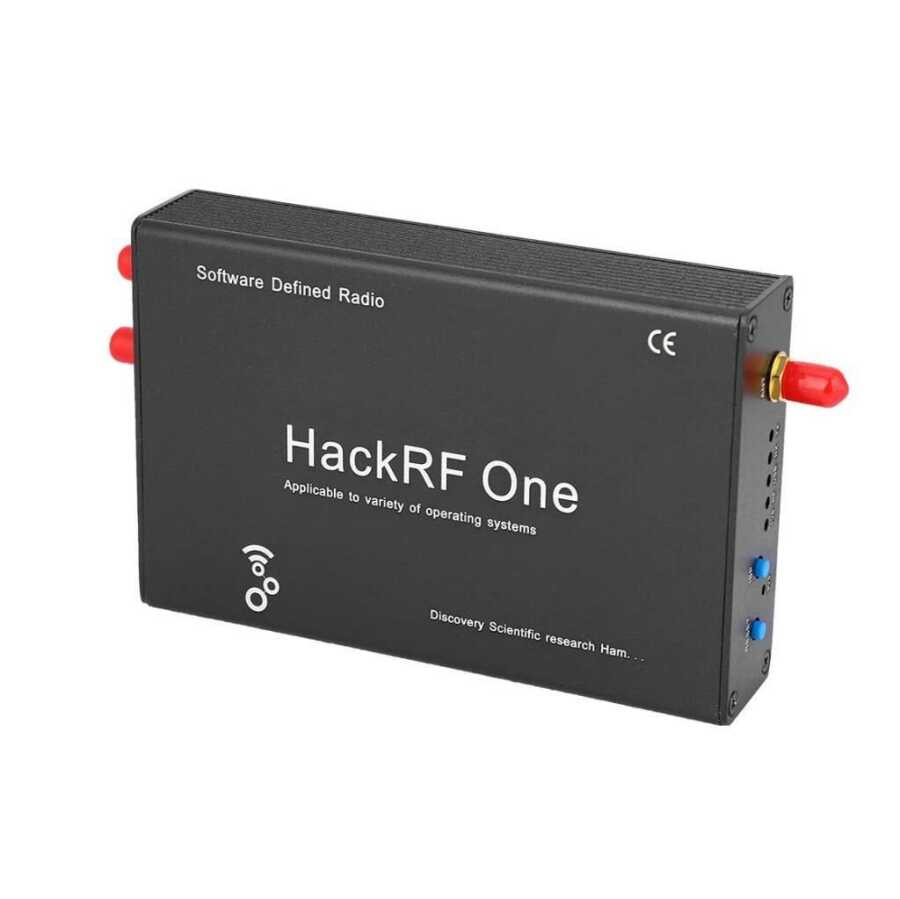

HackRF One SDR Development Board
HackRF One from Great Scott Gadgets is a device that can transmit or receive radio signals from 1 MHz to 6 GHz. It is a Software Defined Radio peripheral. Designed to enable the testing and development of modern and next-generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for standalone operation.
Technical Specifications
- 1 MHz to 6 GHz operating frequency
- half-duplex transceiver
- up to 20 million samples per second
- 8 -bit quadrature examples (8-bit I and 8-bit Q)
- Compatible with GNU Radio, SDR# and more
- Software configurable RX and TX gain and baseband filter
- LI>
- software-controlled antenna port power (50 mA at 3.3 V)
- SMA female antenna connector

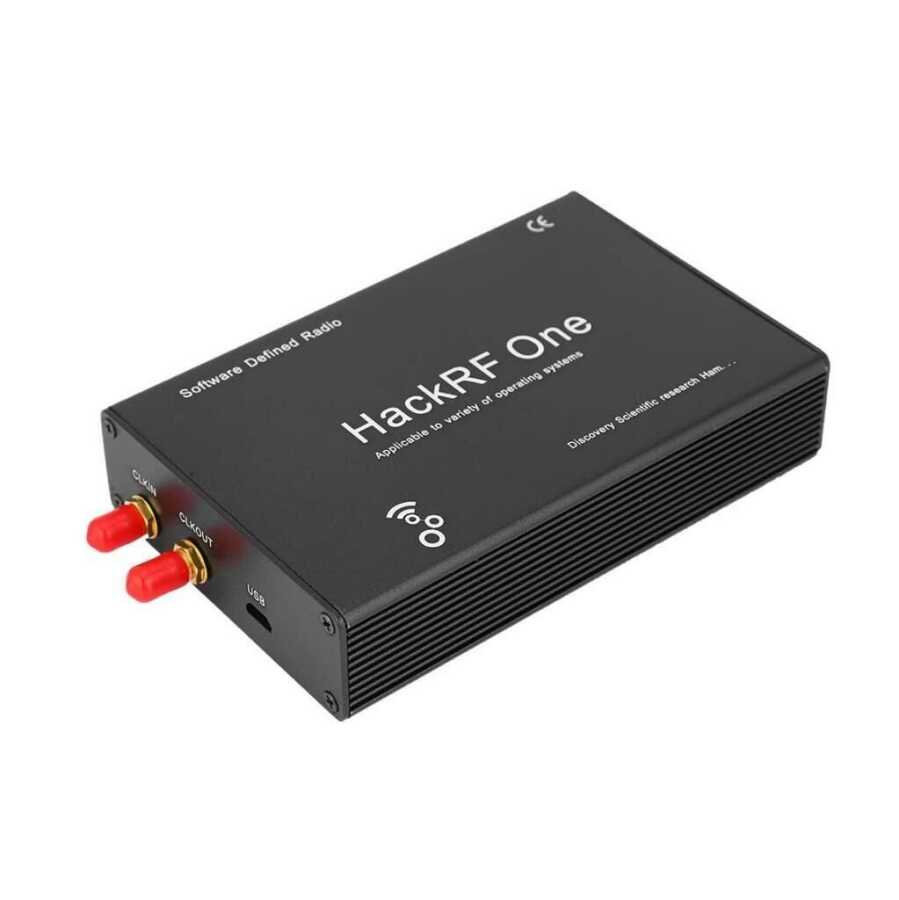

- SMA female clock input and output for synchronization
- convenient buttons for programming
- internal pin headers for expansion
- Hi-Speed USB 2.0
- USB supported
- open source hardware

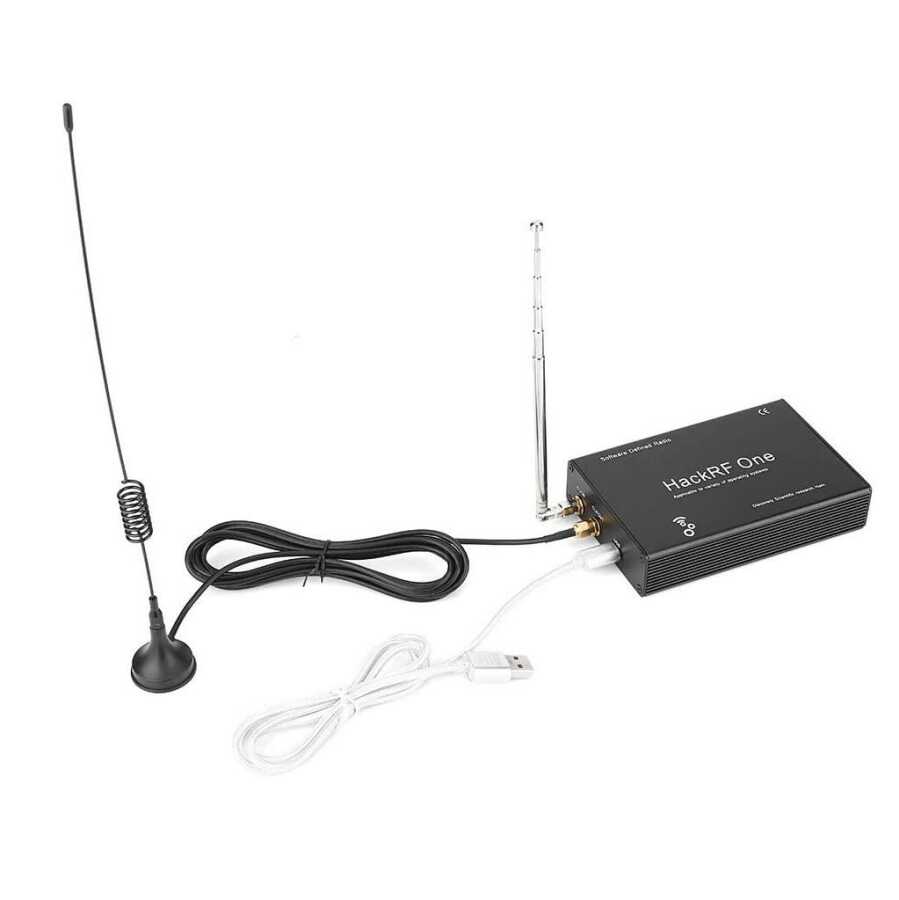

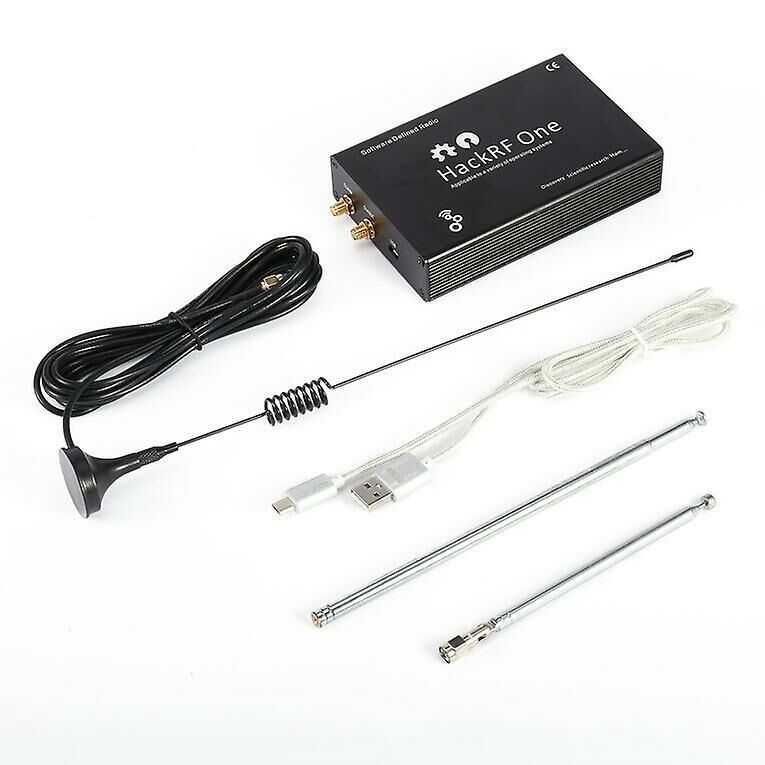

- HackRF One has an injection-molded plastic housing and ships with a micro USB cable. Antenna not included. ANT500 is recommended as a starter antenna for HackRF One.
