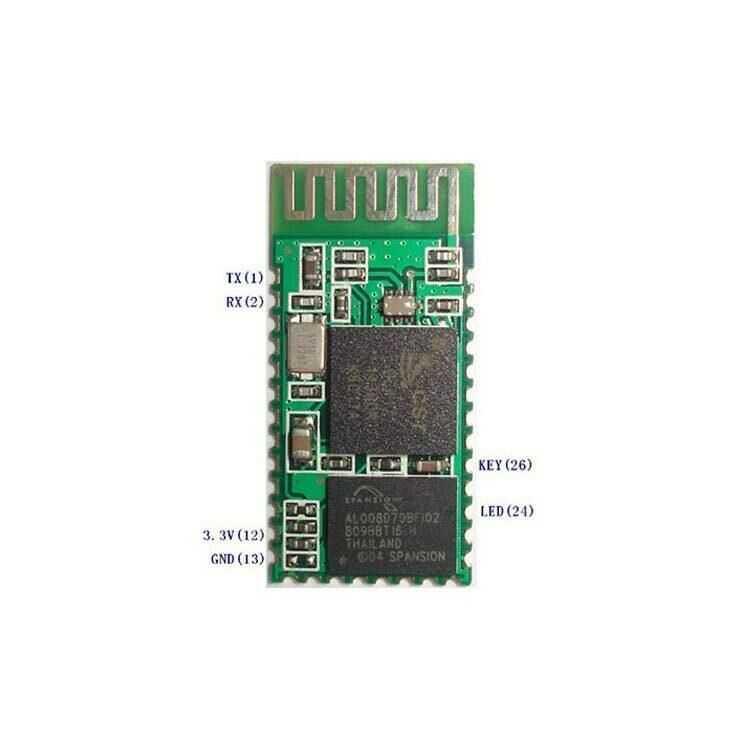

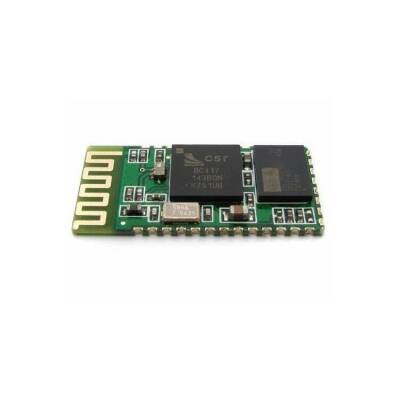

HC06 Bluetooth - Serial Module Card

HC06 Bluetooth Module can be connected to any device that supports the Serial Port Standard - SPP protocol and can be used in wireless communication projects. It is a Bluetooth V2.0 + EDR 3Mbps modulation with a 2.4GHz radio transceiver. It has a communication distance of 10 meters in open areas.

HC05 Bluetooth Module can be used in Master, Slave or Loopback modes, while the HC06 Bluetooth Module can only be used in Slave mode.

If you are going to use it with Breadboard and Arduino, it is easier to use because its pins are outside. HC06 DIP Module.

Bluetooth Protocol: Bluetooth 2.0+EDR(Enhanced Data Rate)
2.4GHz communication frequency
Sensitivity: ≤-80 dBm
Output Power: ≤ +4 dBm
Asynchronous Speed: 2.1 MBps/160 KBps
Synchronous Speed: 1 MBps/1 MBps
Security: Authentication and Encryption
Operating Voltage: 1.8-5V(Recommended 3.3V)
Current: 50 mA
Dimensions: 26.9x13x2.2mm

You can use it in Arduino and Raspberry Pi projects, robotics and academic projects.

HC06 Bluetooth Serial Communication Module Usage

HC06 Arduino Library
