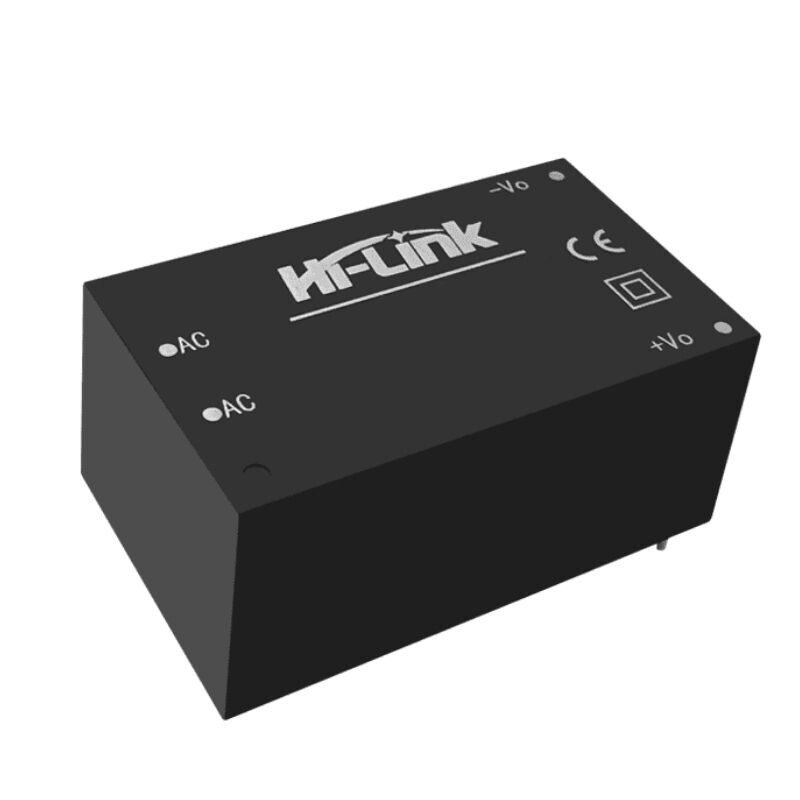

Name: HLK-50M09C AC 220V to DC 9V 45W PCB-Type Voltage Converter
Brand: Hi-Link
SKU: KOM.TFO.08.000049
Price: 903.00 TRY
Availability: InStock

HLK-50M09C AC 220V to DC 9V 45W PCB-Type Voltage Converter

The Hi-Link AC-Dc voltage converter is a voltage converter used to convert 220VAC mains input voltage to DC voltage. This type of voltage converter is used when we want to convert or reduce AC input voltage.

The product's input and output voltages are specified in the product name and technical specifications. Please check the input and output voltage values before selecting the product.

Short circuit protection is provided. It has a long-lasting design with an MTBF of ≥ 100,000H.

NOTE: For bulk purchases, we can produce the desired values or cable lengths. For special requests, please send an email to info@motorobit.com.

Technical Specifications

Input Voltage: 100 - 240VAC
Output Current: 5 A
Output Voltage: 9 VDC
Output Power: 45W
Isolation Voltage: 3000V
Short Circuit Protection
Operating Temperature Range: -25°C ~ +60°C
Dimensions:57.5 X 33.4 X 28mm

Typical Circuit Connection

HLK-50mxxc-devre

hlk-50MxxC-multi-channel-application-circuit
