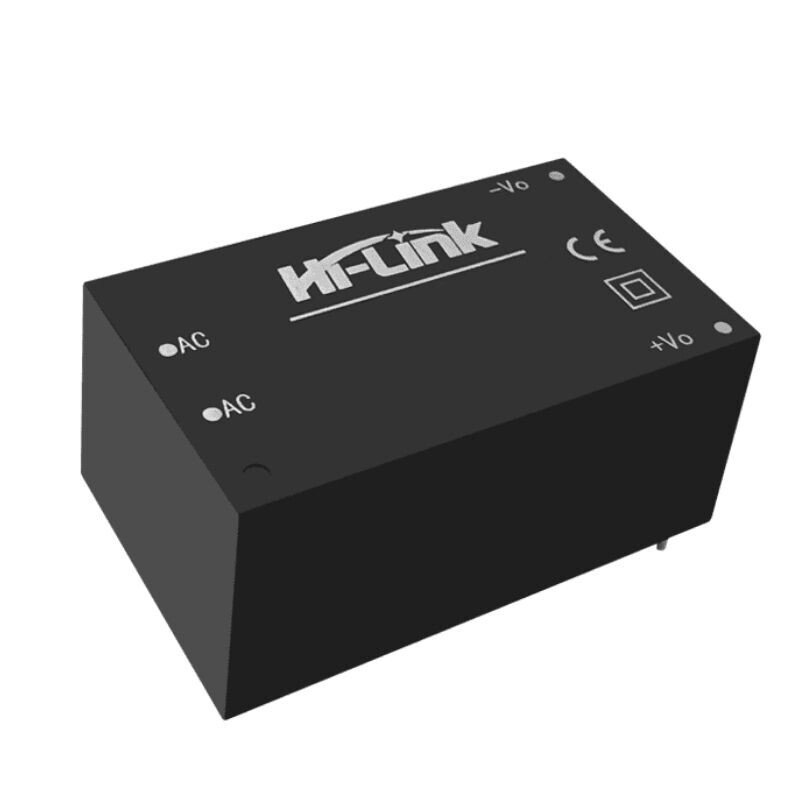

HLK-50M12C AC 220V to DC 12V 50W PCB-Type Voltage Converter
The Hi-Link AC-Dc voltage converter is a voltage converter used to convert 220VAC mains input voltage to DC voltage. These voltage converters are used when we want to convert or reduce AC input voltage.
The product's input and output voltages are specified in the product name and technical specifications. Please check the input and output voltage values before selecting the product.
Short circuit protection is provided. It has a long-lasting design with an MTBF of ≥ 100,000H.
NOTE: For bulk purchases, we can produce the desired values or cable lengths. For special requests, please send an email to info@motorobit.com.
Technical Specifications
- Input Voltage: 100 - 240VAC
- Output Current: 4.2 A
- Output Voltage: 12 VDC
- Output Power: 50W
- Isolation Voltage: 3000V
- Short Circuit Protection
- Operating Temperature Range: -25°C ~ +60°C
- Dimensions: 57.5 X 33.4 X 28mm
Typical Circuit Connection
.png)
