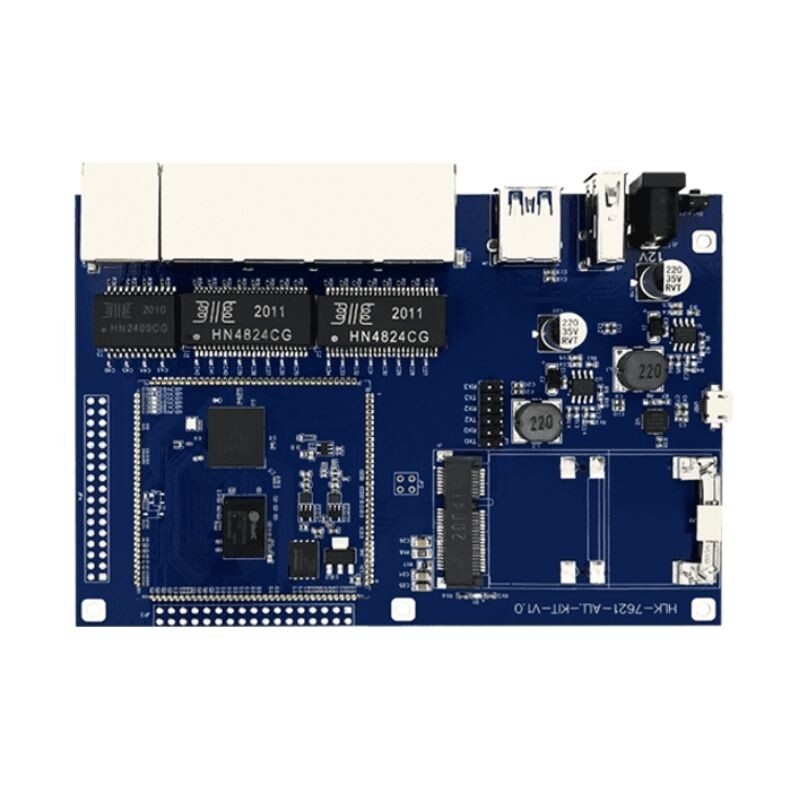

HLK-7621 GbE Gigabit Ethernet Router Development Kit

HLK-7621 GbE Gigabit Ethernet Router Development Kit

HLK-7621 GbE Gigabit Ethernet Router Development Kit features the HLK-7621A module. It uses the MT7621A chipset. MT7621A integrates true-core MIPS-1004Kc(880MHz), HNAT/HQoS/Samba/VPN accelerators, 5-port GbE switch, RGMII, USB3.0, USB2.0, 3xPCIe, SD-XC. Powerful CPU with rich portfolio, suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN,AC (Access Control). It can also connect to the touch panel, ZigBee/Z-Wave for Internet Service Router, and Home Security Gateway. MT7621A for next-generation router provides a variety of dedicated hardware engines to accelerate NAT, QoS, Samba and VPN traffic. These accelerators free up the CPU for other upper layer applications.

Kit Content

• HLK-7621 Module
• Adapter

Features

• Embedded MIPS1004Kc (880 MHz, Dual Core) 32 KB I-Cache and 32 KB D-Cache per core 256 KB L2 Cache (shared by Dual Core.
• Gigabit Switch
  5 ports with full line speed
  5 port 10/100/1000Mbps MDI transceivers
• RGMII/MII interface
• 16-bit DDR2/3, up to 256/512 Mb
• USB3 x 1+ USB2 x 1 or USB2 x 2
• PCIe host x 3
• Audio Interface (SPDIF-Tx, I2S, PCM)
• Interface: I2C, UART Lite x 3, JTAG, MDC, MDIO, GPIO
• Firmware: Linux 2.6 SDK, OpenWRT

Block Diagram
