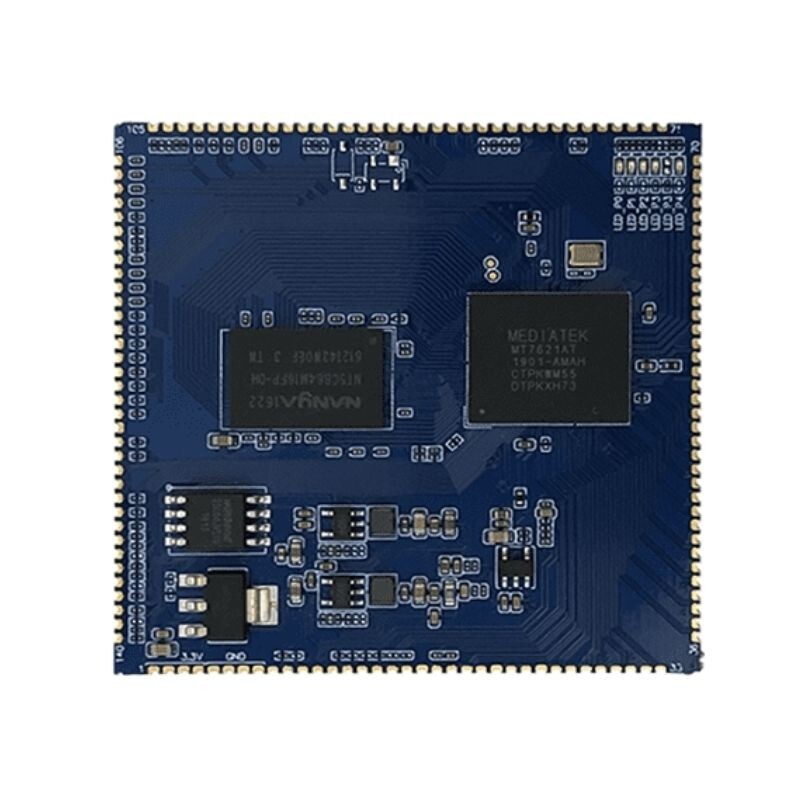

HLK-7621 GbE Gigabit Ethernet Router Module

HLK-7621 GbE Gigabit Ethernet Router Module

HLK-7621 GbE Gigabit Ethernet Router Module uses the HLK-7621A module MT7621A chipset . MT7621A integrates true-core MIPS-1004Kc(880MHz), HNAT/HQoS/Samba/VPN accelerators, 5-port GbE switch, RGMII, USB3.0, USB2.0, 3xPCIe, SD-XC. Powerful CPU with rich portfolio, suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN,AC (Access Control). It can also connect to the touch panel, ZigBee/Z-Wave for Internet Service Router, and Home Security Gateway. MT7621A for next-generation router provides a variety of dedicated hardware engines to accelerate NAT, QoS, Samba and VPN traffic. These accelerators free up the CPU for other upper layer applications.

Specifications

• Embedded MIPS1004Kc (880 MHz, Dual Core) 32 KB per core I -Cache and 32 KB D-Cache 256 KB L2 Cache (shared by Dual Core.
• Gigabit Switch
  5 ports with full line speed
  5-port 10/100/1000Mbps MDI transceivers
• RGMII/MII interface
• 16 bit DDR2/3, up to 256/512 Mb
• Interface: I2C, UART Lite x 3, JTAG, MDC, MDIO, GPIO
• Firmware: Linux 2.6 SDK, OpenWRT

Block Diagram
