HLK-B35 Serial WIFI+Bluetooth 5.0 Development Kit

HLK-B35 Serial WIFI+Bluetooth 5.0 Development Kit

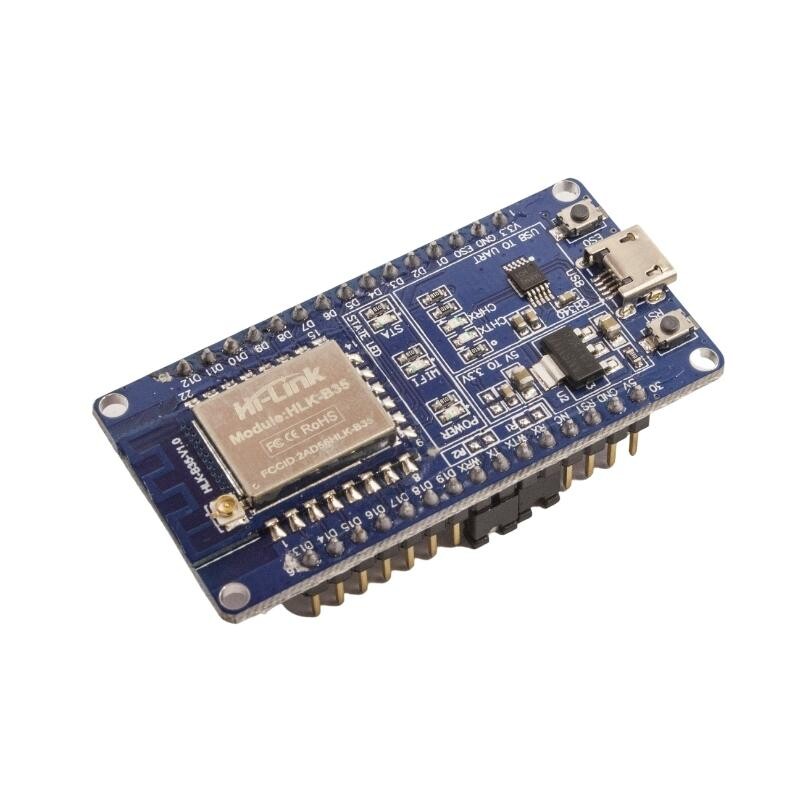

HLK-B35 Serial WIFI+Bluetooth 5.0 Development Kit, 2.4G radio, Wi-fi 802.11b/g/ It has a module containing BLE5.0 based on the n standard. Includes 32-bit RISC CPU. There is DFS frequency support from 1MHz to 192MHz. It has internal 276KB ram, 128Kb ROM, 1Kb eFus, 2m built-in flash.

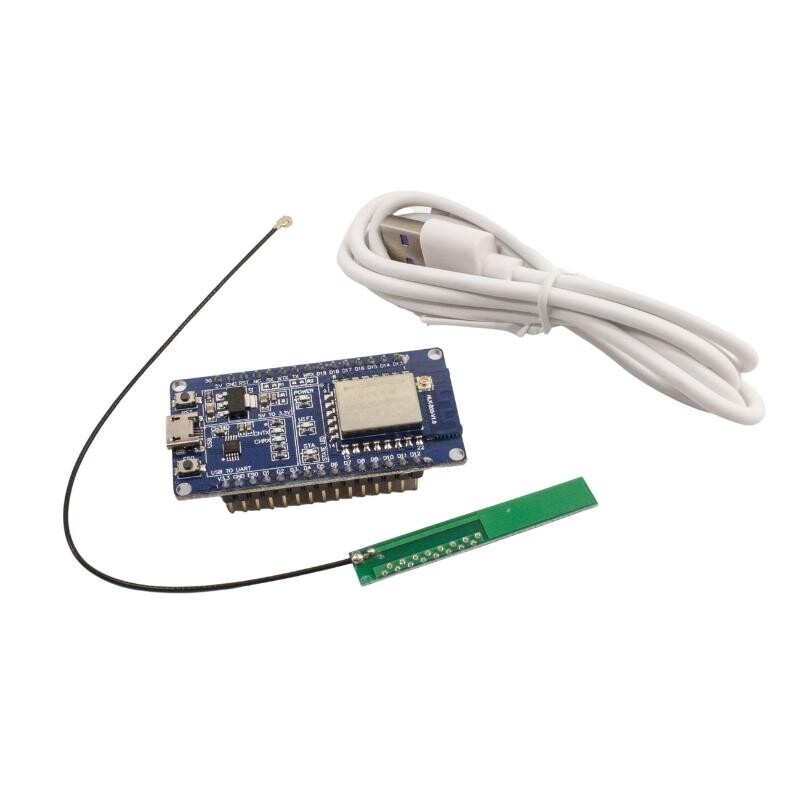

Kit Content

• HLK-B35 Module
• 1x Micro USB Cable
• 1x PCB Antenna - with UFL connector

System Structure

Features

• Supply Voltage: 3.3VDC
• Chip: BL6XXX
• Frequency: 2.402 -2480Ghz
• Protocol Standard: 2.4g WIFI + BLE 5.0
• Transmission Power: 15-21 dBm
• Flash: 276Kb / 2MB
• Wireless Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
• Size: 24x16.2mm
