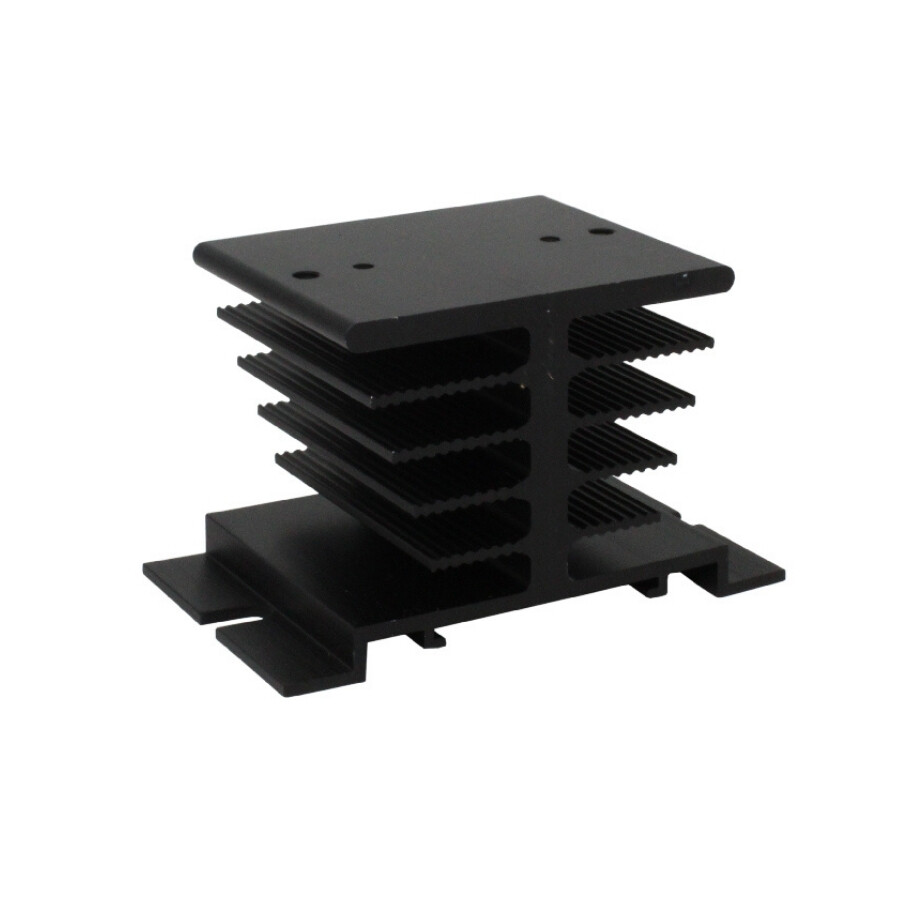

I-50 SSR 10-40A Relay Compatible Heatsink

The I-50 SSR 10-40A Relay Compatible Heatsink is designed to dissipate heat generated by SSRs. SSRs control high-power electrical loads more efficiently and reliably than traditional mechanical relays. Manufactured from aluminum, this heat sink was selected for its excellent thermal conductivity, which helps effectively transfer heat from the SSRs to the surroundings.

The dimensions provided refer to its physical measurements. These dimensions are critical to ensuring compatibility and proper fit within the intended system. Designed for SSRs handling currents ranging from 10A to 40A, this heat sink is designed to manage the thermal demands associated with these electrical loads. Usually, heat sinks are attached to the SSRs using thermal paste or pads to ensure optimum thermal contact, allowing heat to flow efficiently from the SSRs to the heat sink.

When selecting a heat sink for SSRs, it is important to consider the specific requirements of your system, ensuring compatibility in terms of current handling capacity, size, and heat dissipation required to maintain safe operating temperatures for the SSRs.

Features

Material: Aluminum
Compatible Relay: 10-40A SSRs
Mounting Hole Diameter: 5mm
Mounting Hole Distance: 70mm

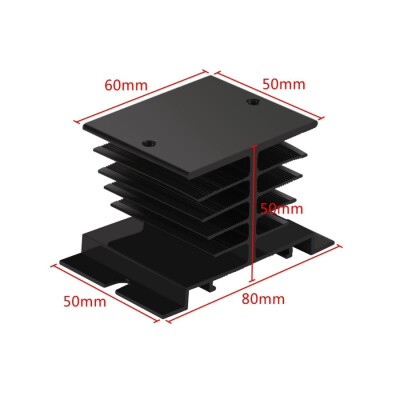

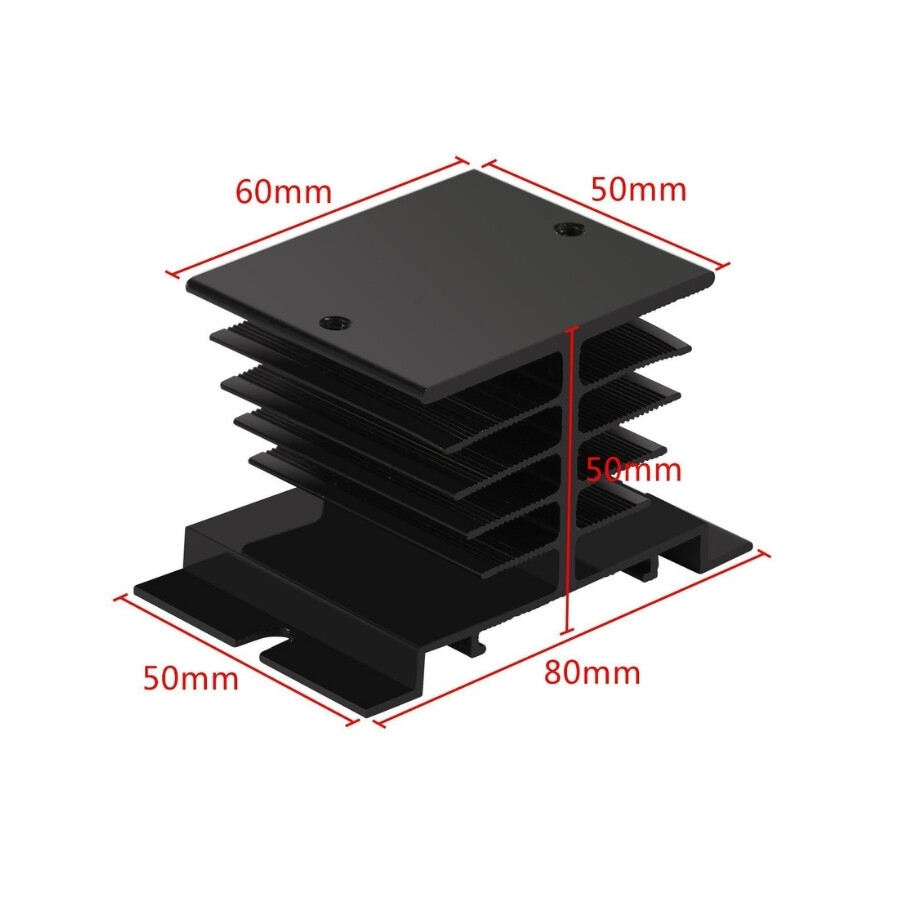

Dimensions: 80x50x50mm
