IP2368 4S 16.8V 100W LiPo Battery Fast Charging Module

IP2368 4S 16.8V 100W LiPo Battery Fast Charging Module

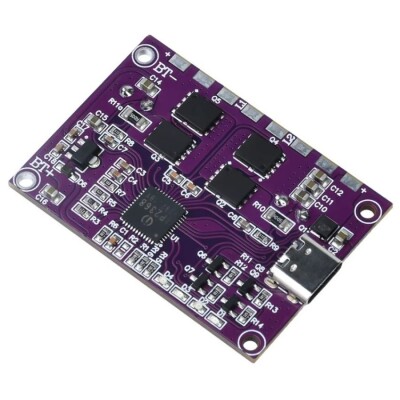

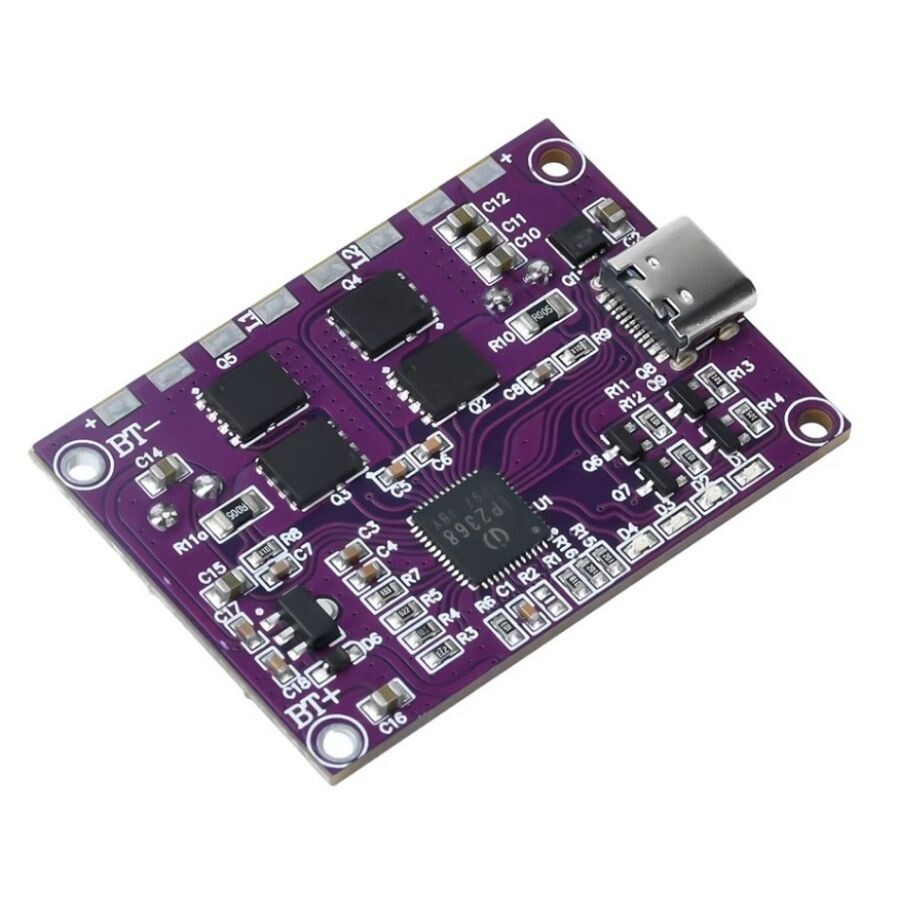

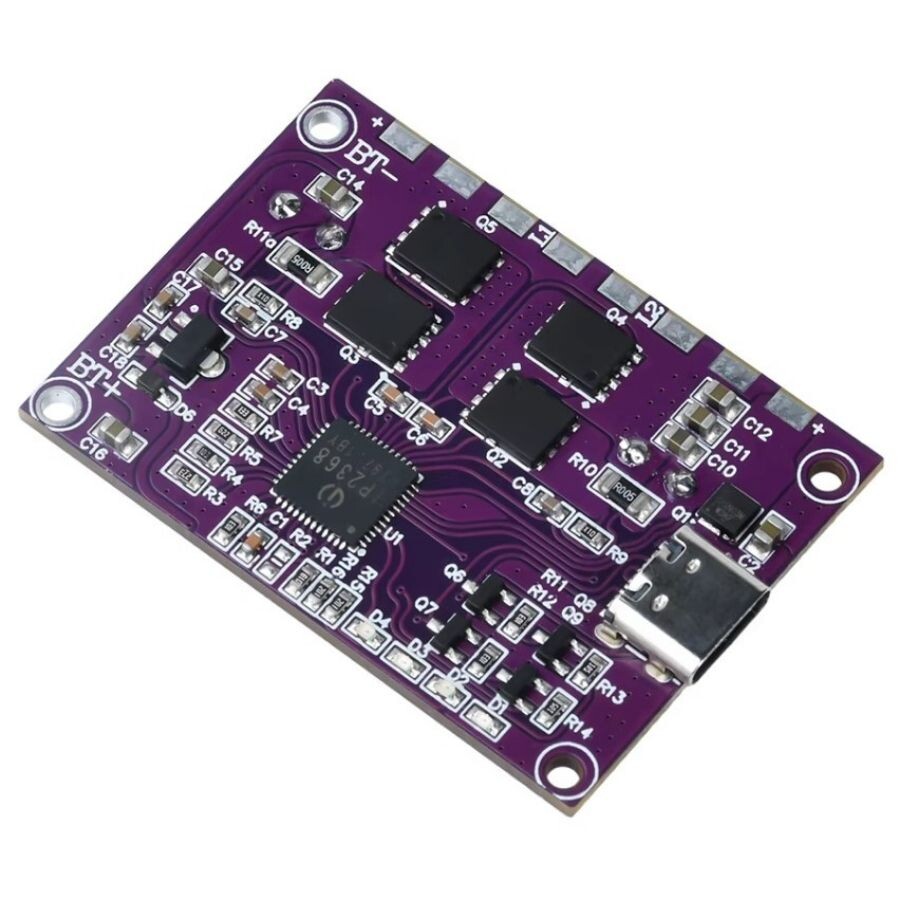

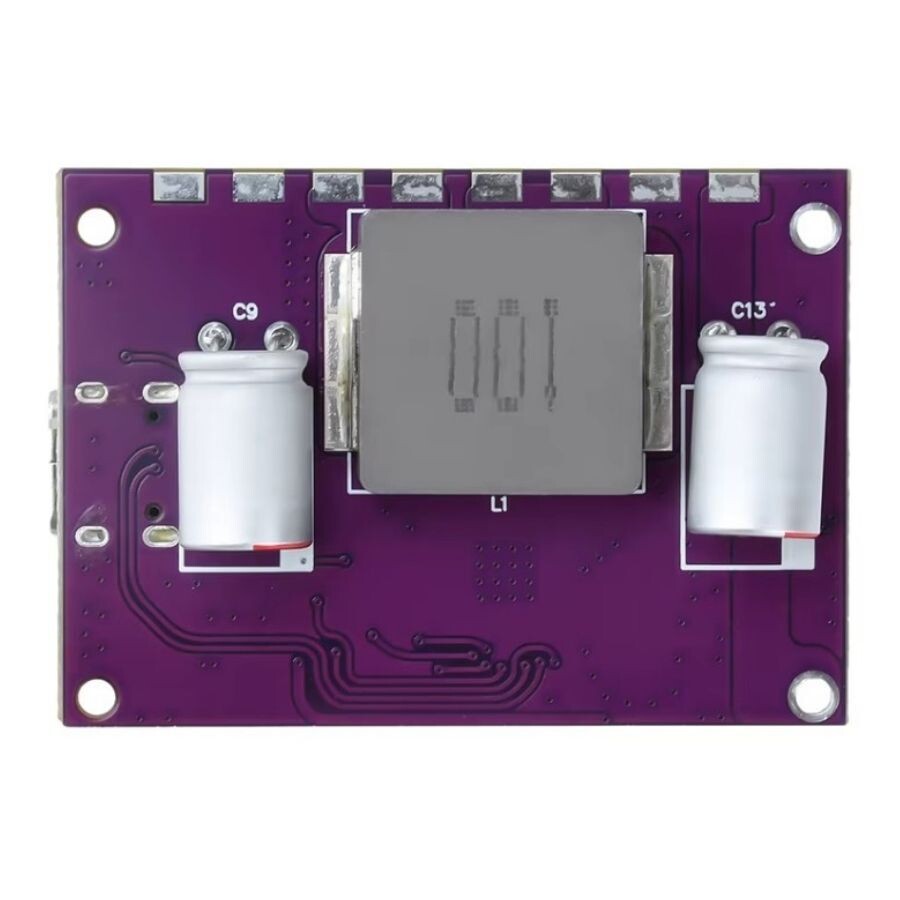

The IP2368 4S 16.8V 100W LiPo Battery Fast Charging Module is a bidirectional power management module with a Buck-Boost converter structure, designed to high-speed charge lithium battery packs and provide high-power energy to connected devices via USB Type-C. Using the IP2368 main control integrated circuit, the board can perform both input/charging and output/power supply operations through a single Type-C connection.

Bidirectional Charging and Discharging

One of the most important features of the module is that the Type-C port can be used bidirectionally.

When a PD-enabled adapter is connected to the Type-C port, the module directs the energy flow in the input direction to charge the battery pack.

When an external device is connected to the Type-C port, energy is transferred from the battery to the device, and the module functions like a high-power power bank control board. This design allows a single Type-C port to be used as both a charging input and a power output. 100W High Power Support The maximum power capacity of the IP2368 module is stated as 100W. However, suitable battery, charger, voltage, and load conditions must be met for 100W operation. While 100W of power can be obtained at a 20V PD level, the maximum power/current value may differ at lower voltages. For example, at the 12V level, depending on the source and load conditions, the power may be limited to around 36W.

Therefore, it should not be assumed that the module will provide 100W output in all cases just by looking at the "100W" designation.

Specifications

• IC: IP2368
• Continuous operating current: 18A

• Overcharge voltage: 4.235V ± 0.025V

• Instantaneous current: 30A

• Overcharge release voltage: 4.190.05V

• Charging voltage: 16.8-17V

• Over-discharge voltage: 2.8+0.08V

• Charging current: 1-10A

• Over-discharge release voltage: 3.0+0.1V

• Balanced starting voltage: 4.19 ±0.05V
• Mounting Hole: M2
• Distance Between Mounting Holes: 43.5x28.5mm
