IR Controlled Relay Card 5V 8 Channel

It is a 5V 8 channel relay card that you can control with a remote control. It has On/Off mode.

8 channel 5V relay module is level triggered and suitable for IO port output.

Arduino, AVR, PIC, ARM, PLC, etc. It can be directly controlled by a wide range of microcontrollers, such as.

Relay coil with absorber diode protection.

Active-low signal input, VCC, GND power supply input terminal.

Remote Control Usage:

Only numeric keys work (1- 8)

When you press the button of the relay sequence you want to operate, the relay operates. When you press again, they stop.

After pressing the 0 button, they all start working.

After pressing the 9 button, they all stop.

Operating voltage: 5V

Control distance: 8m

Relay Board Size: 13.50 x 5.00 x 2.10cm

Remote Control Size: 8.50 x 4.00 x 0.60cm

Package content:

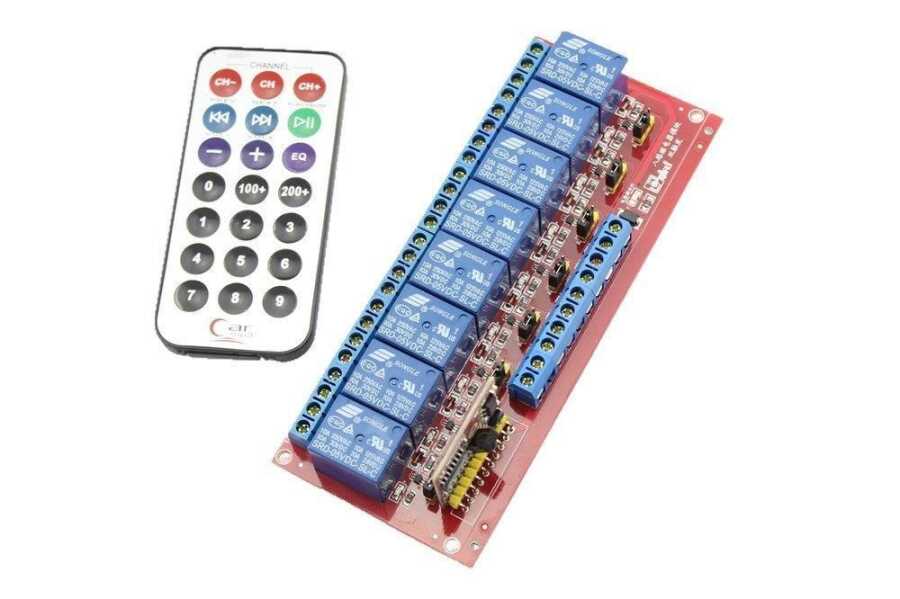

1 x 8 Channel 5V Relay Module

1 x Remote Control
