IRFP450 - 500V 14A N-Channel Power Mosfet - TO247
45,68
TL
+
VAT
54,81
TL
Notify Me When It Arrives
Notify Me When It Arrives

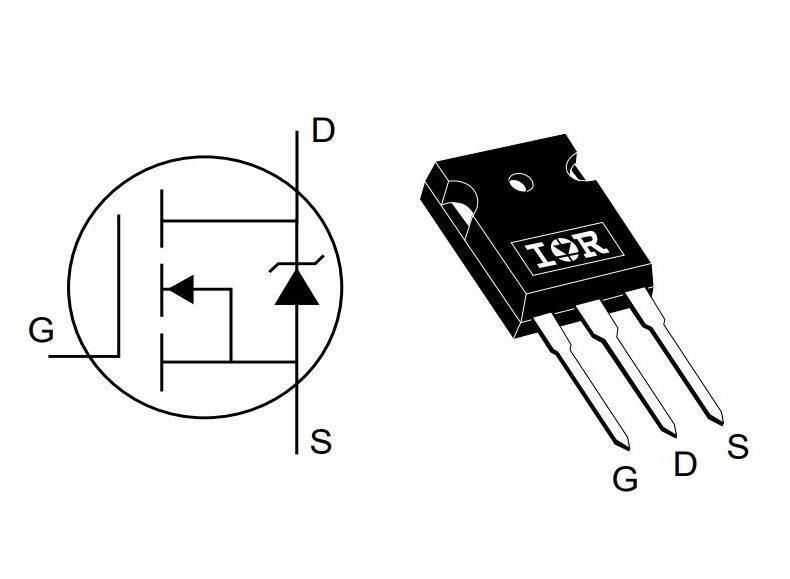

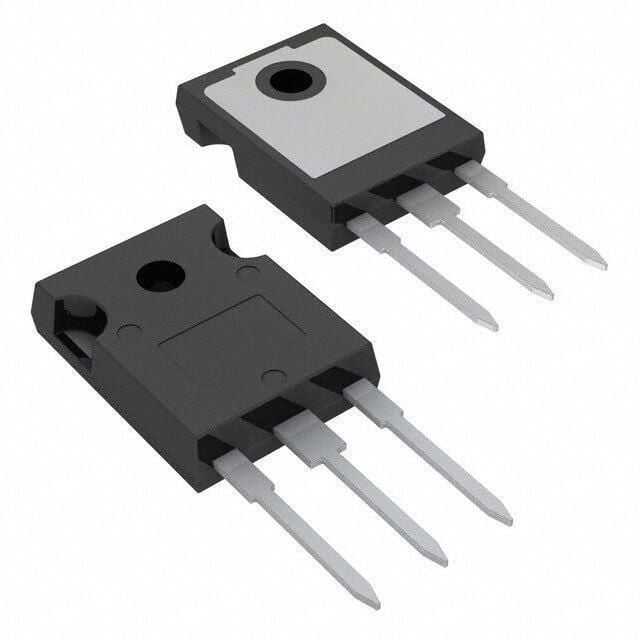

IRFP450 - 500V 14A N-Channel Power Mosfet - TO247
IRFP450 is a fast switching high voltage N with low state resistance -It is a channel MOSFET. The mosfet has a maximum drain to source voltage of 500V. The Mosfet will drain the source internal resistance as 0.38Ω when triggered with a 10V gate voltage.
Areas of Use
- Switch Mode Power Supplies (Smps)
- High Current, High Speed Switching
- Dc-Ac Converters for Welding Equipment and Uninterruptible Power Supplies and Motor Drives
| Series | IRFP |
| Vdss | 500V |
| Id | 14A |
| Power Pd | 190W |
| Rds(on) | 0.38Ω |
| Package Type | TO-247 |
