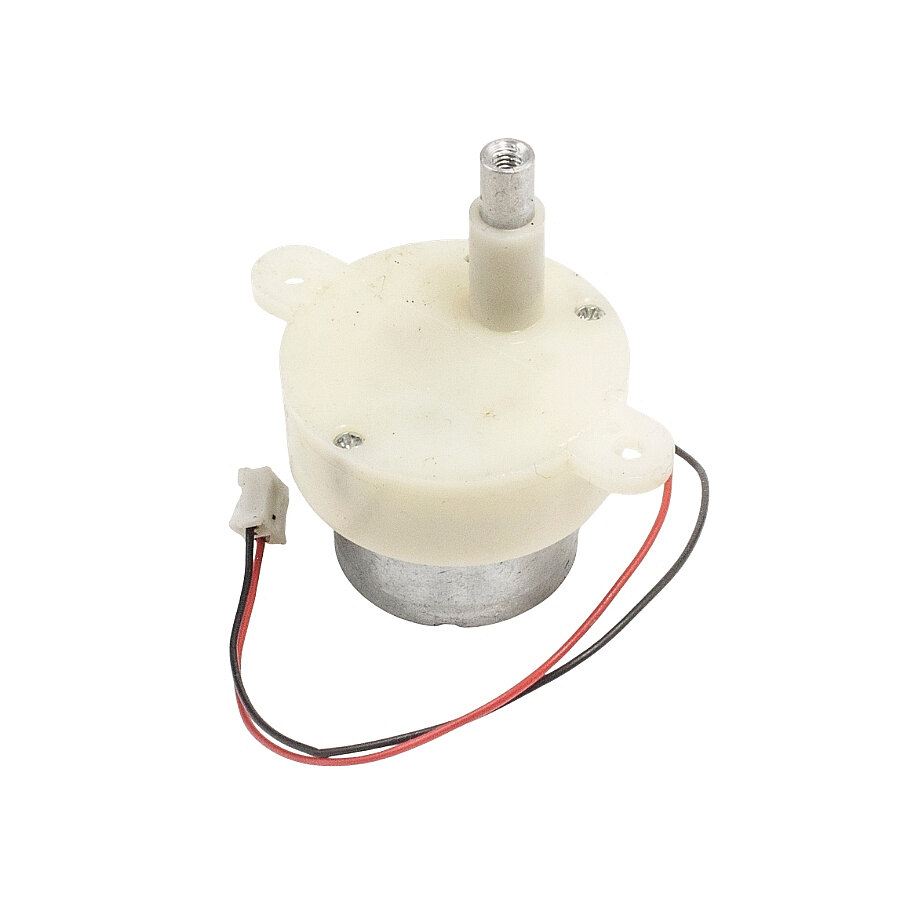

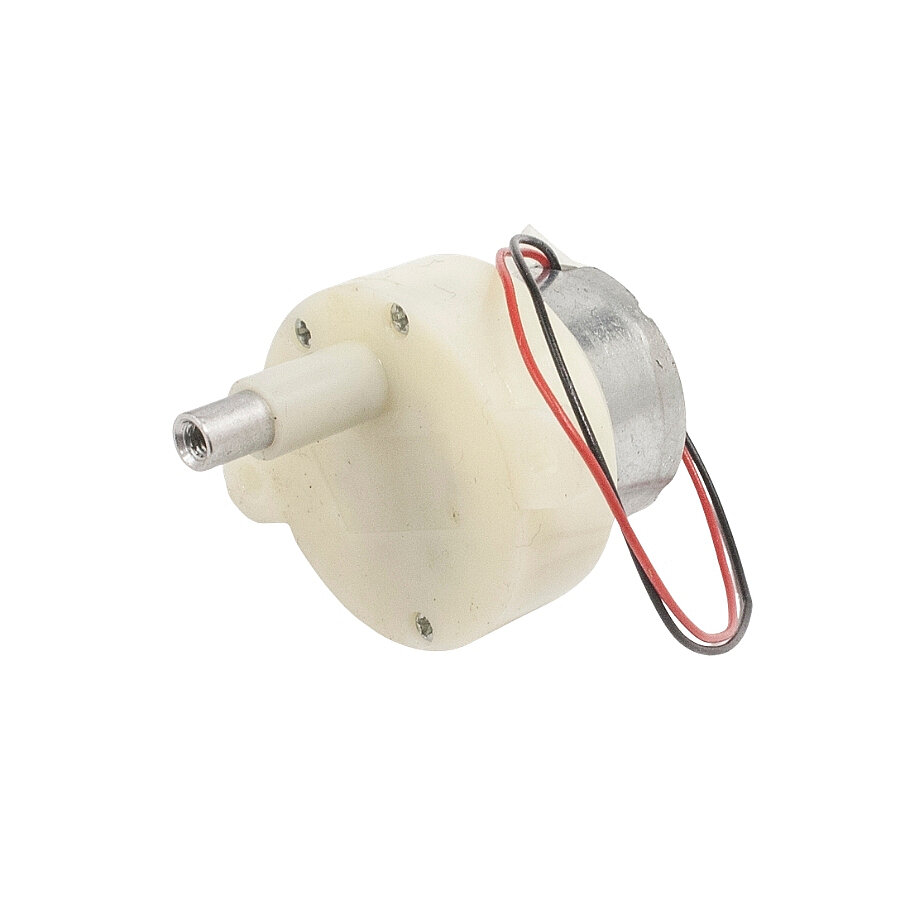

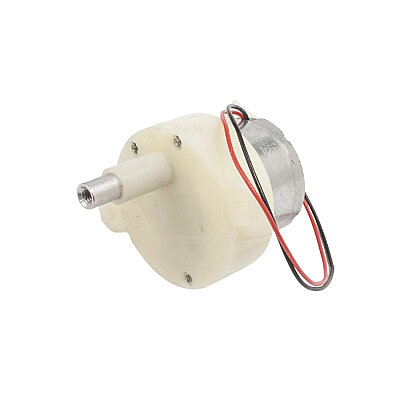

JS30 5V 4RPM Plastic Geared Motor

JS30 5V 4RPM Plastic Geared Motor

The JS30 5V 4RPM Plastic Geared Motor is a compact DC motor designed for applications requiring continuous and controlled rotational motion at low speeds. Thanks to its geared structure, it reduces the high-speed rotation of the motor, providing a more controlled and stable output movement.

Thanks to its compact body and low speed, it can be used in many applications such as rotating advertising panels, illuminated advertising systems, decorative lighting, product display stands, rotating mechanisms, handicrafts and electric toys.

Specifications

• Supply Voltage: 5VDC
• No-load Current: 0.01A
• Speed: 4RPM
• Shaft Diameter: 5mm
• Shaft Length: 18mm (Excluding Plastic Part: 6.5mm)
• Shaft Hole Diameter: 2.5mm
• Mounting Hole Diameter: 3mm
• Mounting Holes Distance Between Parts: 38mm
• Motor Diameter: 24mm
• Gearbox Diameter: 32mm
• Length: 43mm (Including Shaft)
