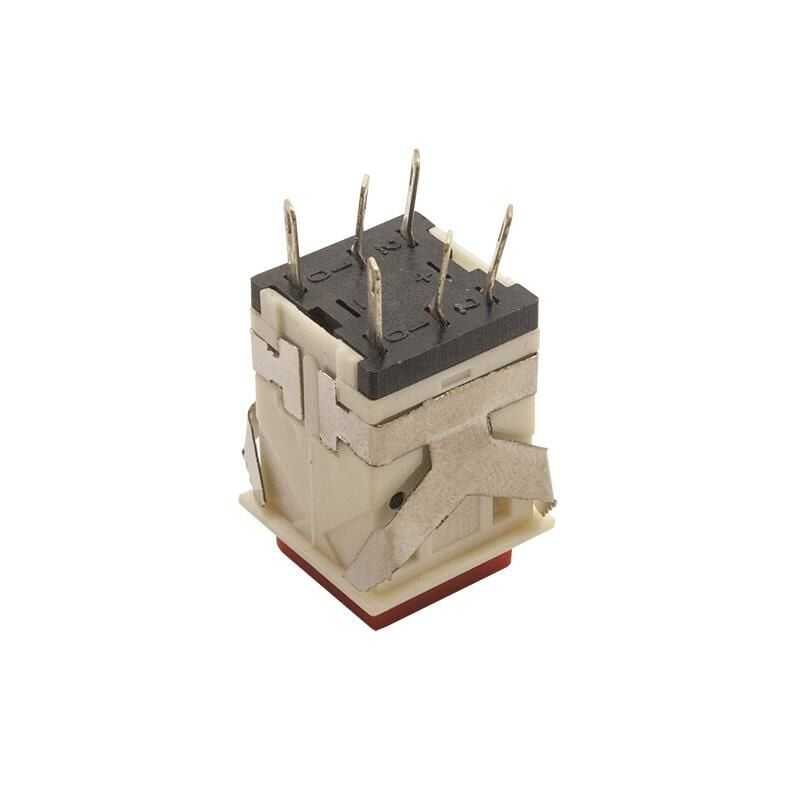

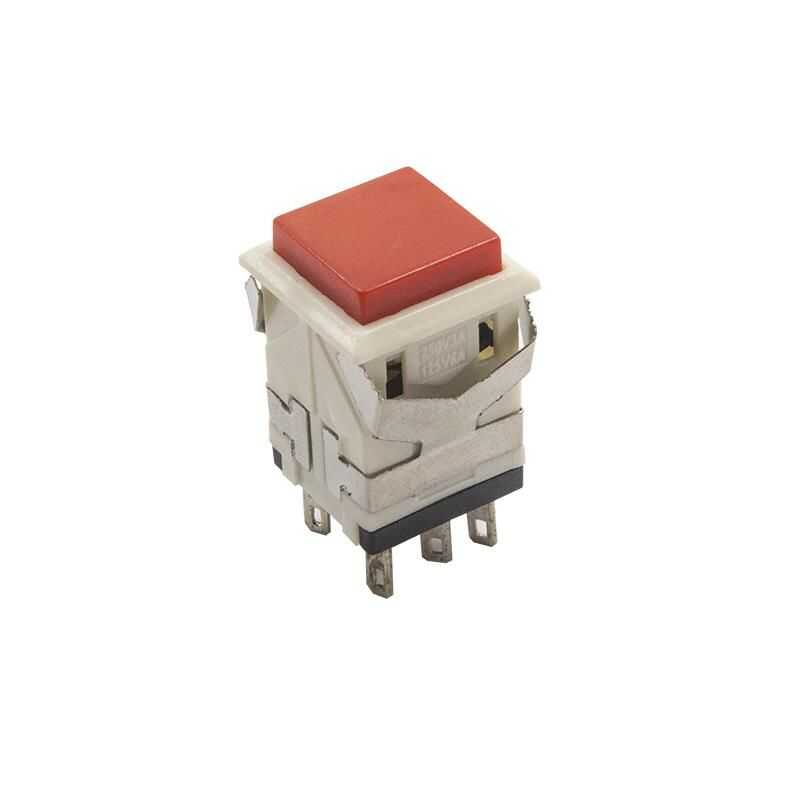

KD2-23 19mm Non-Illuminated Push Button with Switch - Red

When the Push Button with Switch is pressed, it will open and be in permanent state and will trigger a signal in this process, when pressed again the time signal will be activated. will be cut. It is an ideal keyed push button for your electronic applications.

Type: Keyed On -Off

Color: Red

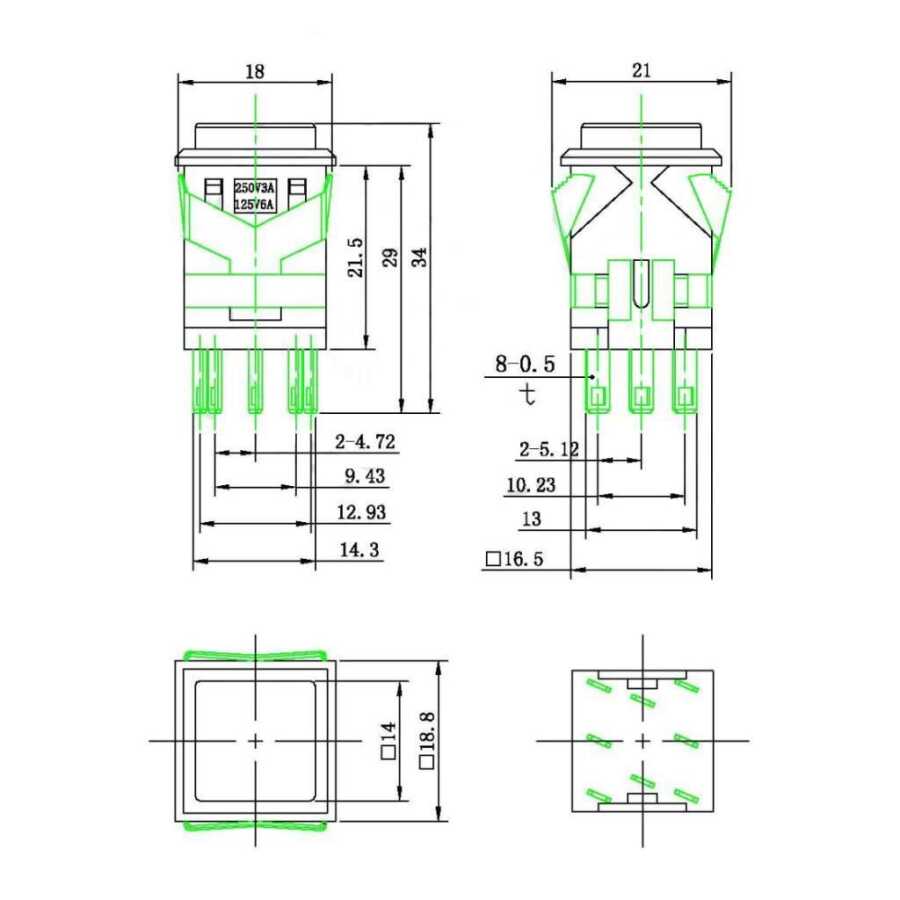

Exterior Square Size: 18.5x18.5mm

Panel Connection Cutting Dimension:17.2x17.2mm

Total Length: 34mm

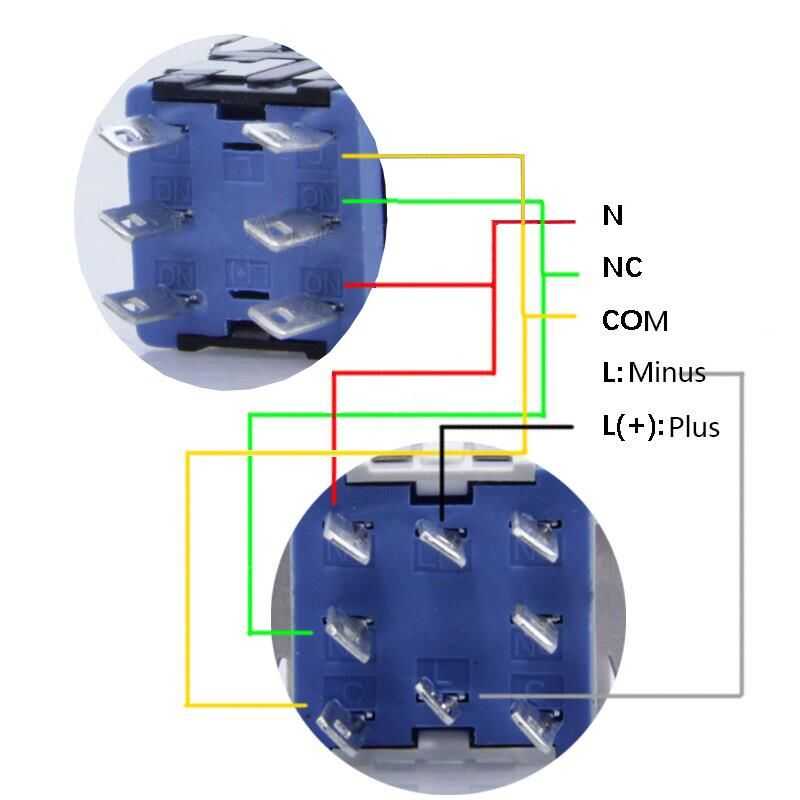

Terminal: 6pin

Current / Voltage: 3A 250VAC/6A 125VAC

Contact Resistance: 100mΩ max.

Electrical Life: ≥ 10,000 Cycles

Dielectric strength: 500VAC 1 minute

Operating Temperature: -25℃~+85℃

Insulation Resistance: 100mΩ min (500VDC)
