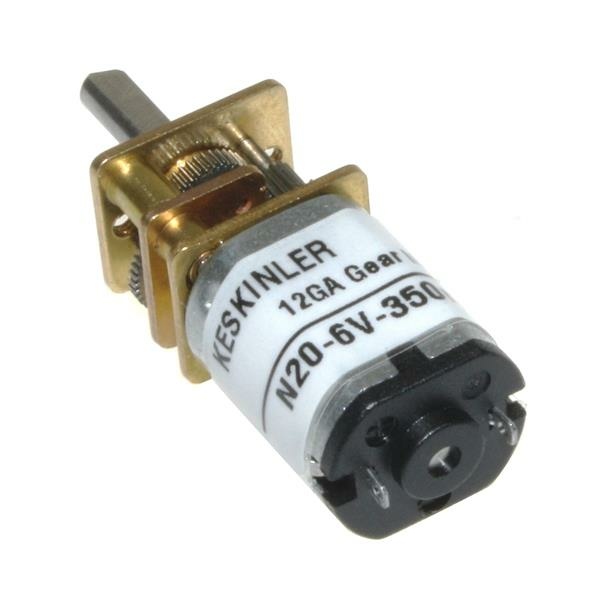

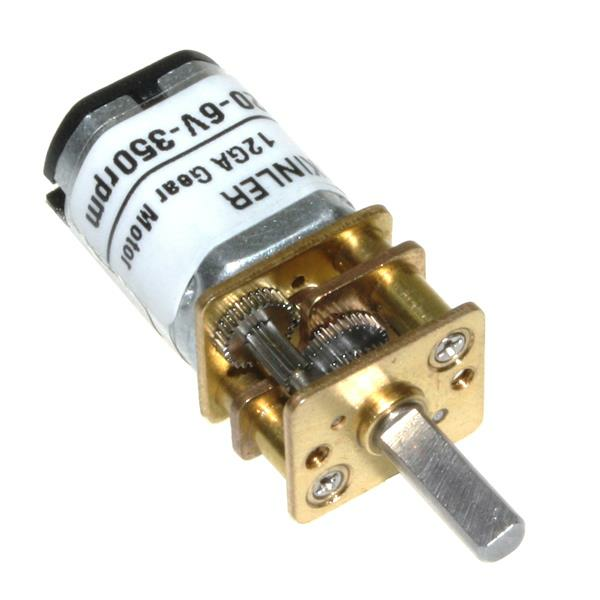

6V 350Rpm 12mm Gearmotor Dc Motor

DC It is a gearmotor with a speed of 350 Rpm at 6V. You can use it in various robot projects such as sumo robot, obstacle avoider, line follower, etc. in projects that require high torque. It can be operated at 6V and higher values.

Technical Specifications;

+ Working Voltage: 6V

+ Speed: 350 Rpm

+ Shaft diameter d shaft is 3 mm, shaft length is 9 mm.

+ Motor size is 16x12 mm.

+ Gear size is 12x10 mm.

+ Idle Current Drawn: 300 mA

+ Strain Current: 2.3 A

+ Weight is 12 g, total length is 35 mm.

technical drawing of the engine

KGA12 6V 350Rpm 12mm Geared Dc Motor
