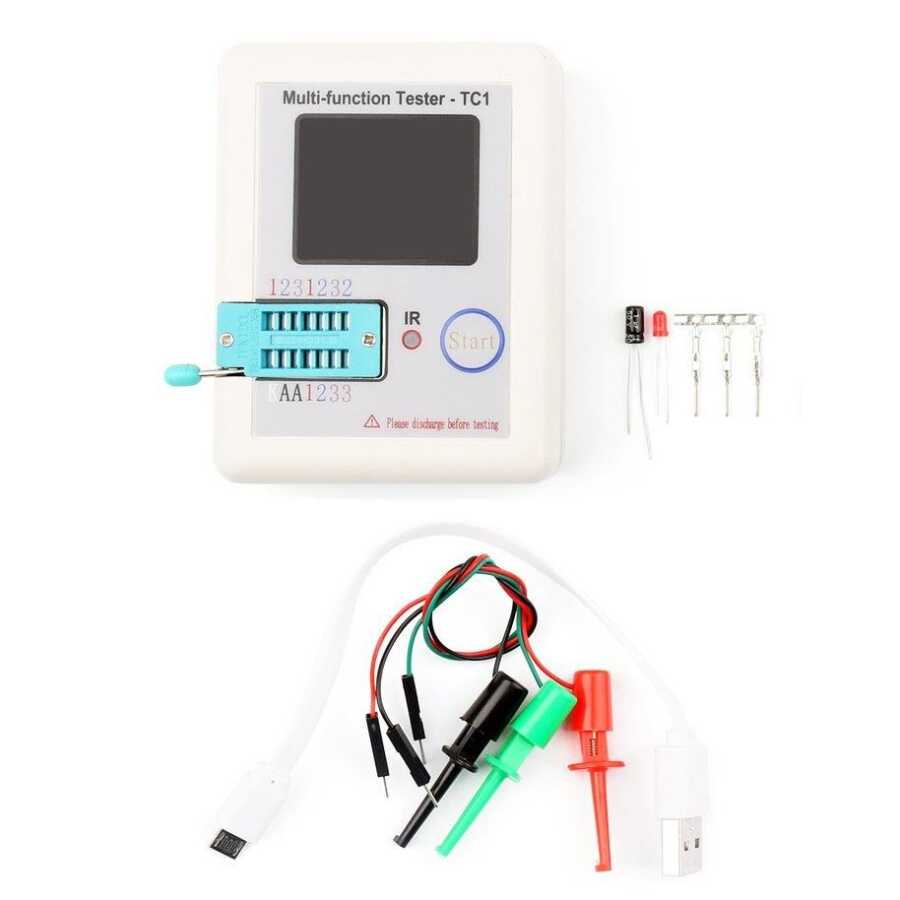

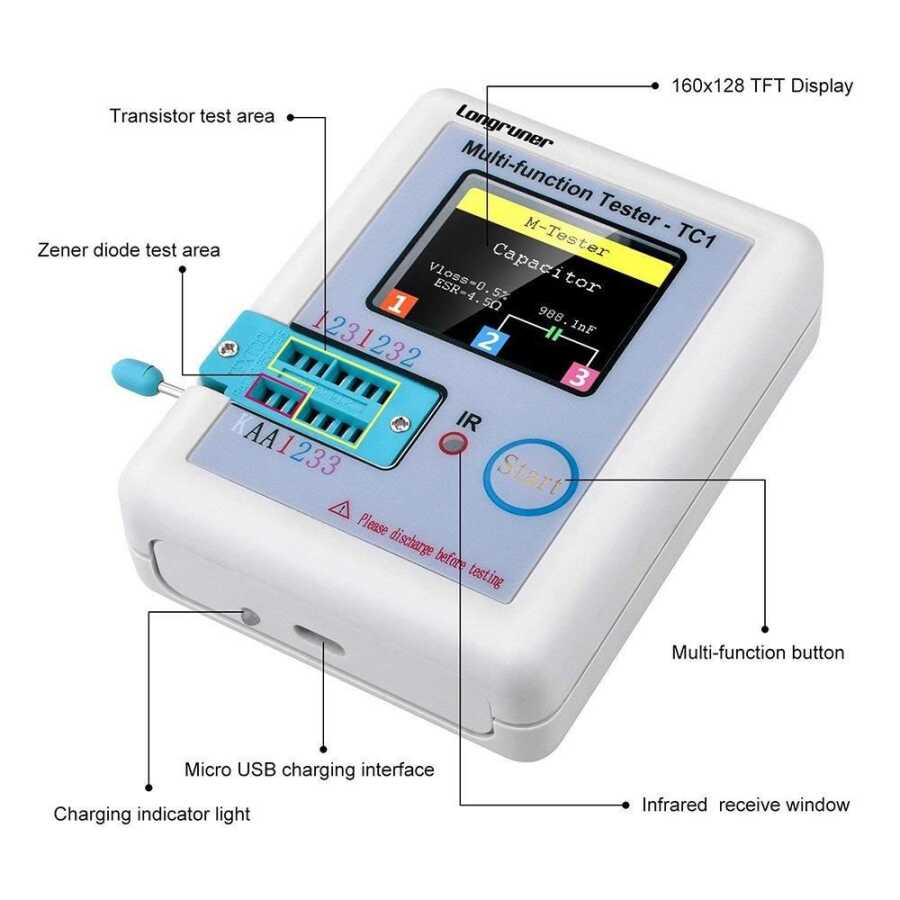

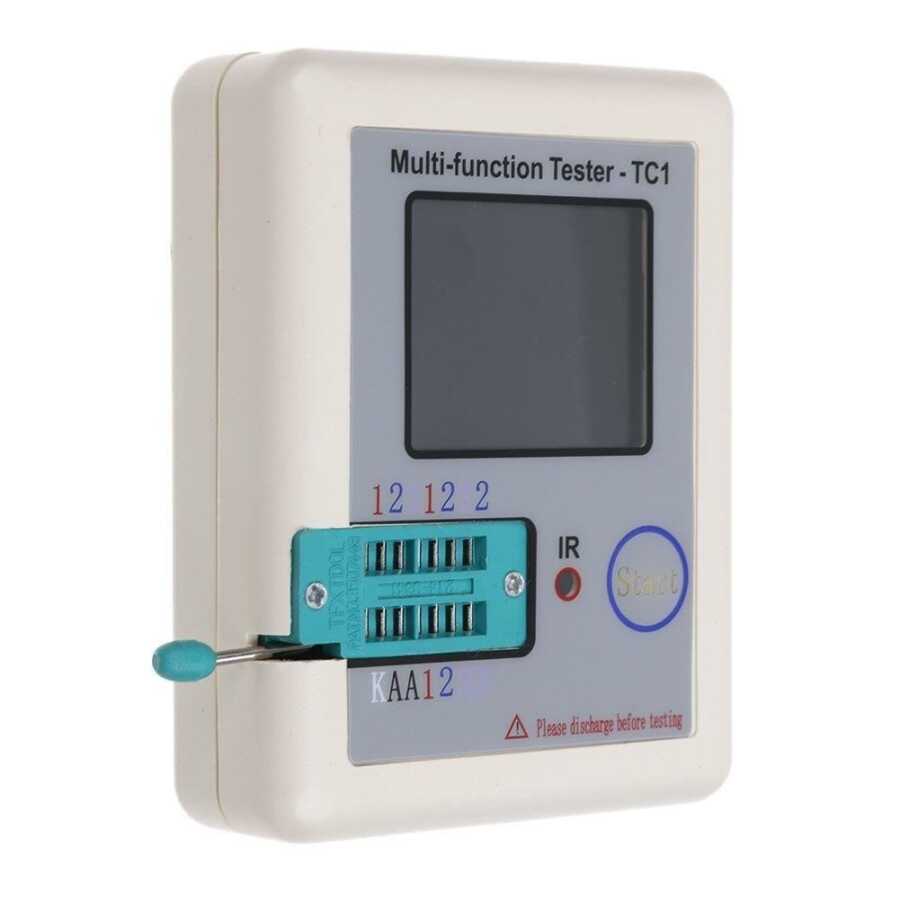

LCR TC1 Electronic Component Tester
CSI-TC1 is an easy-to-use electronic component tester that automatically detects component type. Simply insert the component into the socket (each leg of the component should be placed in a different number socket) and turn the locking lever down (or use test clips) and press the start button to detect and display information on the color LCD.
This electronic component tester can detect the following types of components:
- NPN and PNP transistors
- Capacitors
- Resistor
- Diodes (including zener diodes)
- Triodes
- N-channel and P-channel MOSFET
- IGBT
- JFET
- Triacs
- 0.1V ~ 4.5V battery voltage detection
- Also detects infrared waveforms
Specifications
- 1.8" Color LCD Screen
- 14-pin ZIFF socket
- IR Detector
- 3 Includes spring hook clips
CSI-TC1 Ranges:
- Diode Range: <4.5V
- Zener Diode: Transistor Detection Area: 0.01-4.5V
- Zener Diode Detection Area: 0.01-30V
- Triac Range: IGT <6mA
- Capacity: 25pF-100mF
- Resistance: 0.01-50MO
- Inductance: 0.01mH-20H
- Battery: 0.1-4.5 V
