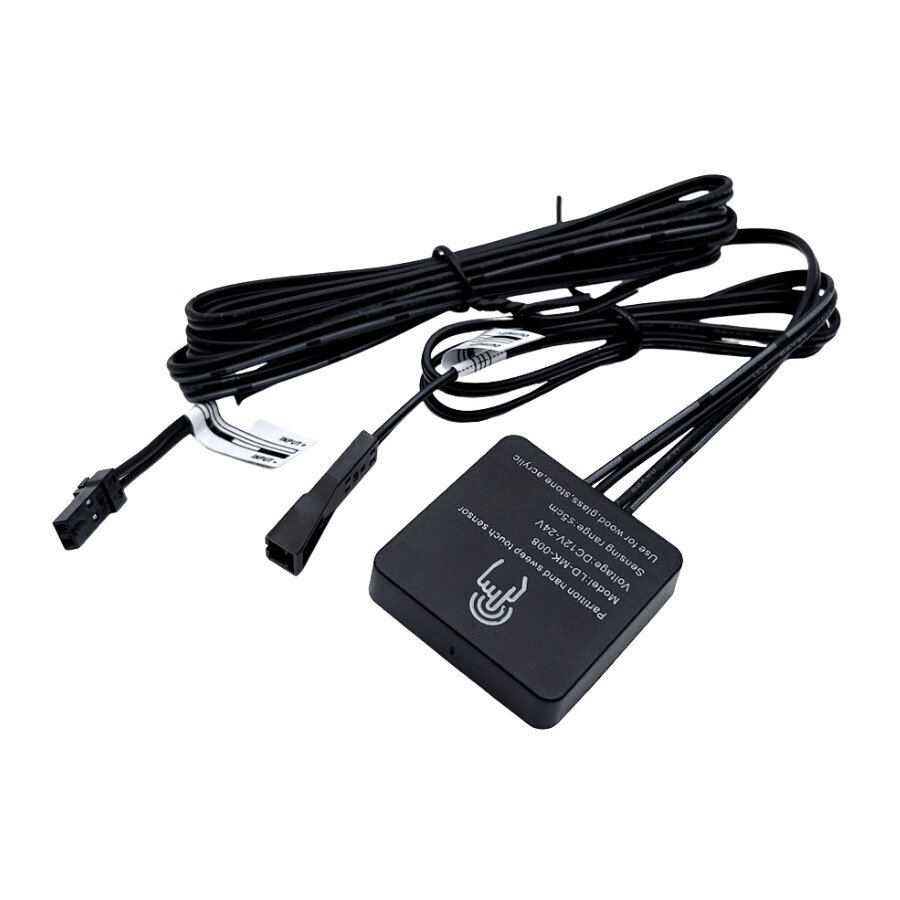

LD-MK-008 12-24V 5A Hidden Touch Cabinet Lighting Sensor - Black

LD-MK-008 12-24V 5A Hidden Touch Cabinet Lighting Sensor - Black

LD-MK-008 12-24V 5A Hidden Touch Cabinet Lighting Sensor - Black, designed for 12-24VDC LED lighting, allows you to turn lights on and off with its built-in sensor. It offers a practical and energy-saving solution for lighting inside wardrobes, kitchen cabinets, drawers, and furniture.

Thanks to its touch sensor, you can perform on/off functions with a single touch and increase/decrease the brightness of the LED light with a long touch.

It has double-sided adhesive tape. It can detect under wood, glass, and acrylic materials up to 50mm. This allows for easy and discreet use without opening a mounting hole.

Note:This product operates with 12-24VDC. It is absolutely not suitable for use with a direct mains (220V) connection. If it is to be used with a mains connection, a special power conversion module must be purchased.

Technical Specifications

• Operating Voltage: 12-24VDC
• Suitable LED Voltage: 12-24VDC
• Power: 12V 60W / 24V 100W

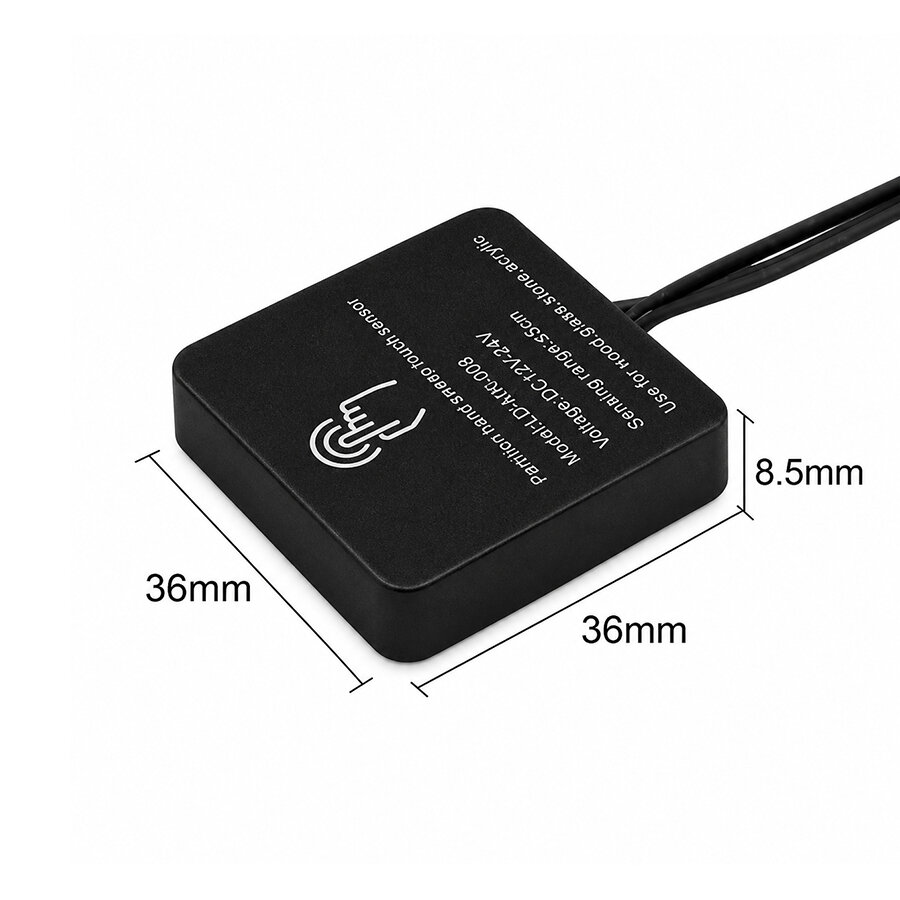

• Dimensions: 36x36x8.5mm
• Cable Length;
  • Input: 1.5m
  • Output: 50cm
• Detection Mode: Touch
• Detection Distance: 50mm

Installation Example

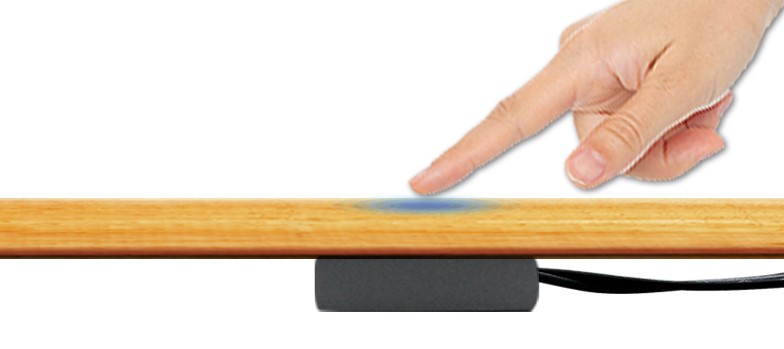

Usage Example
