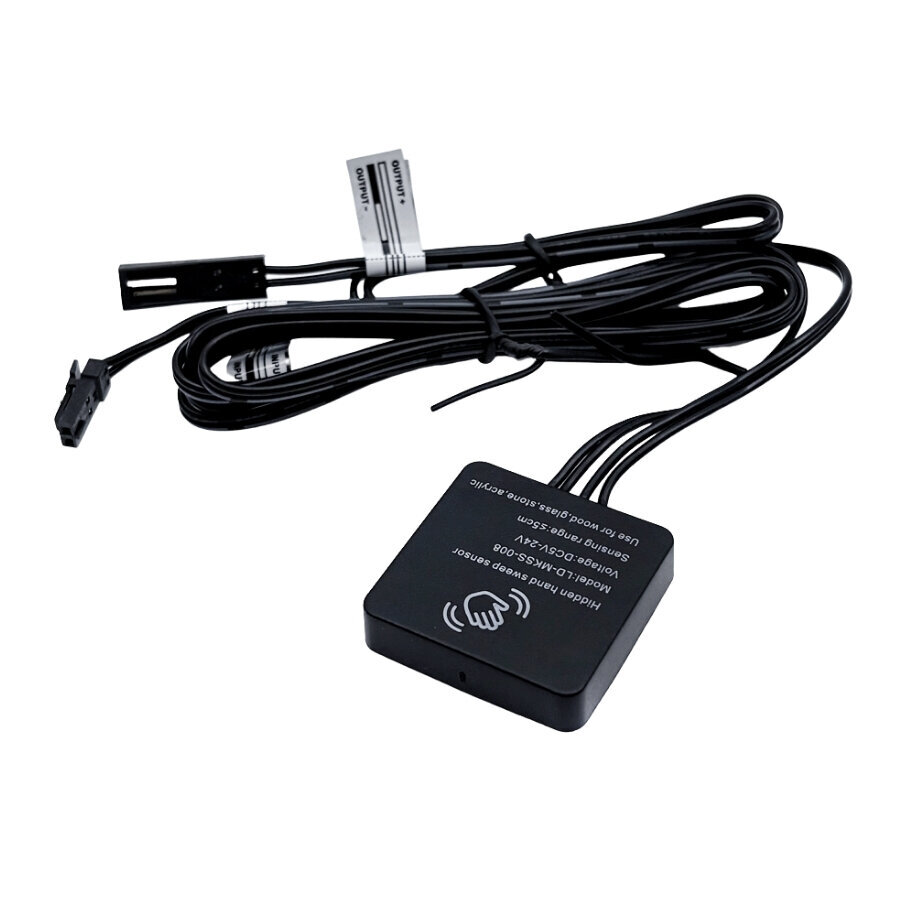

LD-MKSS-008 12-24V 5A Hidden Hand Sweep Cabinet Lighting Sensor - Black

LD-MKSS-008 12-24V 5A Hidden Hand Sweep Cabinet Lighting Sensor - Black

The LD-MKSS-008 12-24V 5A Hidden Hand Sweep Cabinet Lighting Sensor - Black , designed for 5-24VDC LED lighting, allows lights to be turned on and off with its integrated sensor. It offers a practical and energy-saving solution for lighting inside wardrobes, kitchen cabinets, drawers, and furniture.

Thanks to the hand detection sensor, you can perform the on/off functions by waving your hand at the sensor.

It has double-sided adhesive tape. It can detect under wood, glass, and acrylic materials up to 50mm. This allows for easy and discreet use without opening a mounting hole.

Note:This product operates with 5-24VDC. It is absolutely not suitable for direct connection to the mains (220V). If it is to be used with a mains connection, a special power conversion module must be purchased.

Technical Specifications

• Operating Voltage: 5-24VDC
• Suitable LED Voltage: 5-24VDC
• Power: 12V 60W / 24V 100W

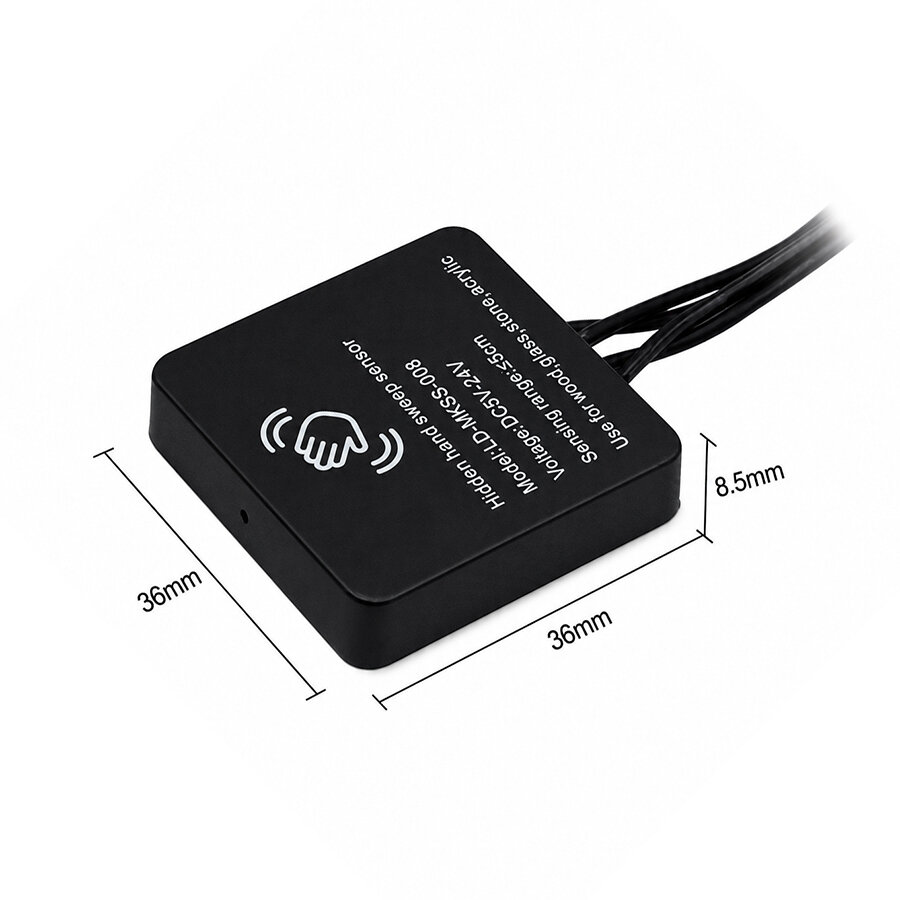

• Dimensions: 36x36x8.5mm
• Cable Length;
  • Input: 1.5m
  • Output: 50cm
• Detection Mode: Hand Detection
• Detection Distance: 50mm

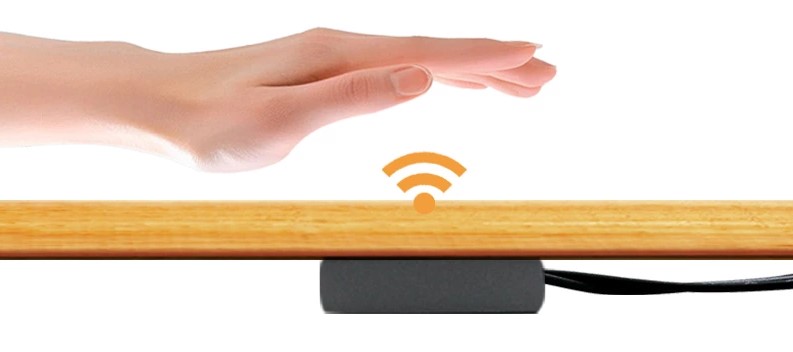

Installation Example

Usage Example
